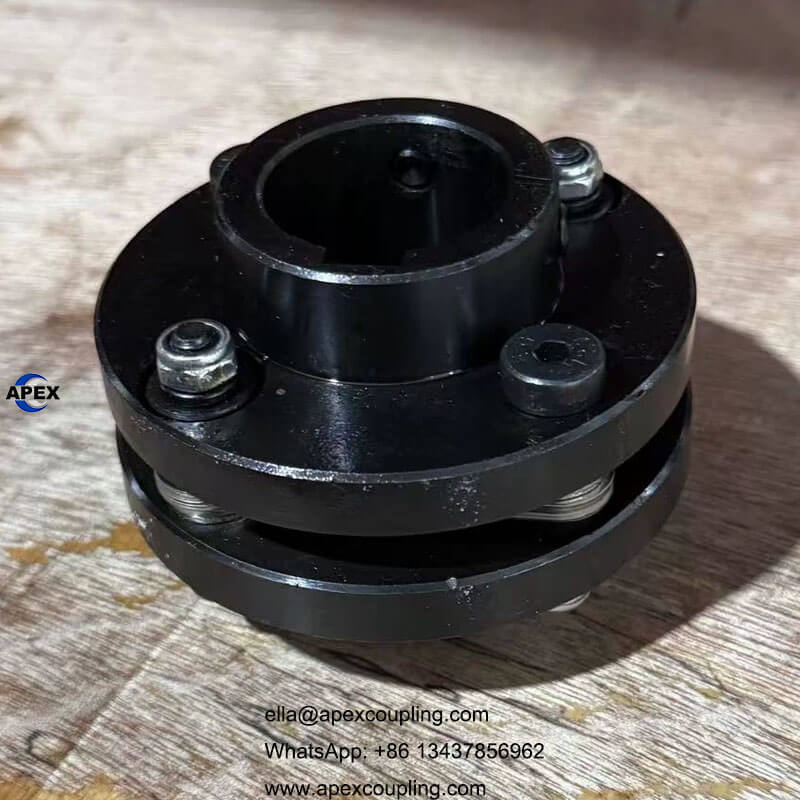

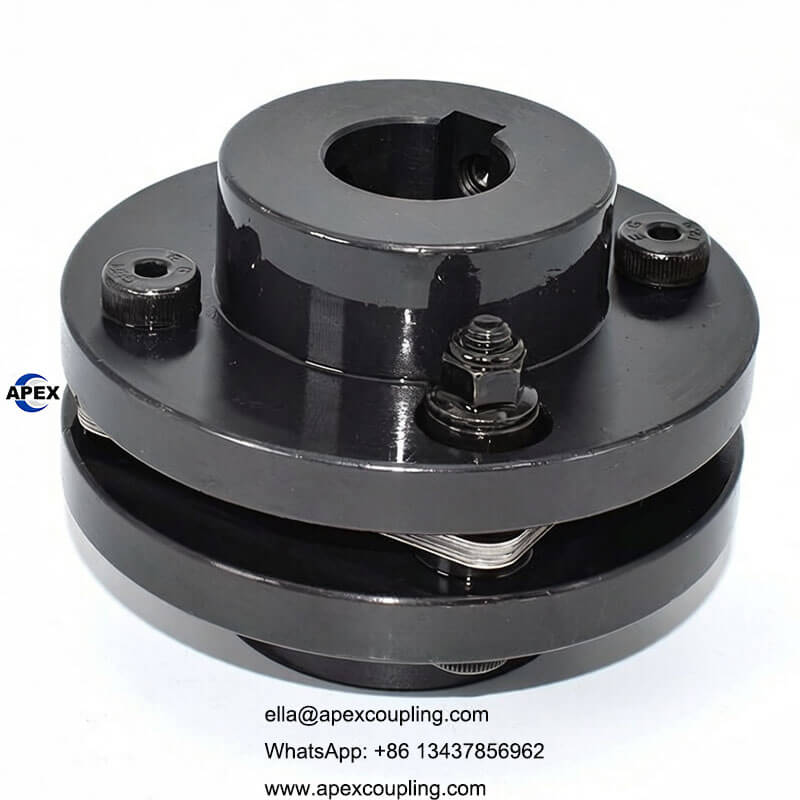

🔹 H1: DJMDBN51 Diaphragm Coupling – High Torque Stainless Steel Disc Coupling

The DJMDBN51 diaphragm coupling from Apexcoupling is a high-performance disc coupling designed for precision motion control and high-speed transmission systems. This stainless steel coupling combines the advantages of diaphragm technology with a locking assembly structure, ensuring reliable torque transmission and excellent stability.

As a professional diaphragm coupling manufacturer, we offer durable and customizable solutions for demanding industrial applications.

🔹 H2: What is a Diaphragm Coupling?

A diaphragm coupling (also known as a disc coupling) uses flexible metal discs to transmit torque while compensating for misalignment. Compared with traditional couplings, this disc coupling offers:

• Zero backlash
• High torsional rigidity
• Excellent fatigue resistance
• Maintenance-free operation

🔹 H2: Key Features of DJMDBN51 Diaphragm Coupling

• High torque transmission capacity
• Stainless steel diaphragm for durability
• Zero backlash for precision systems
• Suitable for high-speed applications (up to 20,000 RPM)
• Compact and lightweight design
• Reusable structure with overload protection (slip function)

This high torque coupling performs exceptionally well in dynamic and high-load environments.

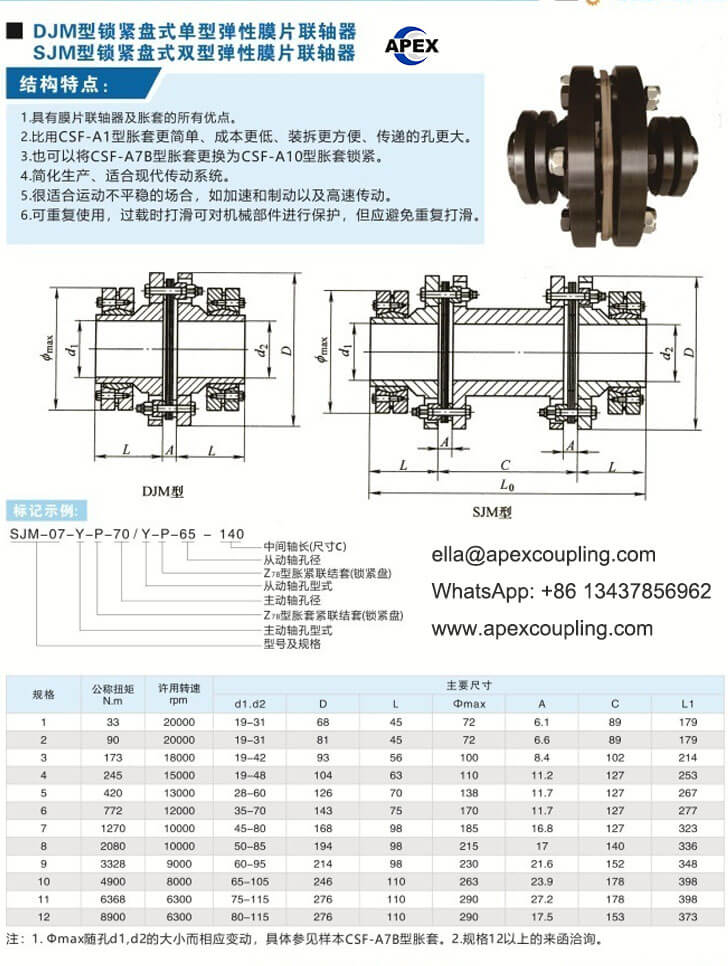

🔹 H2: Advanced Locking Assembly Design

This locking assembly coupling integrates diaphragm coupling with a shrink disc system:

• Easier installation compared to traditional expansion sleeves
• Lower cost and simplified structure
• Larger shaft bore capability
• Replaceable locking assemblies (CSF-A7B / CSF-A10 compatible)

This design improves installation efficiency and reduces maintenance complexity.

🔹 H2: Material & Precision

• High-quality stainless steel construction
• Corrosion-resistant and long service life
• High precision manufacturing for stable torque transmission
• Minimal deviation and smooth rotation

Performance Advantages

The DJMDBN51 diaphragm coupling is especially suitable for:

• High-speed transmission
• Frequent start/stop operations
• Acceleration and braking systems
• Unstable motion conditions

Its ability to handle dynamic loads makes it ideal for modern automation systems.

Applications

This stainless steel coupling is widely used in:

• CNC machines
• Servo motor systems
• High-speed machinery
• Metallurgical equipment
• Packaging machinery
• Semiconductor equipment
• Printing machinery
• Railway systems
• Automation production lines

Custom Diaphragm Coupling Services

We support full OEM & ODM customization:

• Shaft bore size customization
• Single diaphragm / double diaphragm options (DJM / SJM)
• Material and surface treatment options
• Special structural design

 Important Notice

⚠️ The coupling may slip under overload conditions to protect machinery.
Avoid repeated slipping to ensure long service life.

 Why Choose Apexcoupling?

• ✅ Source factory supply
• ✅ Competitive pricing
• ✅ Fast delivery
• ✅ Professional engineering support
• ✅ Exported worldwide

Get a Quote Today

Looking for a reliable diaphragm coupling manufacturer?

🌐 https://www.apexcoupling.com/
📩 ella@apexcoupling.com
📱 WhatsApp: +86 13437856962

Send your drawings or specifications now!
