Precision Torque Transmission: CPWW1 High-Strength Small Cross Universal Joint

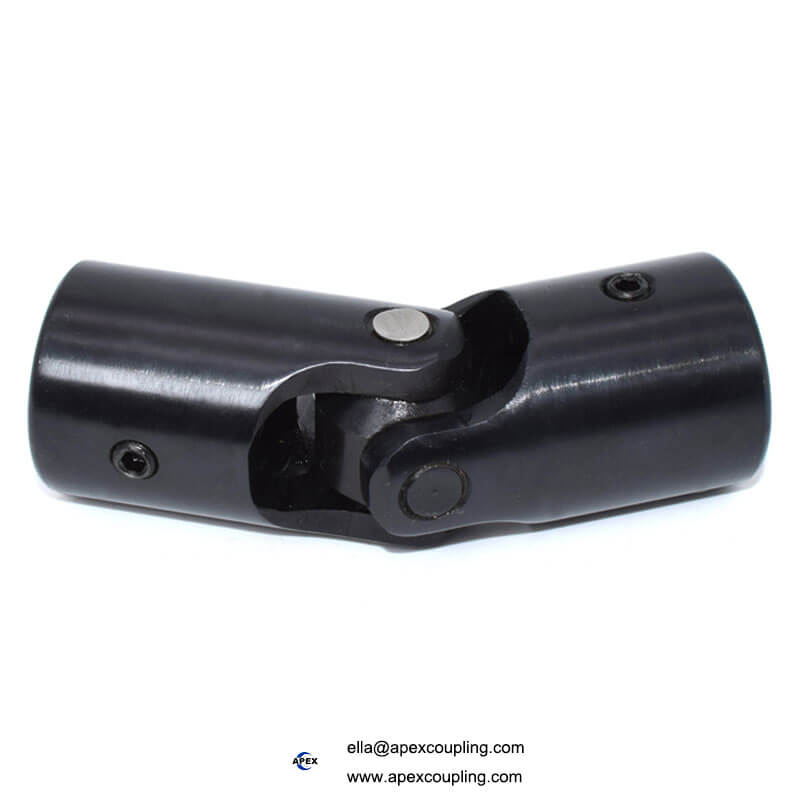

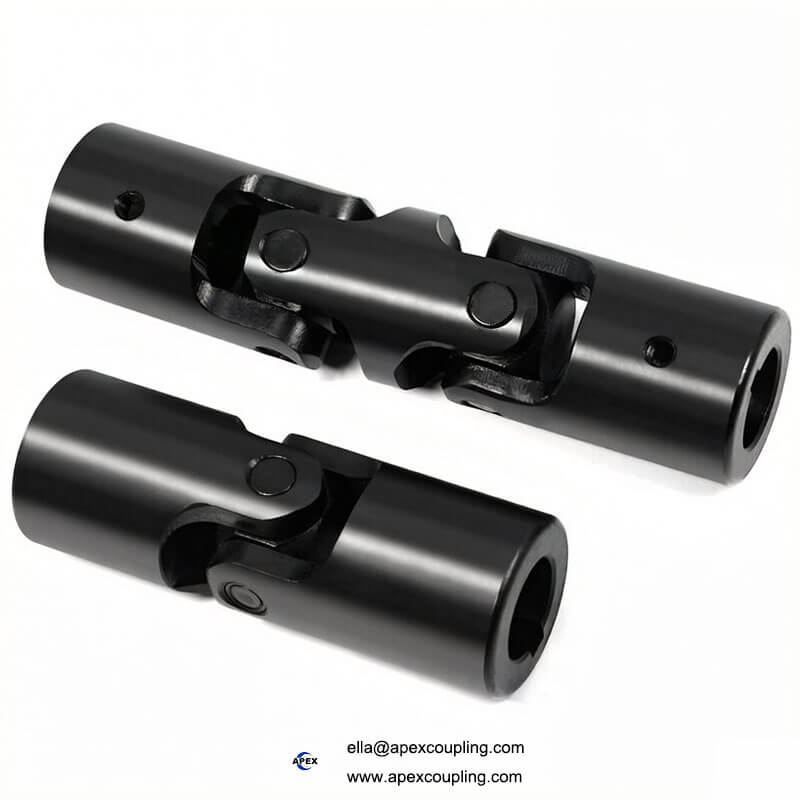

The CPWW1 Model Precision Small Cross Universal Joint Series provides a compact, industrial-grade solution designed to smoothly transfer rotational power across misaligned shafts. In precision drive mechanisms and textile automation, minor structural deflections can cause rigid couplings to bind, resulting in component wear. This small cross universal joint balances this stress by employing an ultra-reliable pin & block or needle bearing internal structure. It delivers smooth mechanical power transmission across an impressive maximum working angle of 45 degrees, safeguarding adjacent machinery components from rotational fatigue and uneven torque delivery.

As detailed in the technical specification profile in universal joint coupling, these precision-ground universal joints are machined from premium 42CrMo (42 crmo) alloy steel. To maximize longevity, each coupling undergoes an advanced Blackening surface treatment and is hardened to 50HRC. This robust model provides a standard 10mm Internal Diameter (ID) bore machined to a precise H7 tolerance, safely supporting a rated nominal torque capacity of 11.2 N·m.

Core Product Advantages / Unique Selling Points

• Premium 42CrMo Alloy Steel Structure: Forged from high-grade 42CrMo alloy steel to ensure superior core toughness and structural yield strength under cyclic load stresses.

• Advanced 50HRC Hardness & Blackening: Case-hardened to a durable 50HRC profile and coated with a corrosion-resistant black oxide surface treatment to maximize wear resistance.

• Flexible Pin & Block or Needle Bearing Internals: Available with standard pin and block mechanics or specialized needle bearings to support your exact speed and lifecycle criteria.

• Wide 45-Degree Angular Capacity: Easily compensates for significant geometric deviations and tight machinery constraints with a maximum operating angle up to 45 degrees.

• Precision-Ground H7 Tolerances: The standard 10mm ID internal bore is machined to tight H7 tolerances, preventing shaft runout, wobble, and vibrational backlash.

• Dual-Locking Secure Fastening: Utilizes a highly stable keyway AND setscrew tightening method to guarantee a slipsafe connection on motorized drive shafts.

• Globally Certified Manufacturing Quality: Expertly manufactured in Guangdong, China, fully backed by international ISO9001 and Bureau Veritas (BV) certificates.

• Extensive Hole Layout Customization: Full factory customization support for specialized shaft configurations, including keywayed, square, hexagon, and splined custom holes.

Technical Specifications Table
