CSCA / CSCW Stainless Steel Cardan Cross Shaft Universal Joint Coupling – Single & Double | Telescopic Option

Factory Direct from Dongguan, Guangdong, China | 42CrMo Alloy Steel / 304 Stainless Steel | Operating Angle 45° or 90° | Torque 4.5–1500 N·m | Up to 4000 rpm | H7 Precision Bore | ISO9001 & BV Certified

Product Overview

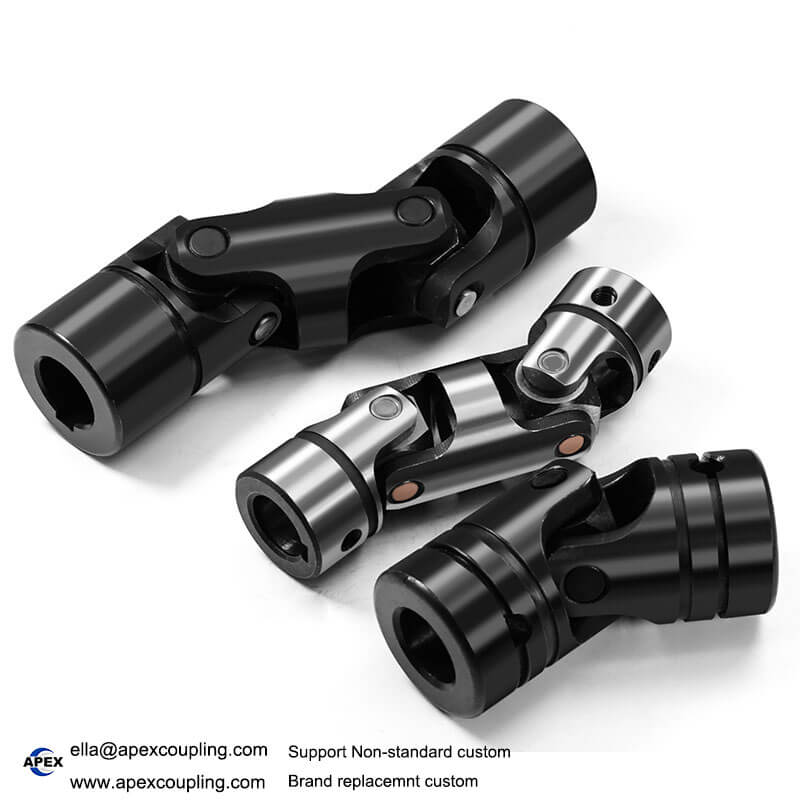

The CSCA / CSCW Stainless Steel Cardan Cross Shaft Universal Joint Coupling from Apexcoupling is a high-precision flexible coupling designed for transmitting torque between shafts at an angle. Manufactured in Dongguan, Guangdong, China, this universal joint coupling is available in single (CSCA) and double (CSCW) configurations, with an optional telescopic design for applications requiring variable shaft distances.

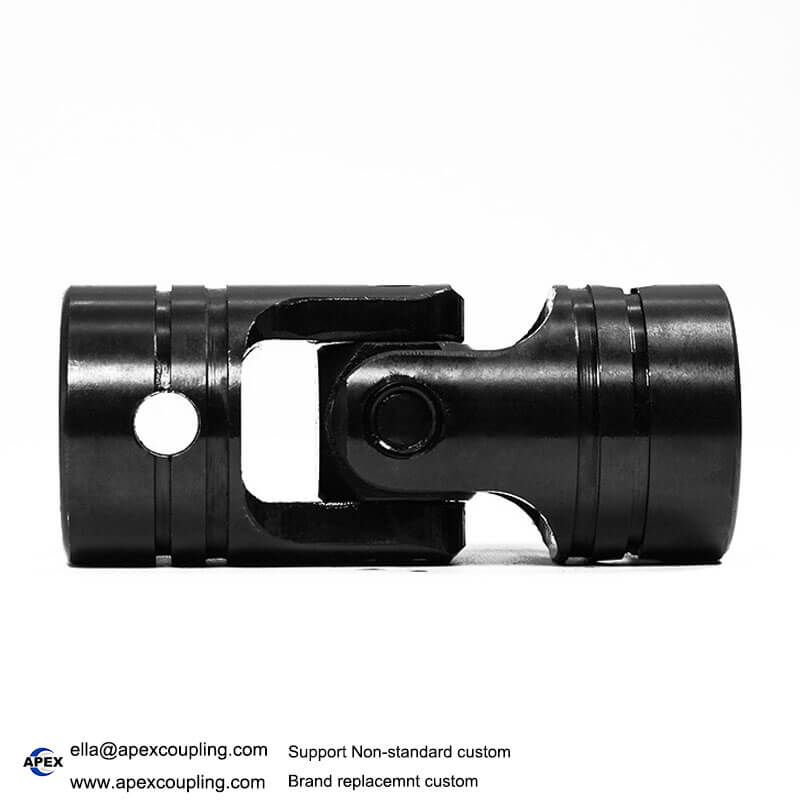

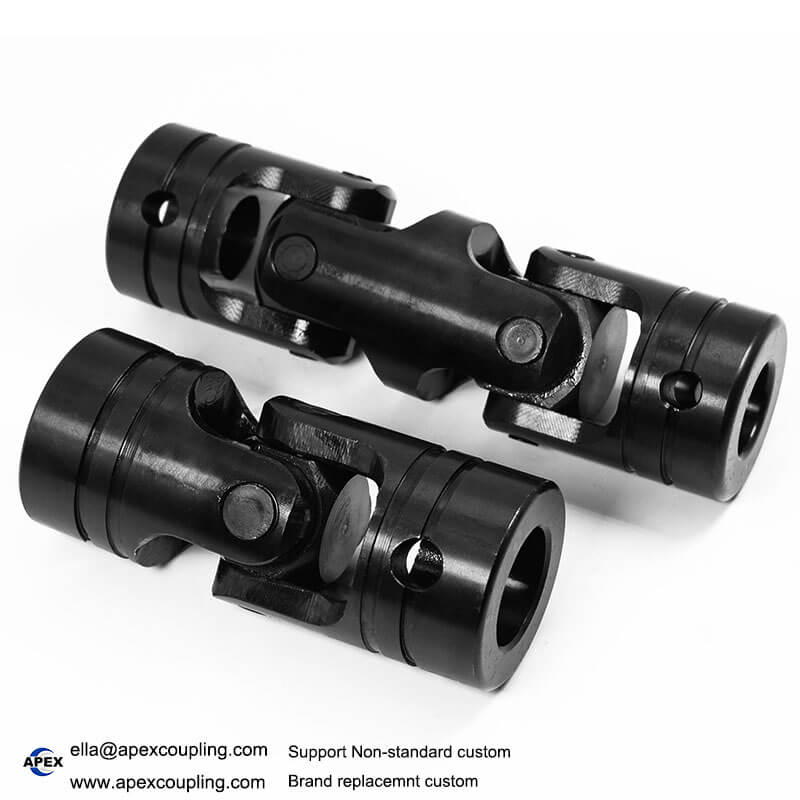

The coupling features a cardan cross shaft design with a built-in bearing and fixed pin inside the shaft sleeve, allowing continuous operation within 30° and a limit angle of 45° per joint (up to 90° for double joints). The standard material is 42CrMo alloy steel, with 304 stainless steel available for corrosion-resistant environments. The surface is conventionally blackened, and can be nickel-plated, zinc-plated, or polished as required.

With a bore diameter range of 4.5–1500 N·m nominal torque, a maximum speed of 4000 rpm, and H7 precision bore tolerance, this coupling delivers accurate transmission, fast response to clockwise and counterclockwise rotation, and high transmission efficiency. The FA factory automation standard design ensures a large amount of conventional stock is available for fast delivery.

Custom bore options include keyway, hexagon hole, and square hole, and both ends can be customized with spline shafts, optical shafts, pin holes, and other connection forms. Backed by ISO9001 and BV certification and a 1-year warranty, the CSCA/CSCW universal joint coupling is the reliable choice for machine tools, automation equipment, packaging machinery, and general industrial drives.

📧 Get a Quote: ella@apexcoupling.com

Key Attributes

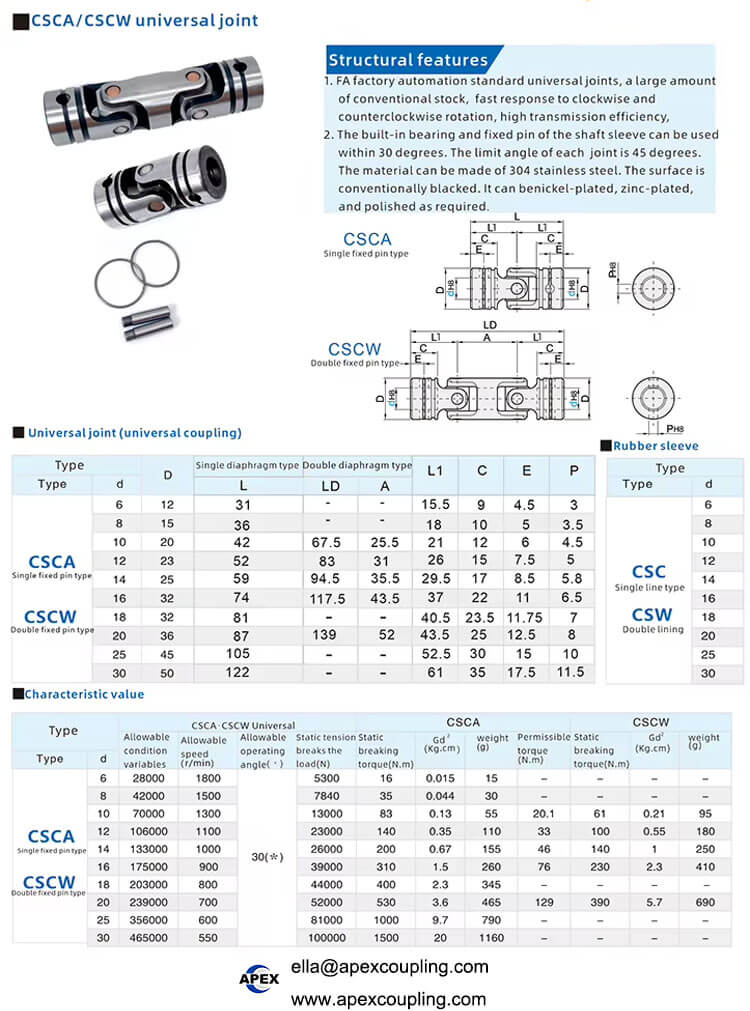

CSCA / CSCW Series – Structural Features

1. FA factory automation standard universal joints – large amount of conventional stock, fast response to clockwise and counterclockwise rotation, high transmission efficiency.

2. The built-in bearing and fixed pin of the shaft sleeve can be used within 30 degrees. The limit angle of each joint is 45 degrees.

3. The material can be made of 304 stainless steel. The surface is conventionally blacked. It can be nickel-plated, zinc-plated, and polished as required.

Key Features

Technical Specifications

Customization Options

Apexcoupling offers extensive customization for universal joint couplings:

• Custom series: CSCA (single), CSCW (double), telescopic

• Custom bore diameters and lengths

• Keyway, hexagon, square, and spline holes

• 42CrMo alloy steel, 304 stainless steel, and other materials

• Surface treatments: blackening, nickel plating, zinc plating, polishing

• Custom end connections: spline shaft, optical shaft + pin hole, flange, etc.

• Telescopic stroke lengths

• Drawing-based production

• OEM / ODM / OBM with your branding

📧 Send your drawing or requirements to: ella@apexcoupling.com

Applications

The CSCA / CSCW cardan cross shaft universal joint coupling is widely used in:

• Machine Tools – Milling, drilling, tapping, and engraving machines

• Factory Automation (FA) – Standard automation equipment, robotic arms, conveyors

• Building Material Shops – Conveyors, mixers, and processing equipment

• Manufacturing Plants – General industrial drive systems

• Machinery Repair Shops – Replacement and repair of universal joints

• Food & Beverage Factories – Hygienic and reliable drive connections

• Home Use – Small machinery, DIY equipment, and power tools

• Retail – Equipment maintenance and repair

• Construction Works – Light construction machinery and equipment

• Packaging Machinery – High-speed synchronous drives

• Printing Machinery – Registration and tension control systems

• General Industrial Drives – Where angular misalignment and reliable torque transfer are required

Why Choose Apexcoupling?

🏭 Factory Direct in Dongguan, China – Integrated manufacturing and trading, competitive pricing

🔩 Premium 42CrMo Alloy Steel – High strength, toughness, and wear resistance

⚙️ Built-in Bearing & Fixed Pin – Smooth operation and long service life

📐 Full Customization – Single, double, telescopic; keyway, hex, square, spline bores

🧾 ISO9001 & BV Certified – Quality and safety assurance

📦 FA Standard Stock – Large conventional inventory for fast delivery

✅ 1-Year Warranty – Quality assurance and reliable after-sales support

💬 Expert Technical Support – We help you select the correct coupling for your application

Get a Quote Today

Ready to order or need more information? Contact us directly:

📧 Email: ella@apexcoupling.com

We reply within 24 hours with pricing, availability, and technical recommendations.

Product Tags: CSCA CSCW universal joint coupling, cardan cross shaft coupling, stainless steel universal joint coupling, single double universal joint, telescopic universal joint coupling, 42CrMo universal joint, FA factory automation universal joint, custom cardan joint, precision universal joint coupling, Apexcoupling
