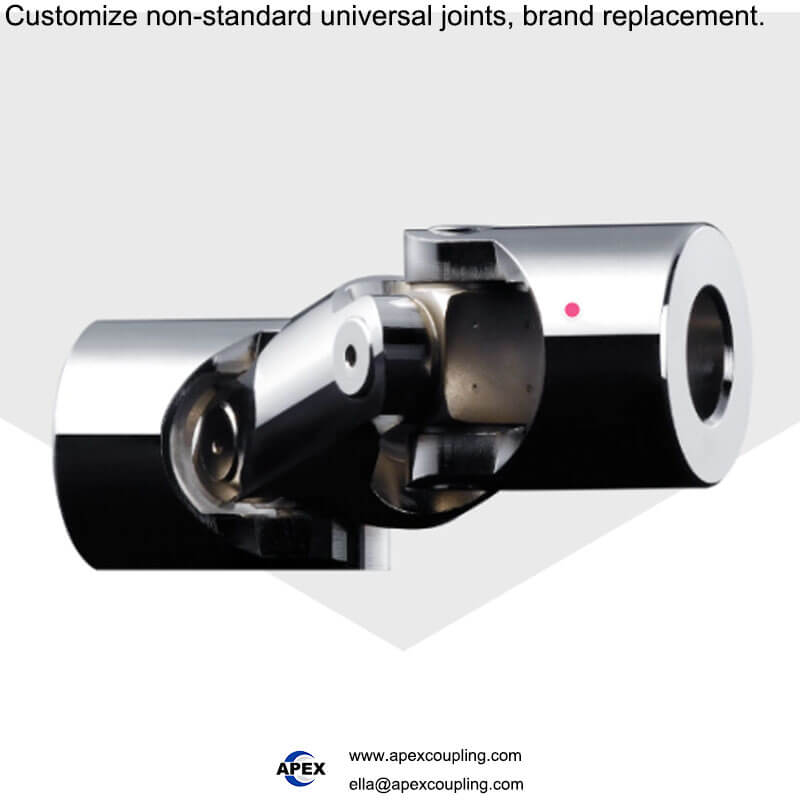

Precision universal joints (cardan shafts) are essential for transmitting power between shafts that are not perfectly aligned. The H/HD series from Apex Coupling offers needle bearing precision joints manufactured to DIN 808 standards – delivering maintenance-free operation at speeds up to 4000 RPM with 45° articulation per joint.

This guide explains how DIN 808 precision universal joints work, the advantages of needle bearing design, and how to select the right model for your application.

1. What Is a DIN 808 Precision Universal Joint?

A DIN 808 precision universal joint consists of:

• A joint center piece – precision-machined cross axis

• Two hub bodies – interlinked by straps

• Needle roller bearings – in the joint heads for low-friction operation

The coupling transmits torque through the cross axis while the needle bearings allow smooth angular movement. The needle bearings have permanent lubrication and do not require servicing.

💡 DIN 808 precision joints are known for their precision, minimal play, and long service life.

2. H Type (Single) vs HD Type (Double) – Which One Do You Need?

Rule of thumb:

• Use H type (single) for straight-line applications with slight angular misalignment.

• Use HD type (double) when shafts are both angled and offset – double joints have two bearings and are able to offset radial displacement in addition to angular displacement.

3. Needle Bearing vs Plain Bearing – Why Choose Needle?

✅ Needle bearing (H/HD) is the superior choice for high-speed applications – offering higher efficiency, maintenance-free operation, and speeds up to 4000 RPM. At inclination angles from 3° to 5°, needle bearings give universal joints a considerably higher degree of efficiency than those fitted with friction bearings.

4. DIN 808 Standard – Why It Matters

The H/HD series is manufactured to DIN 808 standards, which ensures:

• Consistent quality – standardized dimensions and tolerances

• Interchangeability – compatible with other DIN 808 compliant products

• Reliable performance – tested and proven design

• Global acceptance – recognized standard worldwide

💡 DIN 808 universal joints are known for their precision and are widely used in mechanical engineering applications.

5. Operating Speed – 4000 RPM Capability

The needle bearings of precision joints type H and HD limit the maximum permissible speed to 4,000 rpm. The permissible RPM of universal joints with needle bearings is higher than for those with friction bearings, but is still dependent on load, duration of use, and angular disposition.

Speed recommendation:

• 1000 RPM and below – Plain bearing (G/GD) may be suitable

• 1000–4000 RPM – Needle bearing (H/HD) is recommended

6. Operating Angle – 45° Per Joint

The maximum diffraction angle per joint is 45°. The angle between the two shafts is allowed to change within a limited range according to working needs.

7. Bore Options – Choose Your Connection

The H/HD series is available with:

💡 For bore holes with a feather key groove or square, they serve to secure the axial position of the universal joint and shaft.

8. Real‑World Example – High-Speed Packaging Line Upgrade

A packaging machinery manufacturer was experiencing premature wear and heat buildup with plain bearing universal joints operating at 2000 RPM. The joints required frequent lubrication and replacement, causing costly downtime.

They switched to Apex Coupling H series needle bearing universal joints (DIN 808, needle bearing, 4000 RPM, H7 bore). Results:

• Speed capability achieved – needle bearing handled 2000 RPM smoothly

• Maintenance eliminated – permanent lubrication – maintenance-free

• Friction reduced – needle bearings provided considerably higher efficiency

• Service life extended – case-hardened surfaces provided excellent wear resistance

• Downtime reduced – fewer replacements and no lubrication required

9. Installation & Maintenance Tips

1. Check alignment – Keep operating angles ≤45° for proper operation

2. No lubrication required – Needle bearings have permanent lubrication

3. Check for wear – Inspect joint center piece and hub bodies periodically

4. Bore fit – Use H7 shaft tolerance for best concentricity

5. Keyway alignment – For keyway bores, ensure proper key fit

6. Speed consideration – For speeds above 1000 RPM, needle bearing is recommended

10. Selection Checklist

• Type: H (single) or HD (double) – match your misalignment requirements

• Bearing: Needle bearing – maintenance-free, 4000 RPM

• Standard: DIN 808 – quality and interchangeability

• Bore: H7 – match your shaft diameter

• Bore option: Round, keyway, square, or hexagon

• Angle: Up to 45° – keep within limits for continuous operation

• Speed: Up to 4000 RPM – verify your operating speed

• Application: Packaging, woodworking, multi-spindle drills, CNC, automation

11. Conclusion

The H/HD series precision universal joint from Apex Coupling offers the perfect combination of DIN 808 quality, needle bearing performance, and high-speed capability for demanding industrial applications. With single or double joint options, 4000 RPM speed capacity, 45° angular flexibility, H7 bore precision, and maintenance-free operation, it is the ideal solution for packaging machinery, woodworking equipment, multi-spindle drills, and factory automation.

👉 Need a precision universal joint for your application? Contact us with your type, bore, and speed requirements.
