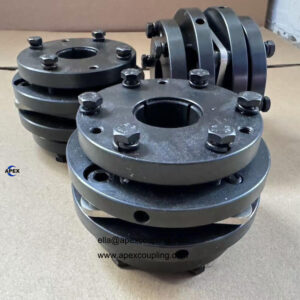

Introduction In the world of high-speed precision manufacturing, the connection between a servo motor and its load must be both rigid and flexible. The DBL41 double diaphragm coupling achieves this balance through superior material science and precision engineering.

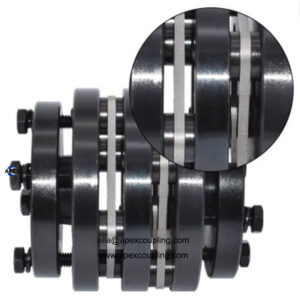

1. 304 Stainless Steel: The Core of Flexibility The heart of the DBL41 is its 304 stainless steel disc pack. Unlike solid couplings, these elastic diaphragms allow for slight radial, angular, and axial misalignments without putting undue stress on motor bearings. This durability ensures the system remains rust-free and reliable over millions of cycles.

2. Eliminating Backlash with Taper Sleeves Traditional keyway connections can develop play over time. The DBL41 utilizes an expansion or taper sleeve locking mechanism. This creates a 360-degree frictional grip on the shaft, ensuring zero backlash and high torque transmission—critical for applications requiring exact positioning.

3. 45# Steel and H7 Accuracy Precision starts with the housing. By using 45# quality round steel machined to H7 bore accuracy, our couplings maintain high concentricity. This reduces vibration and noise at high rotational speeds, protecting the delicate internal components of high-end CNC machines and robotic arms.

4. Factory-Direct Customization (Non-Standard) As a source factory, Apexcoupling understands that standard sizes don’t always fit every project. Whether you need a specific length, a unique bore diameter (up to 68mm), or a specialized DBL41 single diaphragm version with keyways, our team provides custom engineering solutions with fast turnaround times.

Power and precision in perfect harmony! ⚙️⚡

Upgrade your high-speed drives with the DBL41 Double Diaphragm Coupling. Engineered for Servo and Stepper motors, this coupling delivers the high torque and zero backlash your automation demands.

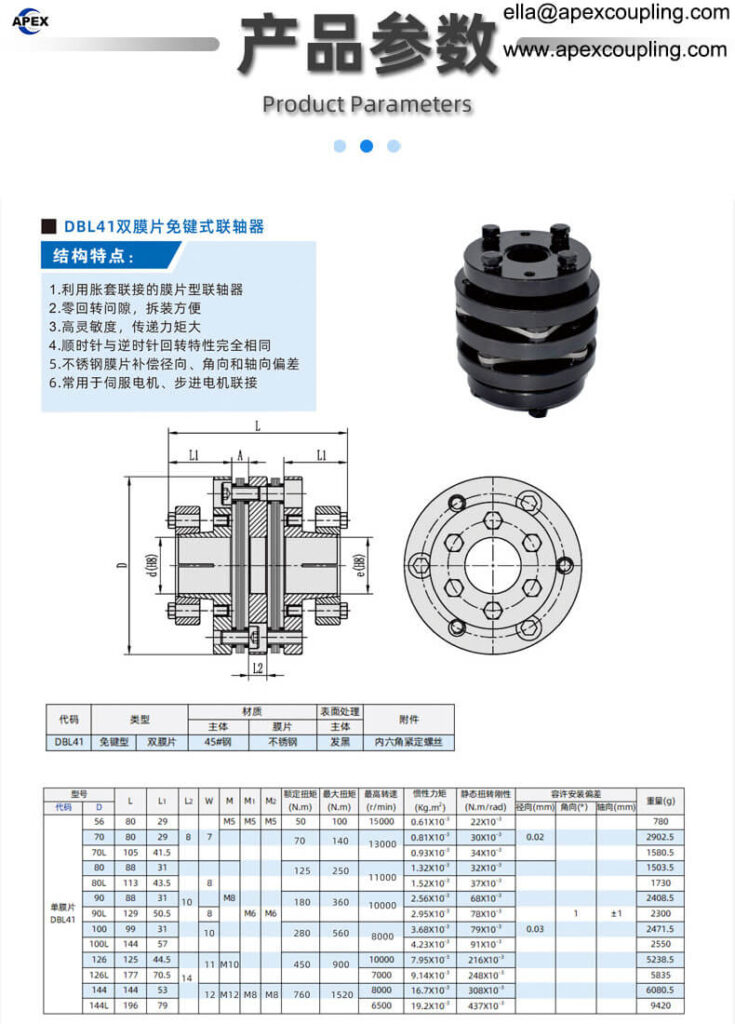

✅ Premium Materials: 45# Quality Steel body with 304 Stainless Steel disc packs. ✅ Extreme Speed: Stable performance up to 15,000 r/m. ✅ Precision Fit: H7 bore accuracy for perfect motor shaft alignment. ✅ High Torque: Rated for 420 N.m with zero rotational clearance. ✅ Custom Ready: Factory-direct support for taper sleeves, custom lengths, and non-standard bores.

Reliable, durable, and designed for silent operation. Apexcoupling keeps your production lines moving with professional-grade transmission solutions.

DM us for technical datasheets or a custom quote! 📥📦

Inquiry: www.apexcoupling.com
