Introduction In high-precision automation, multi-axis machining tools, and compact industrial drive systems, transferring rotational power around tight corners or through changing angles requires robust component engineering. When driving and driven shafts are positioned at an angle, using standard rigid couplings can cause severe vibration, shaft binding, and early bearing failure. Engineers resolve these layout challenges by specifying high-performance components like the WXD Series Precision Cross Universal Joint Couplings. This technical article explores how combining quenched 42CrMo alloy steel metallurgy with strict H7 manufacturing tolerances helps eliminate backlash and ensures smooth power transmission through complex shaft configurations.

1. Comparing Single and Double Section Cardan Joint Kinematics A primary decision when designing an articulated drive line is choosing between a single-section or a double-section universal joint. The choice depends entirely on the alignment error layout of your shafts.

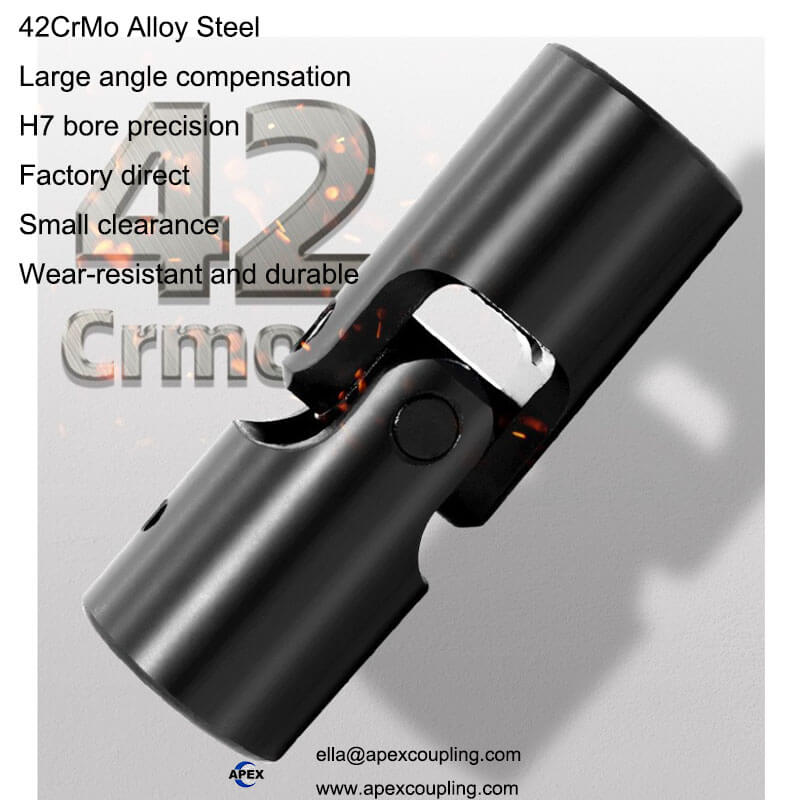

• Single Section Assemblies: Features a single cross-pin gimbal that allows smooth power transmission across angular misalignments up to 40°. This design has a low moment of inertia, making it ideal for compact angulated setups. However, single joints cannot accommodate parallel shaft offsets.

• Double Section Assemblies: Connects two distinct cross joints with a short center shaft. This setup allows the coupling to compensate for both angular variations and distinct parallel offsets simultaneously, providing greater layout flexibility for complex machinery builds.

2. Metallurgical Hardness: The Performance of Quenched 42CrMo Steel The internal cross pins and ears of a precision cross cardan joint face extreme concentrated forces and cyclic fatigue during operation. If built from low-grade carbon steels, these high-load areas wear down quickly, creating rotational play and timing errors. Fabricating the WXD series from high-density 42CrMo alloy steel followed by a precision quenching heat treatment significantly increases the material’s structural strength and core toughness. This allows the coupling to reliably handle high torque loads and resist repeated impact shocks without deforming or cracking.

3. Eliminating Harmonic Vibrations with H7 Bore Tolerances At higher operational speeds, even minor manufacturing deviations can cause noticeable vibration. If a hub bore is machined slightly oversized, the universal joint will mount slightly off-center. This small eccentricity creates high-frequency vibrations that stress adjacent motor bearings and gearbox seals. By maintaining a strict H7 internal hole tolerance, our universal joints deliver a tight fit and true concentricity. This close fit minimizes shaft runout, reduces vibration noise, and ensures smooth rotation.

4. Secure Clamping: Keyway Profiling and Set Screw Engineering Transferring torque reliably under reversing loads or high shock conditions requires a highly stable shaft connection. A loose fit can score the shaft and ruin the connection interface. The WXD series addresses this by using a reliable double-locking hub design:

• Precision Machined Keyways: Form a robust mechanical lock that transfers the bulk of the rotational force.

• Axial Set Screws (Top Wire Clamping): Tighten firmly down onto the shaft to prevent axial movement and keep the keyways securely aligned under continuous vibration.

5. Factory Direct Sourcing for Custom Industrial Requirements Automated equipment lines and custom machinery prototypes often require specific dimensions, non-standard internal diameters, or specialized overall lengths that catalog parts cannot match. Partnering directly with an established integrated manufacturer like Apexcoupling simplifies this process. As shown in the specifications outline in image_ba58c0.png, our advanced manufacturing plant specializes in fully custom orders—producing precise bore diameters, custom keyways, and outer diameters tailored exactly to your engineering prints.
