Leveling feet (also called adjustable machine mounts or leveling mounts) are critical components for ensuring the stability, precision, and longevity of industrial equipment. A poorly chosen leveling foot can lead to vibration, misalignment, equipment damage, and production downtime.

This guide explains how to select the right leveling foot for your application – covering load capacity, material, bearing type, adjustment range, and environmental factors – using the WAD51 series as a practical example.

1. What Is a Leveling Foot?

A leveling foot is an adjustable support mounted at the bottom of equipment or furniture. It typically consists of:

• A threaded stem – allows height adjustment

• A base – provides stable contact with the floor

• A lock nut – secures the set height

Leveling feet allow you to manually adjust the height and angle of a structure to ensure it stands level on uneven floors. They are essential for machinery, workbenches, medical equipment, and semiconductor manufacturing tools.

2. Key Selection Criteria

When selecting a leveling foot, consider these factors:

3. Material Selection – Why 304 Stainless Steel?

The WAD51 series features 304 stainless steel for both the body and bearing:

Recommendation:

• Choose 304 stainless steel (WAD51) for high-humidity, washdown, food, medical, or chemical environments.

• Choose carbon steel (WAD52/53) for dry, general industrial environments.

4. Thrust Bearing – Why It Matters

The WAD51 series features a thrust ball bearing at the bottom of the threaded stem:

• Easy adjustment under load – The bearing reduces friction, allowing smooth height adjustment even when the equipment is fully loaded.

• Lock nut securing – After adjustment, the lock nut prevents self-rotation under vibration.

• Corrosion-resistant – 304 stainless steel bearing for humid environments.

✅ Without a thrust bearing: Adjusting height under load is difficult and may require lifting the equipment. With a thrust bearing: Easy, one-person adjustment.

5. Load Capacity – How Much Do You Need?

The WAD51 series supports 1500kg static load per foot. To determine your requirement:

1. Calculate total equipment weight – Include all components, materials, and workpieces.

2. Divide by number of feet – For 4 feet, divide total weight by 4.

3. Add safety factor – Select a foot with capacity ≥ 1.5× the calculated load per foot.

Example: A 4000kg machine with 4 feet requires 1000kg per foot. With a 1.5x safety factor, select a foot with ≥1500kg capacity – the WAD51 is ideal.

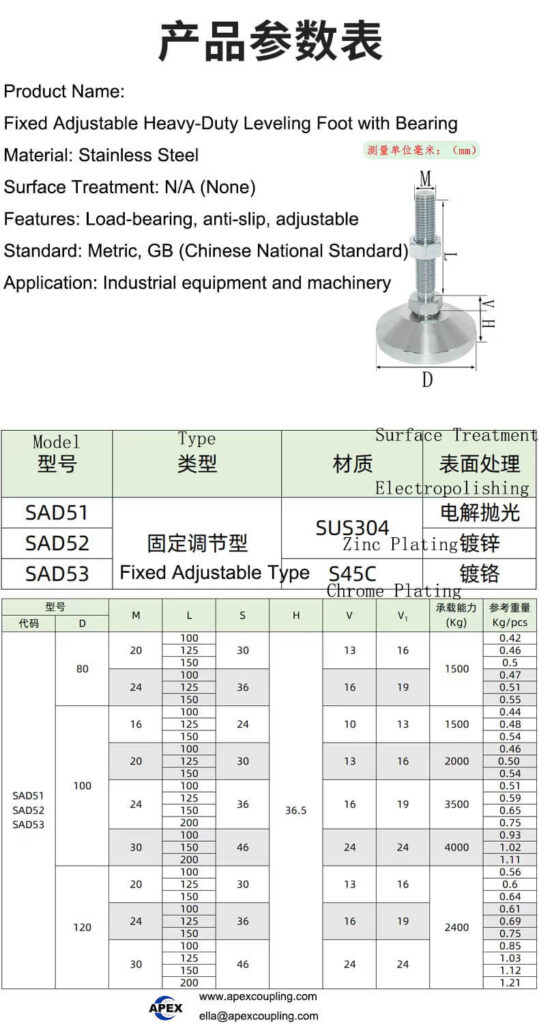

6. Thread Size Selection – M16, M20, or M24?

✅ The WAD51 series offers all three thread sizes – compatible with standard equipment mounting holes.

7. Base Diameter Selection – Stability vs Space

✅ Larger bases provide greater stability and load distribution – essential for heavy or vibrating machinery.

8. Applications Where Leveling Feet Excel

9. Real‑World Example – Semiconductor Equipment Upgrade

A semiconductor manufacturer was experiencing positioning drift on wafer inspection equipment due to vibration and unstable leveling feet. The existing carbon steel feet had rusted in the clean room environment.

They switched to Apex Coupling WAD51 leveling feet (304 stainless steel, thrust bearing, M16, D80, L100). Results:

• Positioning accuracy restored – stable, vibration-damped support

• Corrosion eliminated – 304SS withstood clean room humidity

• Leveling simplified – thrust bearing allowed easy adjustment under load

• Long-term stability – lock nut prevented self-rotation

10. Installation & Maintenance Tips

1. Clean mounting surface – Remove debris from equipment base and floor

2. Thread engagement – Ensure sufficient thread engagement (≥1.5× thread diameter)

3. Rough leveling – Adjust feet to approximate height

4. Precise leveling – Use a spirit level and adjust each foot with a wrench

5. Lock nuts – Tighten lock nuts against the base to secure height

6. Periodic inspection – Check for loosening, wear, or corrosion

7. Clean regularly – Wipe with a damp cloth – 304SS is easy to clean

11. Selection Checklist

• Load capacity: 1500kg per foot – ensure it exceeds your requirement

• Material: 304 stainless steel for corrosion resistance

• Bearing: Thrust ball bearing for easy adjustment under load

• Thread size: M16, M20, or M24 – match your equipment

• Base diameter: 60mm, 80mm, 100mm, or 120mm – stability requirement

• Length: 100mm, 125mm, 150mm – height adjustment range

• Environment: High humidity → 304SS (WAD51); Dry → carbon steel (WAD54-56)

12. Conclusion

The WAD51 heavy-duty leveling foot from Apex Coupling offers the perfect combination of corrosion resistance, easy adjustment under load, and high load capacity for demanding industrial applications. With 304 stainless steel construction, thrust ball bearing, 1500kg load capacity, and multiple size options, it is the ideal solution for medical equipment, semiconductor manufacturing, CNC machine tools, and industrial machinery.

👉 Need a leveling foot for your industrial equipment? Contact us with your thread size, base diameter, and load requirements.
