For decades, keyways have been the standard method for connecting shafts and hubs. But shrink discs (keyless locking assemblies) offer significant advantages in precision, maintenance, reliability, and equipment protection.

The CSF-A3S series from Apex Coupling is a keyless locking assembly available in S45C steel, electroless nickel plated, and SUS304 stainless steel – providing zero backlash, overload protection, and easy installation. This guide compares keyless locking with traditional keyways and explains why shrink discs are the smarter choice for modern industrial applications.

1. What Is a Keyless Locking Assembly (Shrink Disc)?

A keyless locking assembly (also called a shrink disc) is a friction-based mechanical device that connects a hub to a shaft without using keys or keyways. It consists of tapered inner and outer rings with high-strength clamping screws. When tightened, the rings are forced together, creating high radial pressure that locks the hub securely onto the shaft.

Key characteristics include:

• Zero backlash – No rotational clearance

• Keyless connection – No keyways, no shaft weakening

• Overload protection – Slips to protect equipment

• Reusable – Multiple installation cycles

• Easy installation & removal – No special tools required

2. Shrink Disc vs Keyway – Quick Comparison

3. Why Keyless Locking Outperforms Keyways

Reason 1: Zero Backlash
The shrink disc friction-lock connection has no rotational clearance – ensuring precise positioning for servo motors, CNC machines, and automation equipment.

Reason 2: No Shaft Weakening
Keyways create stress concentrations that reduce shaft strength. The shrink disc applies uniform radial pressure around the entire circumference – no shaft weakening.

Reason 3: Overload Protection
Under extreme overload, the shrink disc will slip, protecting connected equipment from damage – a feature impossible with keyways.

Reason 4: Easy Installation & Removal
No heating, cooling, or special tools – simply tighten screws to install, loosen screws to remove.

Reason 5: Adjustability
The hub can be positioned and locked at any point or angle on the shaft – ideal for precise positioning.

Reason 6: Reusability
The shrink disc can be disassembled and reinstalled multiple times without damage – reducing long-term costs.

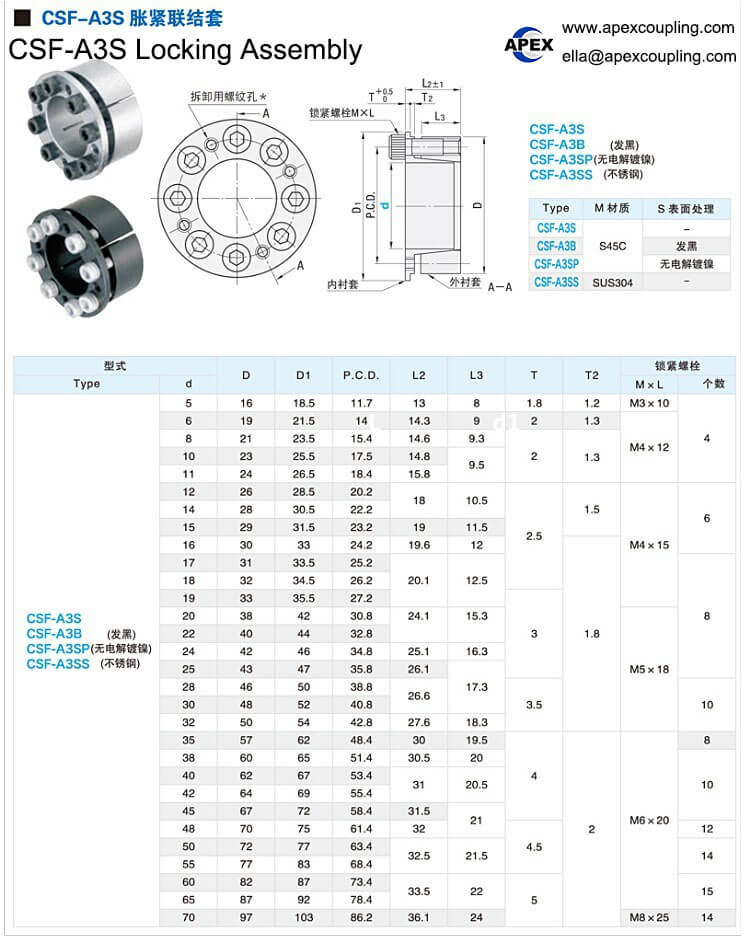

4. CSF-A3S Series – Multiple Material & Finish Options

✅ Choose CSF-A3SP for electroless nickel plating – a uniform, hard, and corrosion-resistant coating. Choose CSF-A3SS for maximum corrosion resistance with SUS304 stainless steel.

5. Direct MLM / Misumi Replacement

The CSF-A3S series is fully interchangeable with MLM / Misumi series:

• Same dimensions – drop-in replacement

• Same performance – meets or exceeds OEM specifications

• Better value – factory-direct pricing

✅ Upgrade without design changes – direct replacement for MLM / Misumi keyless bushings.

6. Applications Where Shrink Discs Excel

7. Real‑World Example – CNC Machine Upgrade

A CNC machine manufacturer was experiencing positioning errors and shaft damage due to keyway stress concentrations on their high-speed spindles. The keyways were causing backlash and requiring frequent shaft replacement.

They switched to Apex Coupling CSF-A3S shrink discs (S45C, black oxide, zero backlash). Results:

• Positioning accuracy improved – backlash eliminated

• Shaft damage eliminated – no keyway stress concentrations

• Installation simplified – no keyway fitting required

• Maintenance reduced – reusable design

• Cost savings – no more keyway machining

8. Installation & Maintenance Tips

1. Clean shaft and hub bore – Remove oil, grease, and debris

2. Pre-center the assembly – CSF-A3S is not self-centering

3. Slide shrink disc into position – Position at desired axial location

4. Tighten screws evenly – Use a torque wrench in a star pattern to specified torque

5. Check concentricity – Verify alignment after tightening

6. For removal – Use the pre-drilled removal thread holes – no pullers required

7. Reusable – Can be reinstalled multiple times

9. Selection Checklist

• Option: CSF-A3S (black oxide), CSF-A3B (black oxide), CSF-A3SP (nickel plating), or CSF-A3SS (304 stainless steel)

• Material: S45C forged steel or SUS304 stainless steel

• Finish: Black oxide, electroless nickel, or natural 304SS

• Bore: H7 tolerance – match your shaft diameter

• Overload protection: Yes – slips to protect equipment

• Reusability: Yes – multiple installation cycles

• MLM replacement: Direct drop-in replacement

• Application: CNC, packaging, semiconductor, printing, automation

10. Conclusion

The CSF-A3S series shrink discs from Apex Coupling offer superior performance compared to traditional keyways – with zero backlash, no shaft weakening, overload protection, easy installation, reusability, and multiple material options. With S45C steel, electroless nickel plating, or SUS304 stainless steel construction, and direct MLM / Misumi interchangeability, it is the ideal solution for CNC machine tools, food packaging, semiconductor equipment, and demanding industrial applications.

👉 Need a keyless locking assembly for your application? Contact us with your bore size, material preference, and application requirements.
