Introduction In high-dynamic automation fields—such as multi-axis pick-and-place robotics, rapid sorting conveyors, and modern CNC indexing heads—servo motors constantly start, stop, and reverse direction. In these systems, managing rotational inertia and backlash is critical. High inertia causes positioning lag and strains motor drives, while backlash introduces tiny accuracy errors that compound over time. Specifying an optimized, dual-material assembly like the DLZ Series Keyless Expansion Sleeve Jaw Coupling addresses both of these challenges. This technical article reviews how combining aviation aluminum metallurgy with integrated expansion sleeves and H7 tolerances ensures accurate positioning in high-speed drives.

1. Managing Low-Inertia Form Factors through Hybrid Metallurgy A common challenge when designing high-speed motion control lines is achieving adequate torque capacity without adding excessive weight to the drive shaft. Heavy components require more energy to accelerate, generating heat and reducing system efficiency.

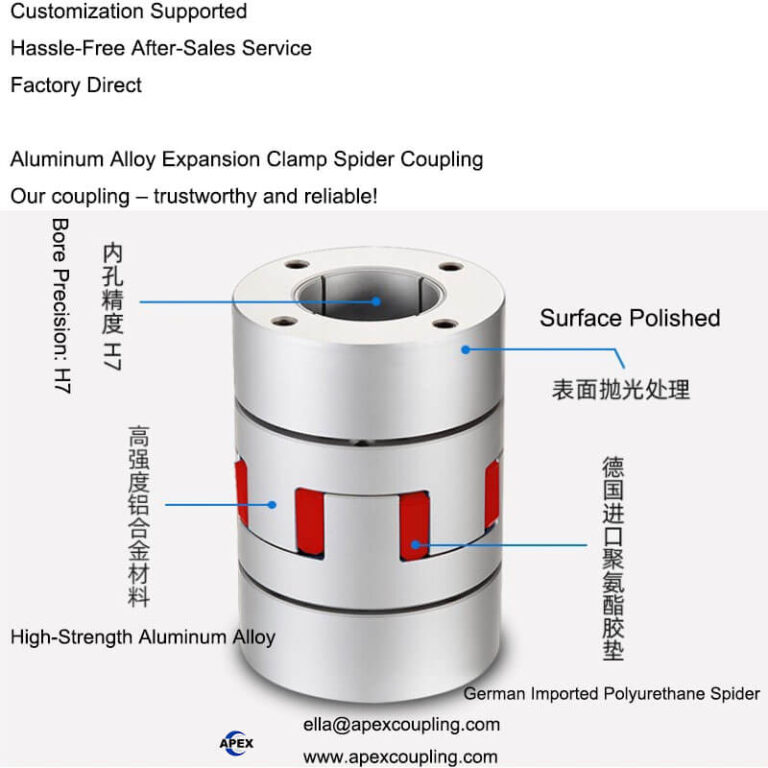

• The DLZ Solution: The DLZ series utilizes precision-machined aviation aluminum alloy hubs.

• High Strength-to-Weight Ratio: This aerospace-grade material provides the structural strength needed to handle high starting torques while significantly reducing rotational inertia. This allows servo systems to accelerate faster, shorten cycle times, and extend the lifespan of internal motor components.

2. Friction Clamping vs. Keyway Backlash Mechanics Traditional keyed shafts transfer rotational force through a single contact point along the side of the keyway. Under rapid reversing cycles, this concentrated stress can deform the metal key, creating tiny amounts of rotational play. The expansion sleeve mechanism replaces this setup by using a tapered matching wedge design. When the axial screws are tightened, the internal sleeve exerts a uniform, high-pressure clamping force across the entire 360-degree circumference of the shaft. This keyless friction connection completely eliminates mechanical play, ensuring true zero-backlash torque transfer.

3. Polyurethane Dynamics: Shock Absorption and Electrical Isolation To protect sensitive electronics, high-speed encoder lines must be isolated from stray electrical currents and high-frequency structural vibrations. The DLZ series achieves this by separating the two metal hubs with an advanced German-imported polyurethane star insert. This element acts as a reliable mechanical damper, absorbing motor harmonics and smoothing out sudden torque spikes. Additionally, the non-conductive polyurethane composition provides excellent electrical insulation, protecting digital control loops from static build-up and voltage leaks.

4. Ensuring Concentric Alignment with H7 Bore Tolerances At high operational speeds, even minor centering errors can create significant vibration. If an internal bore diameter varies by just a fraction of a millimeter, the coupling mounts slightly off-center. This eccentricity causes shaft runout, generating cyclic forces that damage bearings and seals. By maintaining a strict H7 finished hole tolerance, our jaw couplings ensure a precise, well-balanced fit onto metric shafts. This level of precision minimizes runout, controls noise, and preserves system accuracy across long production runs.

5. Factory Direct Customization with Apexcoupling Every industrial automation system and custom prototype line has unique spacing limitations, specialized shaft configurations, or stepped metric-to-imperial requirements. Off-the-shelf parts often require secondary machining, which can introduce centering errors and imbalance. Partnering directly with an established integrated factory like Apexcoupling simplifies this sourcing process. Operating out of our advanced plant in Guangdong, China, our teams provide full OEM and ODM services, manufacturing customized lengths, non-standard outer diameters, and specialized bore tolerances built exactly to your engineering prints.
