Introduction In heavy industrial drivetrains—especially within steel rolling mills, paper manufacturing plants, and heavy marine winches—couplings must transfer immense, continuous torsional loads across misaligned rotating shafts. Traditional split-yoke universal joints can develop micro-movement around their bolted bearing caps over time, accelerating wear and risking failure under heavy peak shocks. For these high-load setups, specifying a heavy-duty mechanical link like the SWC-BH Single Structure Integral Fork Head Universal Shaft Coupling solves these common drivetrain challenges. This technical paper reviews the structural characteristics of single integral cardan joints and explores how alloy steel metallurgy and a one-piece fork architecture maintain smooth torque transfer under demanding conditions.

1. The Mechanical Advantage of the One-Piece Integral Fork Head The key difference between standard industrial universal joints and the SWC-BH model is the geometry and manufacturing of the yoke housing. Many heavy couplings rely on a two-piece split yoke held together by high-tensile fasteners. While easier to manufacture, these split joints can deflect under heavy loads, stretching the fasteners and leading to premature bearing failure.

• Unified Housing Design: The SWC-BH series features an integral fork head design where the entire yoke structure is forged as a single, continuous piece of steel.

• Superior Structural Rigidity: This solid profile eliminates bolted-joint weaknesses, providing maximum structural stiffness to distribute stress evenly across the cross shaft bearing assembly.

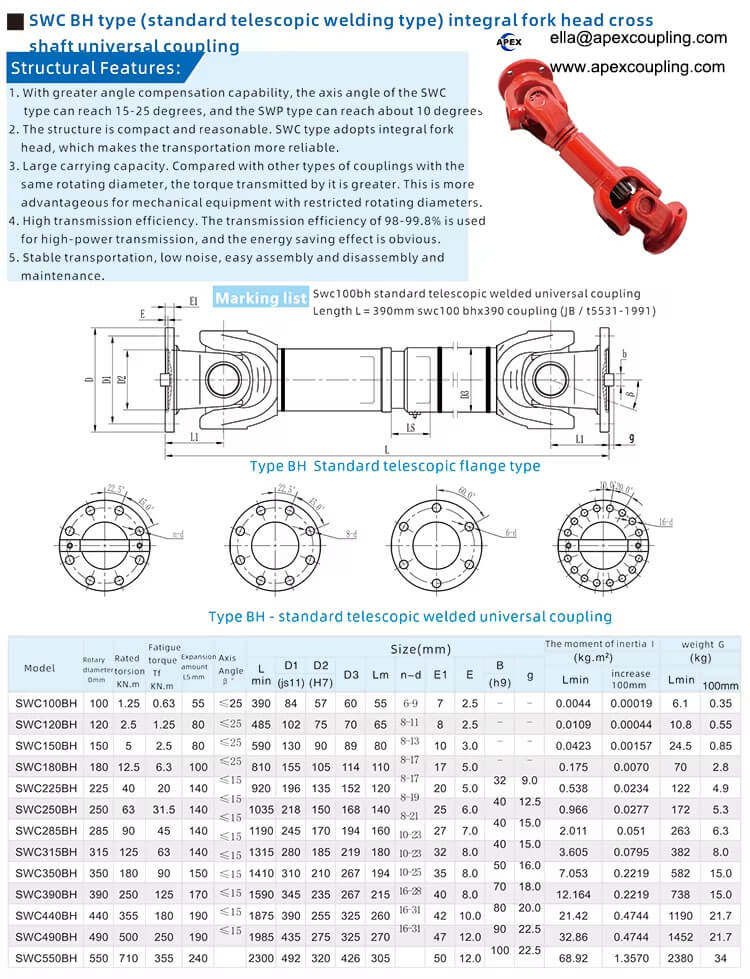

2. Kinematics of Single Structure Misalignment Compensation As detailed in the technical specifications in image_0e57bf.png, this specific coupling utilizes a Single structure layout. While double cardan assemblies use an intermediate shaft to compensate for parallel offsets, a single cardan coupling is optimized for applications requiring direct angular deflection up to <22 degrees within a short overall footprint. The phased precision-ground cross shaft journal allows smooth power transfer across non-collinear paths, preventing the binding common in lower-grade components.

3. Metallurgy Built for Heavy Industrial Loads Operating a coupling in a steel rolling mill exposes it to massive continuous loads and sudden torque spikes. To withstand these forces, our universal shaft couplings are constructed from high-grade Alloy Steel combined with hardened steel cross pins. This heavy-duty metallurgical combination allows the SWC-BH single series to safely handle nominal torque ratings ranging from 0.18 all the way up to 710 KN.m (710,000 N·m). To protect the core steel housing against mill scale, moisture, and chemical exposure, the exterior receives a durable, heavy industrial painted surface treatment.

4. Cost Reductions Through Elite Energy Efficiency (98%–99.8%) In high-power industrial applications, minor friction losses can quickly add up to significant energy waste and excess heat generation. The SWC-BH model features a highly efficient internal cross assembly that achieves an elite transmission efficiency rating of 98% to 99.8%. This near-frictionless operation keeps power loss to an absolute minimum, lowering operating temperatures and delivering measurable energy savings over extended service intervals. Backed by precision machining, the entire assembly operates with low running noise and minimal vibration across its entire speed range up to 4000 r/min.

5. Factory Direct Sourcing and Custom Engineering with Apexcoupling Heavy equipment overhauls and custom industrial machinery often require precise modifications, including specific metric flange patterns, custom overall lengths, or specialized paint systems to withstand harsh environments. Sourcing these tailored parts through multi-tier distribution networks can introduce long lead times and high markups. Sourcing directly from an established integrated manufacturer like Apexcoupling simplifies your procurement process. Operating out of our advanced plant in Guangdong, China, our teams provide comprehensive OEM, ODM, and OBM custom services with an accessible 1 Pcs MOQ—delivering durable cardan shafts built precisely to your technical prints.
