Elastomeric couplings (tire couplings) are essential for power transmission in applications requiring shock absorption, vibration damping, and misalignment compensation. The E-Type OMEGA coupling from Apex Coupling offers a unique split-in-half element design for radial installation – significantly reducing maintenance time and downtime.

This guide explains how elastomeric couplings work, the advantages of the OMEGA design, and how to select the right model for your application.

1. What Is an Elastomeric OMEGA Coupling?

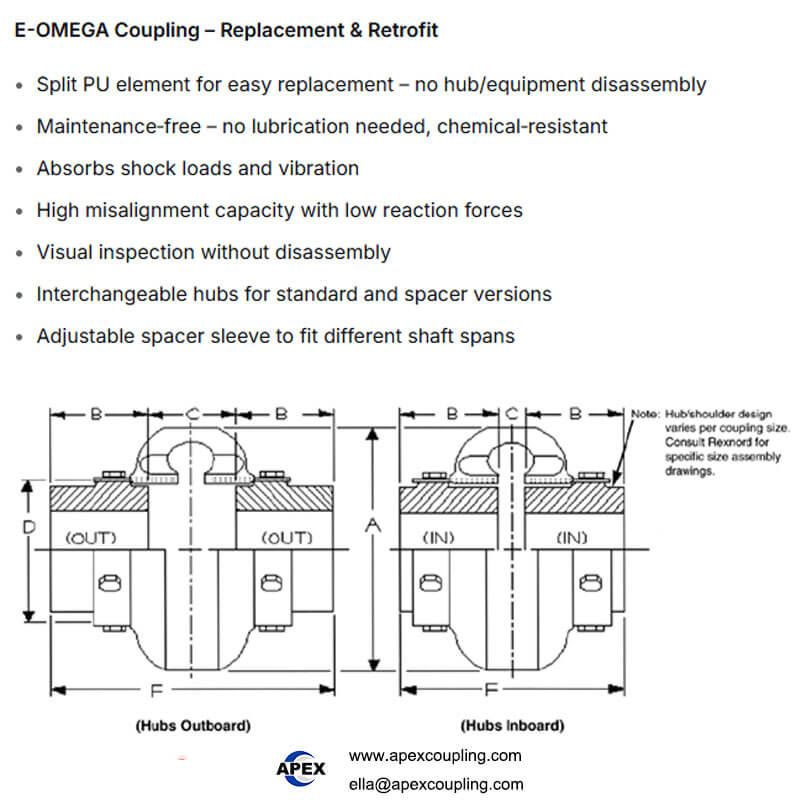

An OMEGA coupling (also called a tire coupling) consists of:

• Two steel hubs – SC45# steel, zinc-plated

• A split-in-half polyurethane element – installed radially from the outside

The polyurethane element transmits torque while absorbing shock, dampening vibration, and compensating for misalignment. The unique split design allows for quick element replacement without moving hubs, disconnecting shafts, or realigning equipment.

💡 The OMEGA design is commonly known as a “tire coupling” due to the tire-like shape of the elastomeric element.

2. Key Advantages of OMEGA Couplings

3. OMEGA vs Traditional Jaw/Spider Couplings

4. Key Selection Criteria

When selecting an OMEGA coupling, consider these factors:

Step 1: Determine your torque requirement

• Calculate the torque your application requires

• Select a model with rated torque ≥ 1.5× your requirement

• E-Type series covers 21.5–38442 N·m

Step 2: Match shaft diameters

• Measure your shaft diameters

• Select a model with a bore range that accommodates your shafts

Step 3: Check speed requirements

• Verify the coupling’s maximum speed exceeds your operating speed

• E-Type series: 1500–7500 RPM

Step 4: Consider shaft spacing

• For close-coupled applications, choose E series

• For applications requiring greater shaft spacing, choose ES series (adjustable spacer)

Step 5: Evaluate misalignment

• The OMEGA coupling compensates for angular, parallel, and axial misalignment

• Higher misalignment capacity than many other elastomeric couplings

5. E Series vs ES Series – Which One Do You Need?

6. Applications Where OMEGA Couplings Excel

7. Real‑World Example – Mining Conveyor Upgrade

A mining company was experiencing frequent coupling failures on heavy-duty conveyors. The existing couplings required regular lubrication and failed prematurely due to shock loads and misalignment.

They switched to Apex Coupling E-Type OMEGA couplings (SC45# steel, polyurethane element, split-in-half design). Results:

• Service life extended – 2–4 years vs. 6 months

• Maintenance eliminated – no lubrication required

• Downtime reduced – element replacement without moving hubs (30 minutes vs. 4 hours)

• Shock absorption improved – polyurethane element protected connected equipment

8. Installation & Maintenance Tips

1. Install one hub on each shaft – Secure with keyway or clamping

2. Install half of the element – Place one half onto the first hub

3. Adjust spacing – For ES series, adjust spacer to required length

4. Install second half of element – Complete the element installation radially

5. No lubrication required – Coupling is maintenance-free

6. Visual inspection – Check element condition without disassembly

7. Replace element – When worn, replace without moving hubs

9. Selection Checklist

• Type: E series (close-coupled) or ES series (extended spacer)

• Model: E2-M to E140-M – select based on torque and bore requirements

• Material: SC45# steel hubs + polyurethane element

• Bore: Match your shaft diameters – custom bores available

• Torque: 21.5–38442 N·m – ensure it exceeds your requirement

• Speed: 1500–7500 RPM – match your motor speed

• Maintenance: Maintenance-free – no lubrication

• Application: Pumps, compressors, mining, steel, construction, food & beverage

10. Conclusion

The E-Type OMEGA elastomeric coupling from Apex Coupling offers the perfect combination of split-in-half element design, radial installation, maintenance-free operation, and high misalignment capacity for demanding industrial applications. With SC45# steel hubs, polyurethane element, 21.5–38442 N·m torque capacity, and direct Rexnord Omega interchangeability, it delivers reliable, long-lasting performance in pumps, compressors, mining, steel, and general industry.

👉 Need an elastomeric coupling for your application? Contact us with your model, bore, and torque requirements.
