Cast iron spider couplings (also known as NM couplings or Normex couplings) are among the most versatile and reliable flexible couplings for pump, motor, and compressor applications. With a simple three-piece design – two cast iron hubs and one rubber spider – they offer an excellent balance of torque capacity, misalignment compensation, and vibration damping.

This guide explains how NM couplings work, their key advantages, and how to select the right model for your application.

1. What Is an NM Cast Iron Spider Coupling?

An NM coupling consists of:

• Two precision cast iron hubs – with convex claws, GB9439 standard

• One natural rubber spider – flexible inner ring that transmits torque

The spider transmits torque while absorbing shock, dampening vibration, and compensating for misalignment. The quick release design allows for fast installation and maintenance without special tools .

2. Key Advantages of NM Couplings

3. Why NM Couplings Are Ideal for Pumps

Pumps often experience start/stop shocks, vibration, and slight misalignment. NM couplings address these challenges:

• Vibration damping – Natural rubber spider reduces vibration transmission by up to 30% compared to rigid couplings

• Shock absorption – Protects pump seals and bearings from impact loads

• Misalignment compensation – Accommodates angular and parallel misalignment

• Maintenance-free – No lubrication – reduces pump downtime

✅ NM couplings are the preferred choice for water pumps, oil pumps, and general pump applications .

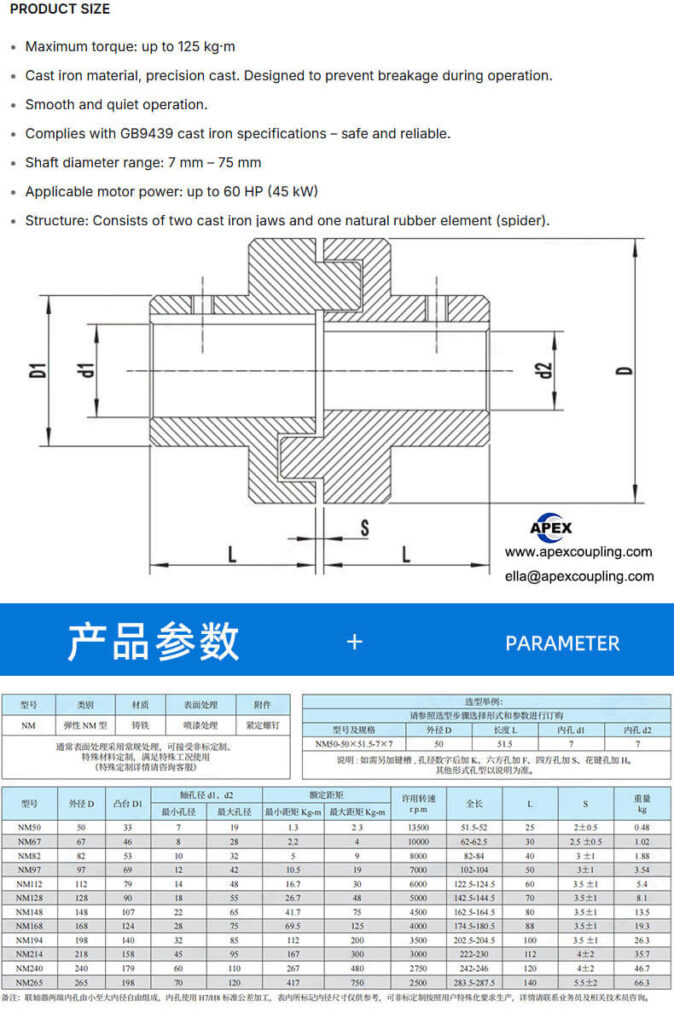

4. Model Selection – Which NM Model Do You Need?

The NM series covers a wide range of sizes:

💡 Selection tip: Choose a model with rated torque ≥ 1.5× your application torque. Match the bore range to your shaft diameters.

5. Material & Construction – Cast Iron + Natural Rubber

✅ The combination of cast iron hubs and natural rubber spider provides the perfect balance of strength, durability, and vibration damping.

6. Quick Release Design – Easy Maintenance

The NM coupling features a quick release design:

• Fast installation – No special tools required

• Easy spider replacement – Replace without moving hubs

• Reduced downtime – Faster servicing

• Cost savings – Less labor and production interruption

7. Maintenance-Free Operation

Unlike gear, chain, or many other coupling types, NM couplings are maintenance-free:

• No grease or oil – Clean operation

• No lubrication schedule – Reduces maintenance costs

• Simple visual inspection – Check spider condition periodically

✅ This makes NM couplings ideal for applications where maintenance access is difficult or where downtime must be minimized.

8. Real‑World Example – Water Pump Upgrade

A water treatment facility was experiencing frequent coupling failures on their main pump drives. The existing couplings required regular lubrication and wore out quickly due to vibration.

They switched to Apex Coupling NM128 cast iron spider couplings (cast iron hubs, natural rubber spider, quick release). Results:

• Service life extended – cast iron withstood continuous operation

• Vibration reduced – natural rubber spider dampened pump vibrations

• Maintenance eliminated – no lubrication required

• Downtime reduced – quick release design allowed fast spider replacement

9. Installation & Maintenance Tips

1. Clean shafts and bores – Remove oil, grease, and debris before assembly

2. Check alignment – Even with misalignment compensation, keep within recommended limits

3. Install spider correctly – Ensure proper fit between the two cast iron hubs

4. Tighten set screws evenly – Use a torque wrench to specification

5. No lubrication required – Spider is self-lubricating

6. Inspect spider periodically – Replace if cracked, worn, or deformed

7. Quick release – Take advantage of the quick release design for fast spider replacement

10. Selection Checklist

• Model: NM50 to NM214 – select based on torque and bore requirements

• Hub material: Precision cast iron – GB9439 standard

• Spider material: Natural rubber – vibration damping, shock absorption

• Bore size: 7–75 mm – match your shaft diameters

• Torque: Up to 125 kg·m – ensure it exceeds your requirement

• Motor power: Within 60 HP / 45 kW – match your motor

• Maintenance: Maintenance-free – no lubrication

• Design: Quick release – easy installation

11. Conclusion

The NM Series cast iron spider coupling from Apex Coupling offers the perfect combination of durability, vibration damping, and easy maintenance for pump, motor, and compressor applications. With precision cast iron hubs, natural rubber spider, 125 kg·m torque capacity, 60 HP / 45 kW motor compatibility, and quick release design, it delivers reliable, long-lasting performance in demanding industrial environments.

👉 Need a cast iron spider coupling for your pump or motor? Contact us with your model size, bore, and torque requirements.
