Introduction In demanding off-highway environments—such as agricultural harvesting fields, open-pit construction sites, and remote mining operations—mechanical drivetrains face challenging conditions. Power take-off (PTO) networks, heavy articulated steering setups, and flexible conveyor shafts must transmit high torque through fluctuating angles while exposed to heavy dust, vibration, and mud shock loads. If a basic rigid coupling is used in these misaligned layouts, it creates intense stress concentration that can snap shafts and damage gearboxes. Specifying a heavy-duty component like the High-Precision Universal Joint Coupling solves this issue. This technical article reviews the design of single and double cardan shafts and explains how 42CrMo alloy steel metallurgy and specialized customized bore profiles ensure reliable operation under heavy stress.

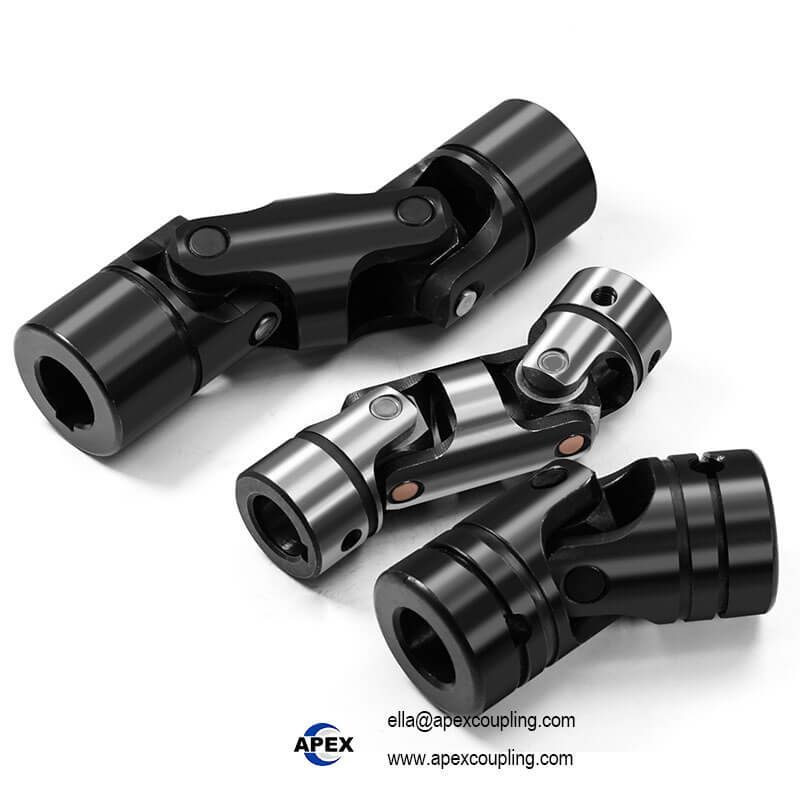

1. Single vs. Double Cardan Coupling Kinematics A single universal joint can transfer rotational force through an angle, but it introduces minor speed fluctuations (non-uniform rotation) that increase with the operating angle.

• Single Joints: Ideal for compact equipment layouts where space is limited and angular deviations remain small and constant.

• Double Joints: Features two joints mounted back-to-back, where the second joint cancels out the speed fluctuations of the first. This configuration allows the double joint to transmit smooth, uniform rotation through larger angles and easily handle significant parallel shaft offsets.

2. Material Selection: The Torsional Strength of 42CrMo Steel As detailed in the technical profile in image_b254a7.png, our universal joints are forged from high-grade 42CrMo alloy steel. Drive components in agricultural and construction machinery face intense, alternating torsional loads whenever a tractor or excavator strikes packed soil or heavy debris. Lower-grade carbon steels can quickly wear or develop fatigue cracks under these conditions. The chromium and molybdenum content of 42CrMo provides excellent core toughness and high yield strength, allowing the coupling to handle nominal torques from 4.5 to 1500 N·m and resist sudden shock loads without fracturing.

3. Custom Hole Design: Keyway, Hexagon, and Square Bores Securing a reliable shaft connection requires matching the hub style to the machinery’s operational load. Traditional round bores with keys can shear or strip under intense, repetitive forward-and-reverse heavy shock profiles. To address this risk, our universal joints offer flexible, specialized hub geometries:

• Keyway Holes: Deliver standard mechanical interlocking for high-torque industrial drives.

• Hexagon & Square Holes: Distribute torsional stress evenly across large, flat geometric faces instead of concentrating it on a small keyway slot. This makes them ideal for agricultural PTO shafts and sliding telescopic drives that undergo frequent torque reversals.

4. Broad Dimensional Versatility for Complex Machinery Rebuilds To simplify retrofitting across a wide variety of domestic and imported equipment, our couplings feature a highly versatile sizing matrix. The product line supports outer diameters from 12mm to 95mm and inner hole diameters from 6mm to 50mm (including a standard 30mm bore with a 350mm length). This flexible footprint ensures quick drop-in compatibility for heavy agricultural machinery and compact industrial equipment alike.

5. Factory Direct OEM and Custom Sourcing with Apexcoupling Industrial equipment often requires unique overall lengths, specific metric-to-inch stepped bores, or specialized keyway dimensions that off-the-shelf catalog parts cannot accommodate. Partnering directly with an established integrated manufacturer like Apexcoupling simplifies this sourcing process. Operating out of our advanced plant in Dongguan, China, our teams utilize ISO9001 and BV certified quality control systems to provide full OEM, ODM, and OBM custom services—delivering reliable hardware tailored exactly to your technical drawings.
