Paragraph 1 – Hook

In any rotating machinery where the driving and driven shafts are not perfectly aligned, a universal joint (often called a cross joint) is the simplest and most reliable solution. But not all universal joints are created equal. For applications that demand large operating angles – up to 45° in a single joint or even 90° in a double joint – you need a high compensation universal joint engineered to maintain smooth torque transmission without premature wear. Whether you are building a food & beverage production line, a packaging machine, or a custom motor drive system, selecting the right universal joint manufacturer directly impacts your equipment’s uptime and maintenance costs.

Paragraph 2 – What Makes a High Compensation Universal Joint Different?

A standard universal joint can typically handle 15‑25° of angular misalignment. A high compensation universal joint, however, uses a refined cross pin design and longer yoke arms to allow operating angles of 45° (single) and up to 90° (double). This capability is essential when space constraints force you to place the motor far from the load or when the load moves dynamically – for example, in conveyor systems with varying heights or in agricultural PTO shafts. The double universal joint consists of two joint halves connected by a center shaft, effectively cancelling out velocity fluctuations and delivering constant angular velocity at the output.

Paragraph 3 – Single vs. Double Structure: Which One Do You Need?

Choosing between a single and double universal joint depends on three factors: required operating angle, torque uniformity, and available space.

• Single universal joint – Best for angles up to 45°. Simple, compact, and cost‑effective. Suitable for most motor-to-gearbox connections and light‑duty industrial applications.

• Double universal joint – Handles angles up to 90° and provides nearly constant velocity output. Ideal for applications where the motor and driven shaft are far apart or move relative to each other, such as in packaging machinery or adjustable conveyors.
  A reliable universal joint manufacturer will offer both configurations and help you calculate the misalignment profile of your system.

Paragraph 4 – Material & Surface Treatment: Why Alloy Steel with Blackening?

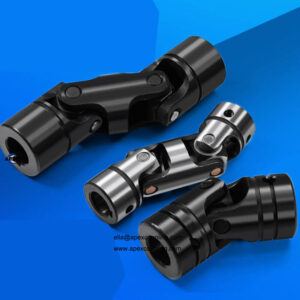

The universal joints we supply are machined from alloy steel – a material that offers an excellent strength‑to‑weight ratio and high fatigue resistance. Alloy steel withstands shock loads and continuous operation better than standard carbon steel. The blackened (black oxide) surface treatment provides a thin protective layer that resists light corrosion, reduces friction, and eliminates reflective glare. For wet or wash‑down environments (e.g., food & beverage factories), stainless steel or zinc‑plated finishes are also available as an OEM option. Always discuss your operating environment with your universal joint manufacturer to select the right material and finish.

Paragraph 5 – OEM/ODM Capabilities: Beyond Standard Sizes

Many motor drive applications require non‑standard bore diameters, overall lengths, or special cross pin dimensions. A factory‑direct universal joint manufacturer like Apex Coupling provides full OEM and ODM services – we can produce universal joints to your exact drawing, including custom keyways, lubrication holes, and even private branding on the yokes. For prototype validation, we offer low MOQ (1 piece) and fast sample delivery. This flexibility is especially valuable for equipment manufacturers who need consistent quality across thousands of units.

Paragraph 6 – Industries That Rely on High Compensation Universal Joints

• Food & Beverage Factories – Conveyors, bottle fillers, and cappers often use double universal joints to drive shafts that change height.

• Home Use & Retail Equipment – Treadmills, commercial kitchen mixers, and vending machines use compact single universal joints.

• Industrial Automation – Pick‑and‑place units, indexing tables, and printing presses.

• Agricultural & Off‑Highway – Mowers, balers, and tillers where PTO shafts operate at large angles.
  Each industry has unique torque, speed, and environmental requirements. A knowledgeable universal joint manufacturer will ask for your operating angle range, torque curve, and cycle frequency before recommending a specific model.

Paragraph 7 – Quality Certifications: ISO9001 and BV

When sourcing universal joints from a global supplier, always verify their quality certifications. ISO9001 ensures that the manufacturer follows documented processes for material sourcing, machining, assembly, and testing. BV (Bureau Veritas) certification adds an extra layer of supply chain credibility. At Apex Coupling, every batch of universal joints is inspected dimensionally and functionally – we can provide material certificates, hardness test reports, and even third‑party inspection upon request. This transparency is what separates a genuine OEM universal joint manufacturer from a simple trader.

Paragraph 8 – How to Evaluate a Universal Joint Manufacturer: A Checklist

1. Ask for their operating angle range – Can they guarantee performance at 45° or 90°?

2. Review their material specifications – Is it alloy steel with heat treatment?

3. Check customization lead time – How many days for a custom bore?

4. Request a sample – A reputable manufacturer will provide a sample for testing (often with a sample fee refundable on production order).

5. Look for stock availability – Large stock of standard sizes means less waiting for common replacements.

Applying this checklist will help you avoid suppliers who deliver undersized or poorly heat‑treated universal joints that fail after a few hundred hours.

Paragraph 9 – Conclusion & Call to Action

A high compensation universal joint is not just a simple mechanical part – it is the critical link between your motor and the load. Choosing the right single or double structure, alloy steel material, and an experienced universal joint manufacturer ensures your power transmission system runs reliably for years. At Apex Coupling, we combine ISO9001‑certified quality, OEM flexibility, and fast global delivery. Whether you need one prototype or a thousand pieces, our engineering team is ready to support you.
