Introduction In high-torque industrial machinery—such as heavy mining conveyors, rolling mills, and large pumping sets—shaft couplings must transfer thousands of Newton-meters of torque while enduring operational shock loads and thermal shaft expansions. Traditional straight-tooth gear couplings often suffer from severe edge pressure concentration when even minor shaft misalignment occurs, leading to accelerated tooth wear and premature fatigue failure.

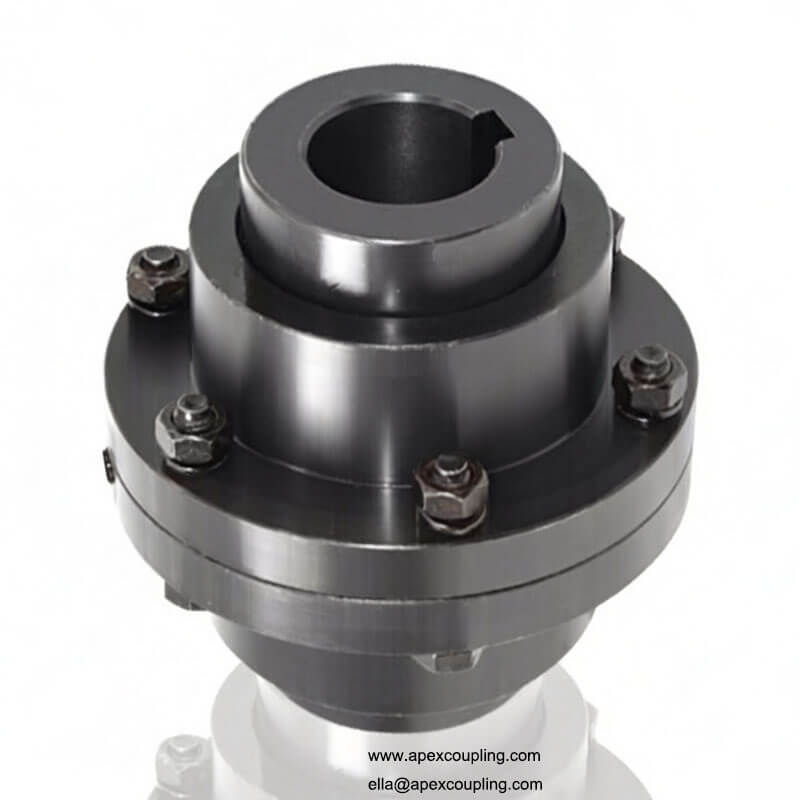

The GIICL Series Steel Curved Tooth Drum Gear Coupling solves this limitation through drum-shaped (crowned) external gear teeth. This article explains the mechanical benefits of curved-tooth gear geometry, sizing dynamics, and maintenance considerations for heavy drive applications.

1. The Mechanics of Curved (Crowned) Tooth Splines The key feature of the GIICL coupling is the special geometric modification of its external teeth:

• Elimination of Edge Pressure: Unlike straight teeth that concentrate load on tooth ends when misaligned, a drum-shaped tooth distributes contact force smoothly over a broad contact area near the middle of the tooth profile.

• Reduced Friction & Backlash: The spherical contact profile lowers sliding friction between the internal sleeve gear and external hub gear, reducing wear and operational noise under heavy torque.
