Universal joints are essential for transmitting power between shafts with angular misalignment. But when the distance between shafts varies during operation, a telescopic (extendable) universal joint is required.

The WSP series from Apex Coupling combines a universal joint design with a telescopic spline connection – allowing for both angular misalignment and axial displacement compensation.

This guide explains how telescopic universal joints work and how to select the right WSP model for your application.

1. What Is a Telescopic Universal Joint?

A telescopic universal joint consists of:

• Universal joint ends – for angular misalignment compensation (up to 45°)

• A telescopic spline shaft – allows axial length adjustment during operation

• Precision machined yokes – with H7 bore for accurate shaft fit

The spline connection enables the coupling to extend and contract, accommodating variable shaft spacing while maintaining smooth power transmission .

2. Why Choose a Telescopic Design?

✅ Telescopic universal joints are widely used in packaging, textile, agricultural, and construction machinery .

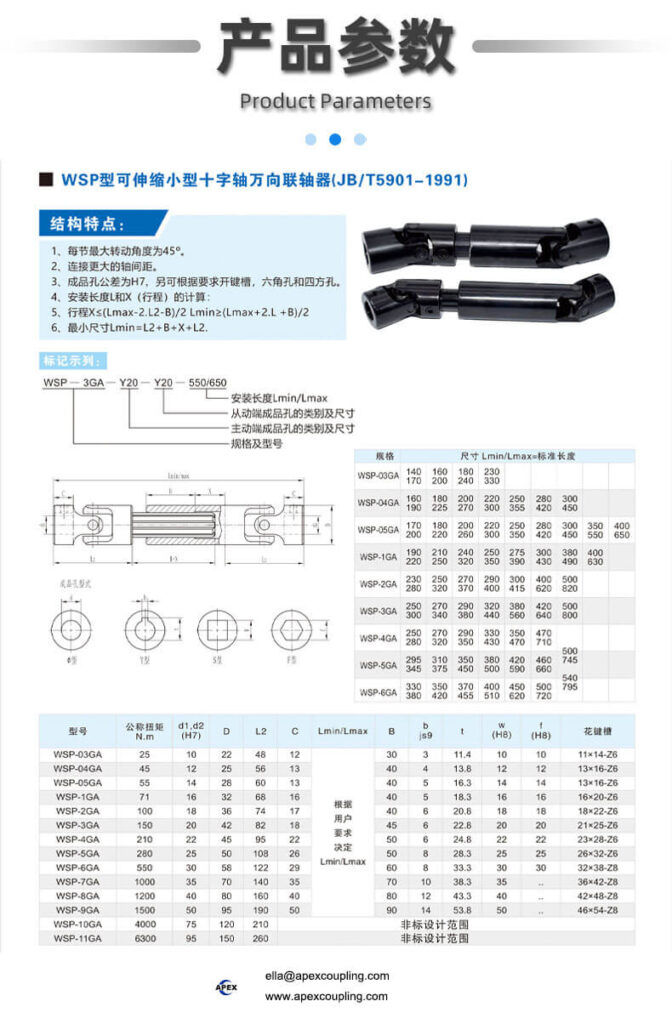

3. WSP Series – Key Features

4. Length Calculation – Important Design Consideration

For WSP telescopic universal joints, the installation length L and travel X must be calculated:

• Travel: Xs = (Lmax – 2·L2 – B) / 2

• Minimum length: Lmin ≥ (Lmax + 2·L + B) / 2

• Maximum length: Lmax = Lmin + travel

Where L = total length, L2 = length of each joint, B = spline engagement length .

💡 Contact our engineering team for custom length calculations based on your specific application requirements.

5. Material Selection – Why 42CrMo?

42CrMo alloy steel offers superior properties for universal joints:

• High tensile strength – Handles torque without deformation

• Excellent fatigue resistance – Withstands millions of cycles

• High impact toughness – Resists shock loads

• Good wear resistance – Long service life under friction

6. Applications Where Telescopic Universal Joints Excel

7. Installation & Maintenance Tips

1. Check spline engagement – Ensure sufficient engagement length (B) for torque transmission

2. Lubricate spline regularly – Reduces wear and extends service life

3. Check alignment – Keep angles ≤40° for continuous operation

4. Inspect for wear – Check spline teeth and universal joint bearings periodically

5. Dynamic balancing – For speeds above 1000 rpm, ensure the joint is balanced

8. Selection Checklist

• Configuration: Single or double universal joint

• Bearing type: Sliding (1000 rpm) or needle (4000 rpm)

• Length/Travel: Calculate required Lmax and Lmin

• Bore type: Keyway, hexagon, square, or plain

• Bore tolerance: H7 for precision fit

• Angle: Up to 45° – keep ≤40° for continuous use

9. Conclusion

The WSP telescopic universal joint coupling from Apex Coupling offers the perfect combination of angular misalignment compensation, axial displacement accommodation, and high strength. With 42CrMo construction, 45° angular capacity, telescopic spline design, and H7 bore precision, it is the ideal solution for applications with variable shaft spacing.

👉 Need a telescopic universal joint for your application? Contact us with your length, travel, torque, and bore requirements.
