Introduction Industrial centrifugal water pumps and fluid drive shafts operate under challenging dynamic conditions. Constant hydraulic backpressure, sudden fluid rushes, and cavitation can send harsh shock waves back down the drive shaft to the electric motor. If the motor and pump are joined by a low-grade or rigid coupling, these continuous micro-shocks can quickly destroy motor bearings, warp shafts, and blow out gearbox seals. To prevent this, industrial engineers rely on elastomeric jaw connections like the XL Series DJ-A Star-Shaped Flexible Clamping Couplings. This technical guide breaks down how utilizing impurity-free 45# steel and strict H7 machining tolerances isolates vibration and protects your fluid-handling machinery.

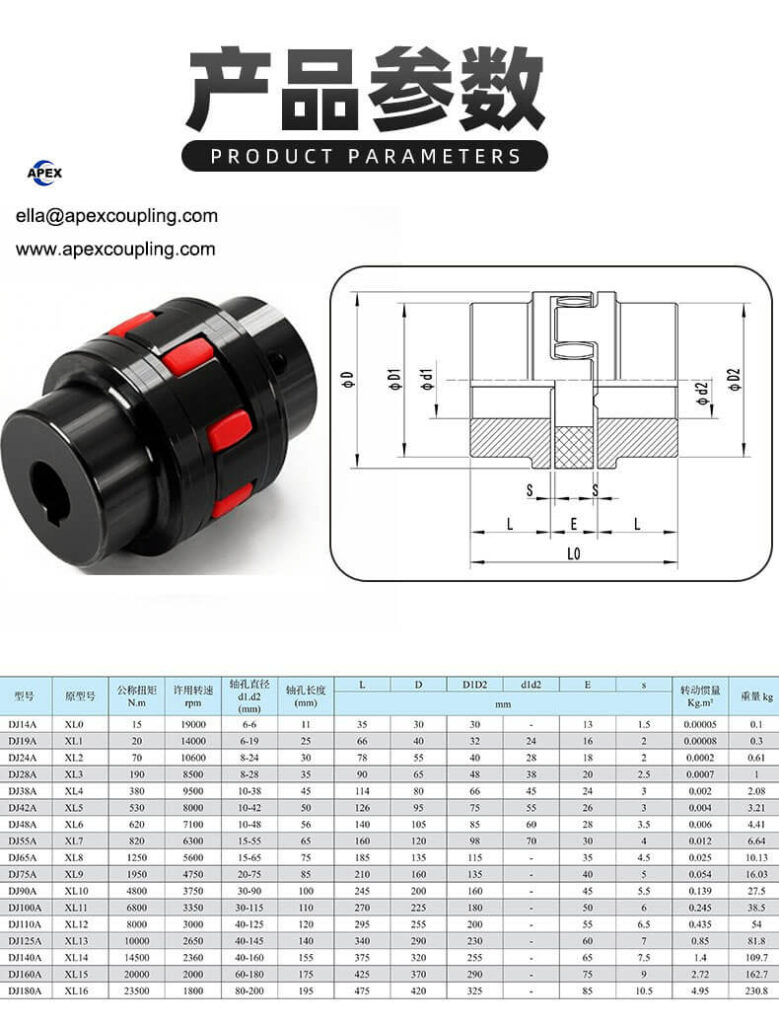

1. Material Excellence: Solid 45# Round Steel vs. Common Cast Iron Many standard jaw couplings found in the market use cheap cast iron or lower-grade sintered metals. While budget-friendly, cast iron contains inherent structural defects like tiny sand holes and internal air impurities. Under the high starting torque of an industrial pump, these weak points can develop micro-cracks, eventually leading to catastrophic jaw breakage. Machining the coupling from solid 45# medium-carbon round steel ensures a uniform, high-density grain structure. This premium steel layout provides the high tensile strength and structural toughness needed to easily manage continuous operating torques up to 15 N·m and peak torque loads up to 20 N·m without deforming.

2. The Polyurethane Spider: The Core of Shock and Vibration Absorption The critical component that separates a flexible jaw coupling from a rigid sleeve is its central flexible insert. The XL series utilizes a premium polyurethane star-shaped spider cushion

3. Concentricity and the H7 Bore Machining Specification Even minor mounting errors can create serious issues in high-speed applications running up to 19,000 RPM. If an internal bore is slightly oversized, the coupling will sit off-center on the shaft, causing an unbalanced weight distribution that generates severe high-frequency vibrations. To prevent this, the internal bores are precision machined to a strict H7 tolerance grade. This ensures excellent concentricity, a precise fit onto standard metric shafts, and smooth, balanced rotation.

4. The Clamping Advantage: Secure, Zero-Backlash Locking Traditional coupling hubs rely on simple set screws that tighten directly onto the shaft skin. Under continuous vibration, these screws can back out, leading to shaft slippage and damage. The DJ-A series addresses this by using a split-hub clamping mechanism. Tightening the high-tensile clamping screws compresses the entire inner bore uniformly around the shaft. This creates a secure, zero-backlash friction grip that holds tightly during high-speed operation, without scratching or damaging the shaft metal.

5. Direct Factory Sourcing for Seamless Customization Sizing Industrial pump drive layouts often involve varied shaft dimensions, such as matching a larger imperial motor spindle to a smaller metric pump shaft. Finding a standard off-the-shelf coupler to bridge these differences can be difficult. Sourcing directly from an established manufacturer like Apexcoupling simplifies this process. Our specialized production facility can quickly produce custom XL series couplings with stepped bores, custom keyways, or tailored lengths, ensuring a drop-in component built exactly to your technical prints.

 placed between the interlocking jaw teeth. When the pump starts up or experiences fluid turbulence, the polyurethane insert compresses slightly, absorbing the impact energy and preventing it from reaching the motor. This elastic material also actively compensates for angular and parallel misalignments, isolating vibration to keep the drivetrain running smoothly and quietly.
