Roller Chain Coupling vs Gear Coupling – Which One Is Easier to Maintain?

When selecting a coupling for general motor applications, textile machinery, agricultural equipment, or mining conveyors, two common options are roller chain couplings and gear couplings. Both have their place, but roller chain couplings offer a major advantage: easy maintenance without moving shafts.

This guide compares both types and explains why the KC/GL series with case-hardened teeth is a smart choice for many industrial applications.

1. Roller Chain Coupling vs Gear Coupling – Quick Comparison

2. The #1 Advantage: Easy Maintenance

With a gear coupling, replacing worn teeth often means moving the motor or load to access the coupling halves. This can take hours.

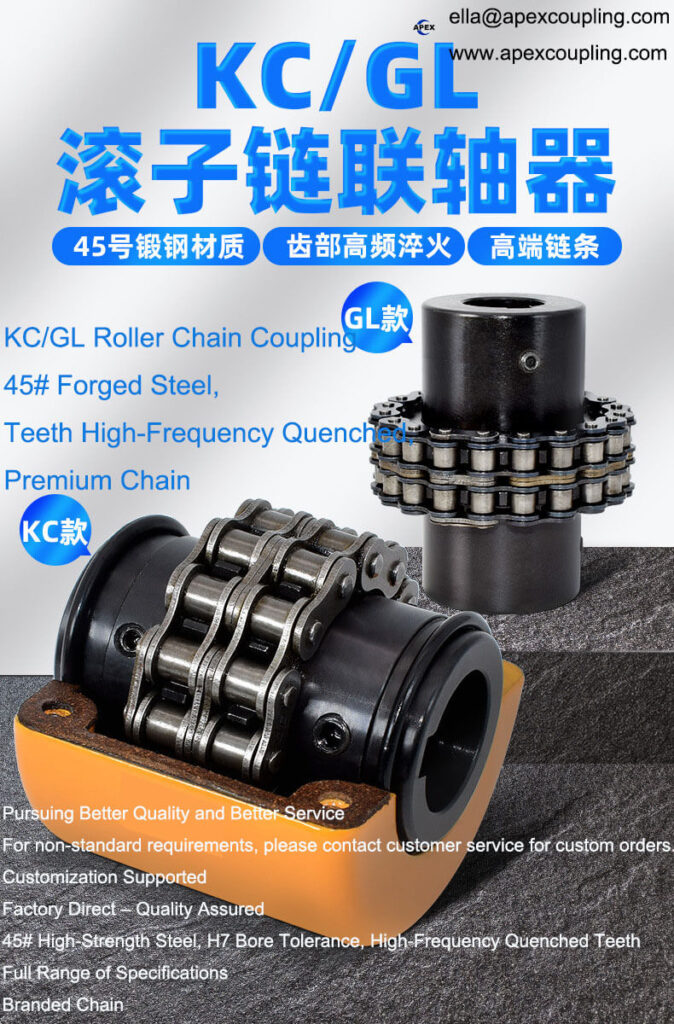

With a KC/GL roller chain coupling:

• Simply remove the guard, take off the chain, and replace it – without moving either shaft

• The two sprocket halves stay mounted on their respective shafts

• Downtime is reduced from hours to minutes

✅ This is a game-changer for production lines where uptime is critical.

3. Why Our KC/GL Chain Coupling Lasts 30% Longer

Standard chain couplings wear out due to chain elongation and tooth wear. We solved this with:

• Case-hardened teeth (high-frequency quenching) – surface hardness increased significantly

• Thicker tooth profile – more material to wear, following national standards

• High-quality domestic brand chain – high tensile strength, excellent transmission performance

Result: Service life extended by 30% compared to standard chain couplings.

4. Misalignment Compensation – Protecting Your Equipment

Roller chain couplings can accommodate small amounts of:

• Angular misalignment – up to 1°

• Radial deviation – up to 0.1 mm

• Axial displacement – up to 9.5 mm depending on model

By absorbing these deviations, the coupling reduces stress on bearings and seals – extending equipment life .

5. Protective Guard – More Than Just Safety

Every KC/GL coupling comes standard with a protective guard:

• Safety – prevents operator contact with rotating chain

• Dust/dirt protection – keeps contaminants out of the chain

• Lubrication retention – keeps grease or oil inside

• Noise reduction – dampens chain noise

6. Applications Across Industries

7. Real‑World Example – Textile Mill Upgrade

A textile mill was experiencing frequent downtime with gear couplings on their spinning line. Maintenance required moving heavy motors to access couplings.

They switched to Apex Coupling KC/GL roller chain couplings with guard (45# steel, case-hardened teeth, H7 bore). Results:

• Downtime reduced from 4 hours to 30 minutes – chain replacement only

• No shaft movement required – motor stayed in place

• Coupling life extended – case-hardened teeth lasted 30% longer

• Cleaner operation – guard contained lubrication and dust

8. Selection Checklist

• Torque: Select based on your motor power – KC series up to 930 N·m, GL series up to 25,000 N·m

• Speed: Match or exceed motor speed – KC up to 6000 rpm, GL up to 4500 rpm

• Bore size: Must match shaft diameters – KC: 9–200 mm, GL: 16–190 mm

• Environment: Guard included for dusty, wet, or safety-critical areas

• Maintenance: Need easy service without moving shafts? → Choose chain coupling

9. Conclusion

The KC/GL roller chain coupling with guard from Apex Coupling offers the perfect combination of easy maintenance, long service life, and versatility for general motor applications and heavy industry. With 45# forged steel construction, case-hardened teeth (30% longer life), H7 precision bore, and standard protective guard, it outperforms many gear couplings in real-world industrial environments.

👉 Ready to try a KC/GL chain coupling? Contact us with your bore sizes and torque requirements.
