Universal joints (cardan shafts) are essential for transmitting power between misaligned shafts. However, traditional universal joints require tools and significant time for assembly and disassembly – creating maintenance bottlenecks in production environments.

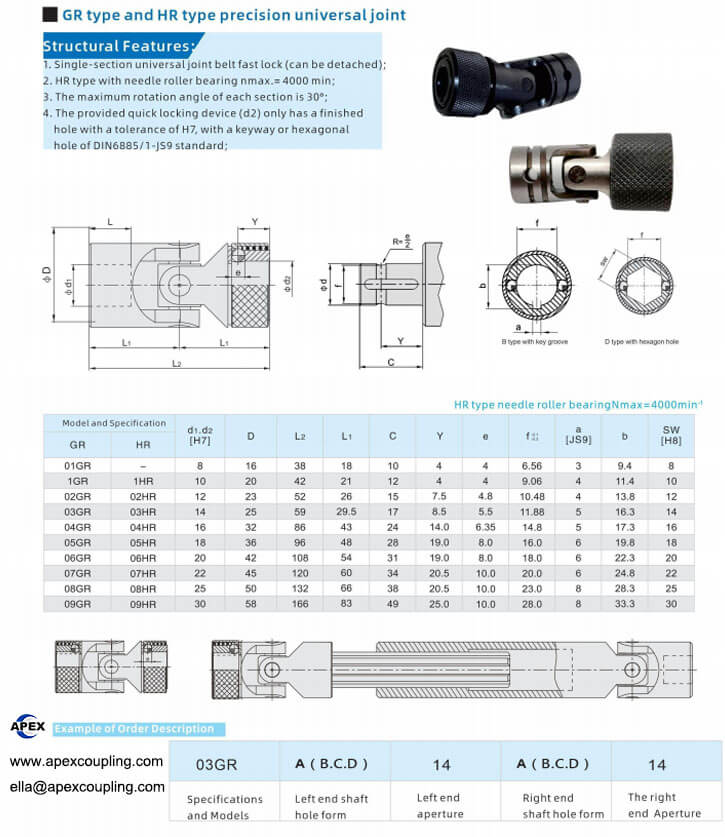

The GR/HR series from Apex Coupling solves this problem with an innovative quick lock (quick-release) mechanism that enables tool-free shaft separation within seconds. Available with plain bearing (GR, 1000 RPM) or needle bearing (HR, 4000 RPM), this guide explains how to select the right quick lock universal joint for your application.

1. What Is a Quick Lock Universal Joint?

A quick lock universal joint (also called a quick-release cardan joint) is a precision universal joint manufactured to DIN 808 standards that features an integrated quick-release mechanism. This mechanism allows the joint to be:

• Separated from the shaft without using any tools

• Reattached in seconds – rapid assembly

• Serviced quickly – no special equipment required

✅ The quick lock design is ideal for applications requiring frequent shaft changes, regular maintenance, or rapid equipment reconfiguration.

2. GR (Plain Bearing) vs HR (Needle Bearing) – Which One Do You Need?

Recommendation:

• Choose GR (plain bearing) for applications below 1,000 RPM where cost is a primary concern and periodic lubrication is acceptable.

• Choose HR (needle bearing) for applications above 1,000 RPM where maintenance-free operation and low friction are priorities.

3. Quick Lock – The Maintenance Advantage

The quick lock mechanism offers significant advantages over traditional universal joints:

💡 The quick lock allows separation from the shaft without using any tool within short term – dramatically reducing maintenance time and costs.

4. DIN 808 Standard – Precision and Interchangeability

The GR/HR series is manufactured to DIN 808 standards, ensuring:

• Consistent quality – standardized dimensions and tolerances

• Interchangeability – compatible with other DIN 808 compliant products

• Reliable performance – tested and proven design

• Global acceptance – recognized standard worldwide

💡 DIN 808 precision joints are widely used in mechanical engineering applications.

5. 45° Articulation Angle – Large Angular Compensation

Each joint provides a maximum articulation angle of 45°. This allows the joint to compensate for significantly larger angular displacements compared to other coupling types.

Practical tip: For continuous operation, try to keep operating angles below 30° to maximize bearing life.

6. Bore Options – Choose Your Connection Type

The GR/HR series is available with:

💡 The quick locking device (d2) is available with H7 finished bore and keyway to DIN 6885-1 JS9 or hexagon bore.

7. Applications Where Quick Lock Universal Joints Excel

8. Real‑World Example – Manufacturing Plant Upgrade

A manufacturing plant was experiencing significant downtime during routine maintenance of their universal joints. Traditional joints required wrenches, pullers, and 15-20 minutes per joint for removal and reinstallation.

They switched to Apex Coupling HR quick lock universal joints (needle bearing, 4000 RPM, quick lock). Results:

• Maintenance time reduced from 20 minutes to 30 seconds – tool-free separation

• No special tools required – eliminated tool costs

• Maintenance eliminated – HR needle bearing is maintenance-free

• Downtime reduced – faster servicing kept production running

9. Installation & Maintenance Tips

1. For GR (plain bearing) – Lubricate periodically through the provided openings

2. For HR (needle bearing) – No maintenance required – permanent lubrication

3. Quick lock operation – No tools needed – simply engage/disengage the quick-release mechanism

4. Check angle – Keep operating angles ≤45° for proper operation

5. Inspect for wear – Check joint center piece and bearings periodically

6. Bore fit – Use H7 shaft tolerance for best concentricity

10. Selection Checklist

• Type: GR (plain bearing, 1000 RPM) or HR (needle bearing, 4000 RPM)

• Quick lock: Yes – tool-free shaft separation

• Standard: DIN 808 – quality assured

• Bore: H7 – match your shaft diameter

• Bore option: Keyway (DIN 6885-1 JS9) or hexagon bore

• Angle: Up to 45° – keep within limits for continuous operation

• Speed: GR = 1,000 RPM / HR = 4,000 RPM

• Maintenance: GR requires lubrication / HR is maintenance-free

11. Conclusion

The GR/HR quick lock precision universal joint from Apex Coupling offers the perfect combination of rapid assembly/disassembly, DIN 808 quality, and bearing flexibility for demanding industrial applications. With tool-free shaft separation, plain or needle bearing options, 45° angular flexibility, and H7 bore precision, it is the ideal solution for manufacturing plants, machinery repair shops, food & beverage facilities, and general industrial applications requiring quick maintenance or frequent shaft changes.

👉 Need a quick lock universal joint for your application? Contact us with your type, bore, and speed requirements.
