How to choose Disc/Diaphragm coupling?
A 5-Step Guide to Selecting a Disc/Diaphragm Coupling
Step 1: Evaluate if a Disc Coupling is the Right Type
First, understand its core characteristics to see if it fits your application.
Choose a Disc Coupling if you need:
Zero Backlash:Â For precise positioning in servo systems.
High Torsional Stiffness:Â For accurate motion transfer without wind-up.
High-Speed Capability:Â Perfectly balanced for thousands of RPM.
High Torque Density:Â Transmits high torque in a compact design.
Maintenance-Free Operation:Â No lubrication required (unlike gear couplings).
Reconsider if your application has:
Very high shock loads (an elastomeric coupling may be better).
Severe misalignment (a good grid or jaw coupling might be more cost-effective).
A very low budget for non-critical applications.
Step 2: Determine Key Application Parameters
Gather these essential technical details with high precision:
| Parameter | Why It’s Critical for Disc Couplings |
|---|---|
| Torque (Peak & Continuous) | Determines the coupling size. The coupling must handle the maximum peak torque without failing. |
| Speed (Max. RPM) | The primary driver for selection. High speeds require specific, balanced disc pack designs. |
| Shaft Sizes & Keyways | Defines the bore size and connection method (keyless clamp hubs are popular for high speed). |
| Misalignment (Angular, Parallel, Axial) | Disc couplings have limited but precise misalignment capacity. You must calculate the expected values. |
Step 3: Analyze the Type of Motion and Loads
This affects the service factor and coupling life.
Uniform Loads (e.g., centrifugal compressors, steady pumps):Â Standard service factors apply.
Cyclic/Reversing Loads (e.g., servo drives, robotics):Â The disc pack will undergo fatigue. A higher-performance material or design may be needed.
High Shock Loads:Â While strong, repeated severe shocks can fatigue the thin discs. Analyze the shock spectrum carefully.
Step 4: Define the Operating Environment
The environment dictates material selection.
Temperature: Standard stainless steel discs work from -50°C to +250°C+. For higher temperatures, special alloys (like Inconel) are used.
Corrosive Atmosphere:Â 300-series stainless steel is standard for excellent corrosion resistance.
Presence of Debris:Â A fully enclosed shroud may be necessary to prevent foreign objects from damaging the thin discs.
Step 5: Select the Specific Design & Materials
Single vs. Double Disc Pack:

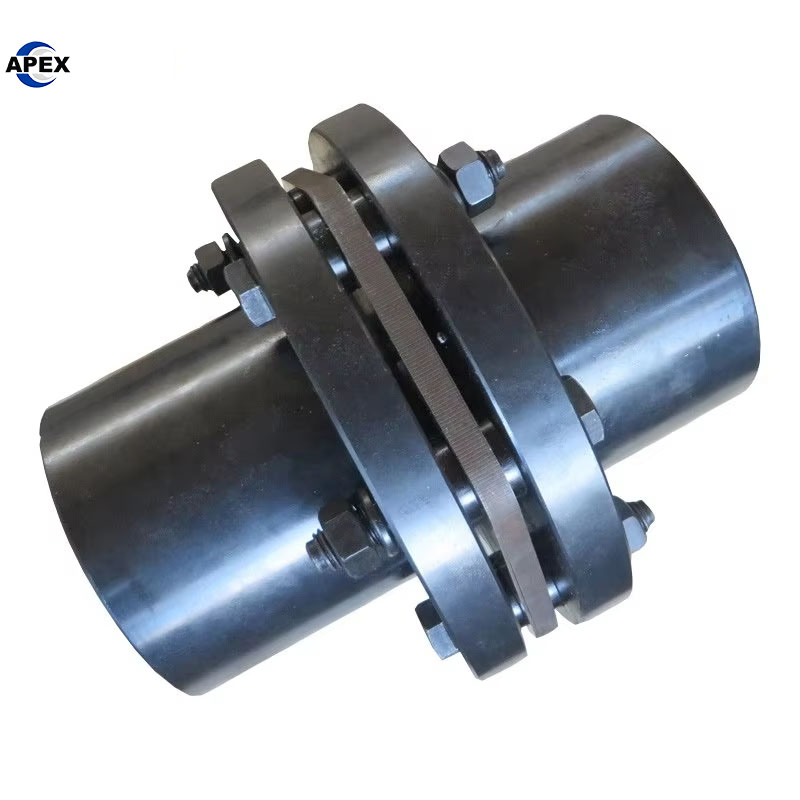

Single Disc Pack:Â Accommodates angular and parallel misalignment but requires a floating shaft.

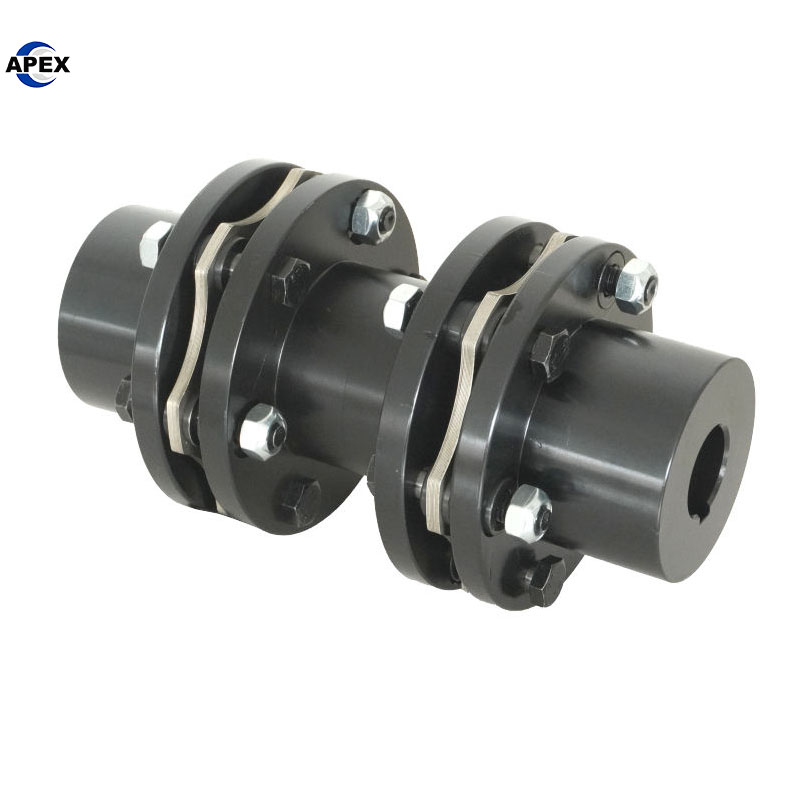

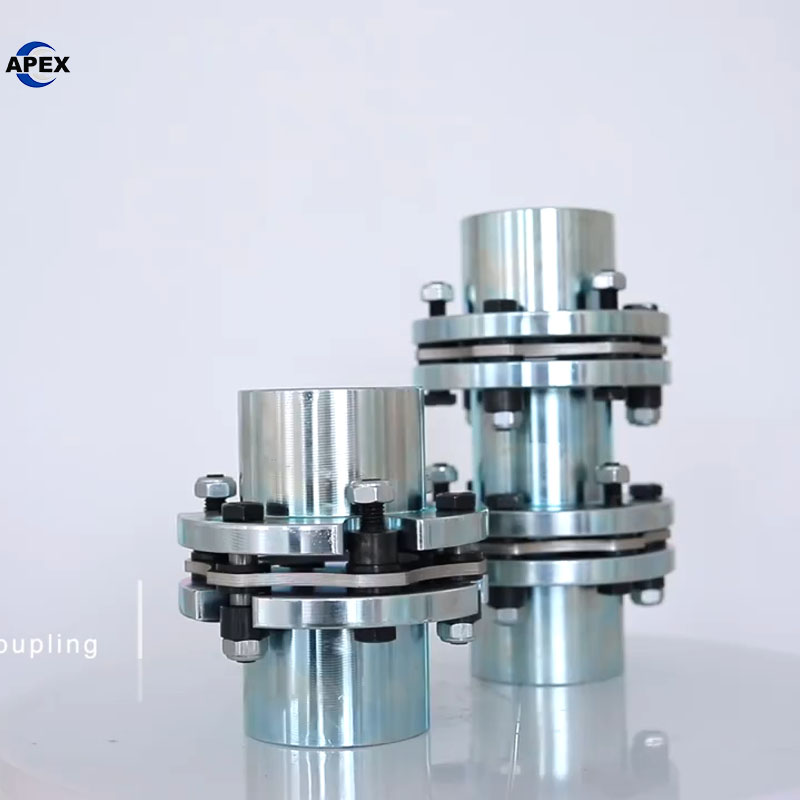

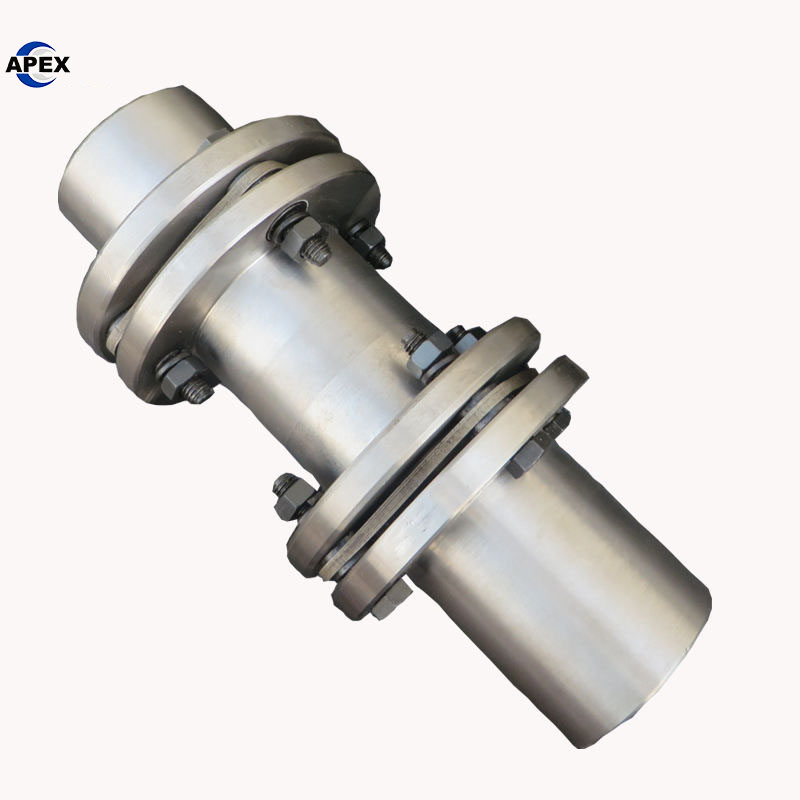

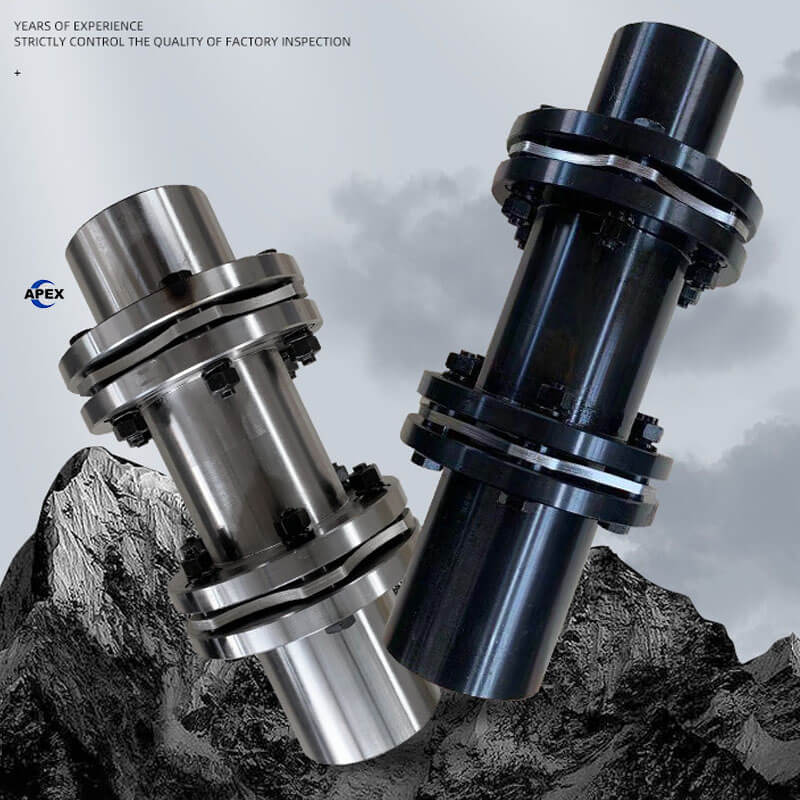

Double Disc Pack (Widely Used): Accommodates angular, parallel, and axial misalignment without a floating shaft. This is the most common industrial design.
Hub Attachment:
Clamp-Type Hubs:Â Preferred for high-speed applications as they provide perfect grip and balance.
Keyed & Set-Screw Hubs:Â Common for lower-speed, general-duty applications.
Summary: When is a Disc/Diaphragm Coupling the Best Choice?
Choose a disc coupling for these demanding applications:
| Application | Reason for Choosing Disc Coupling |
|---|---|
| Turbo-Machinery | High speeds, high reliability, and maintenance-free operation. |
| Precision Servo Systems | Zero backlash and high torsional stiffness for accurate positioning. |
| High-Speed Spindles | Excellent balance and smooth operation at extreme RPMs. |
| Aerospace & Defense | Lightweight, high-performance, and reliable in critical systems. |
| Pumps & Compressors | Where reliability and downtime costs are a primary concern. |
Final Recommendation: Disc coupling selection is highly technical. The most crucial step is providing the torque, speed, and misalignment data to a reputable manufacturer or distributor. They will use specialized software to calculate the coupling’s life and ensure it is perfectly sized for your application. Never guess with a disc coupling.
