Product Description
[Header: High Radial Pressure & Non-Axial Shift Clamping: Z2 / A2 Double-Taper Keyless Locking Assembly]
Â

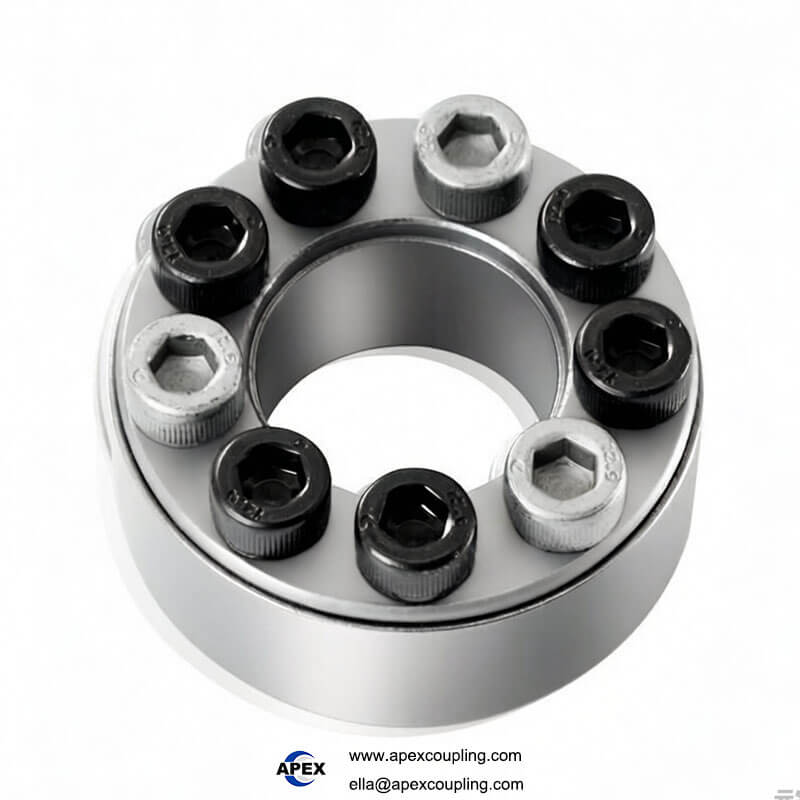

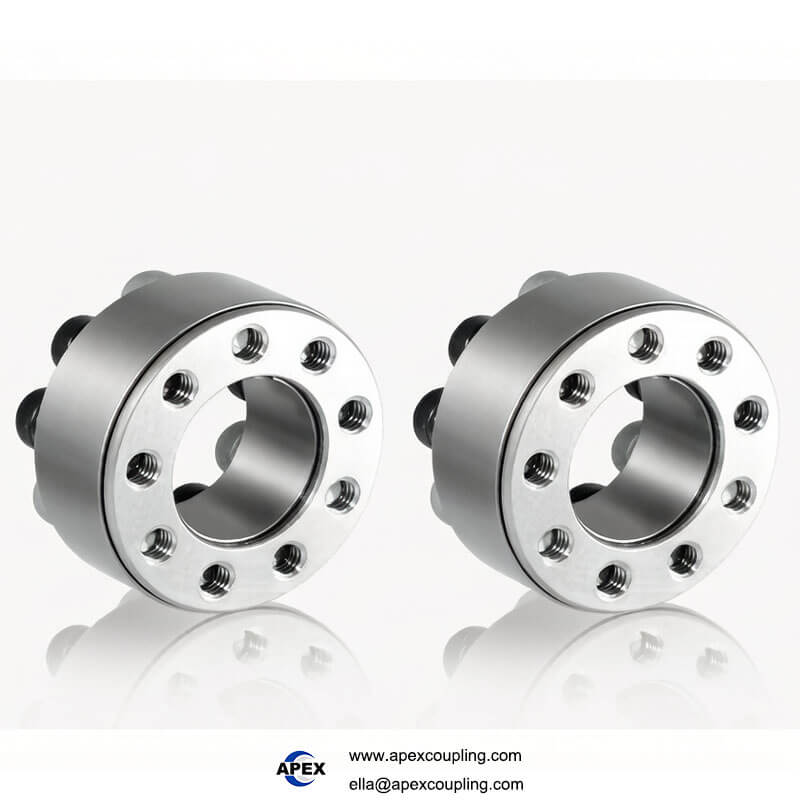

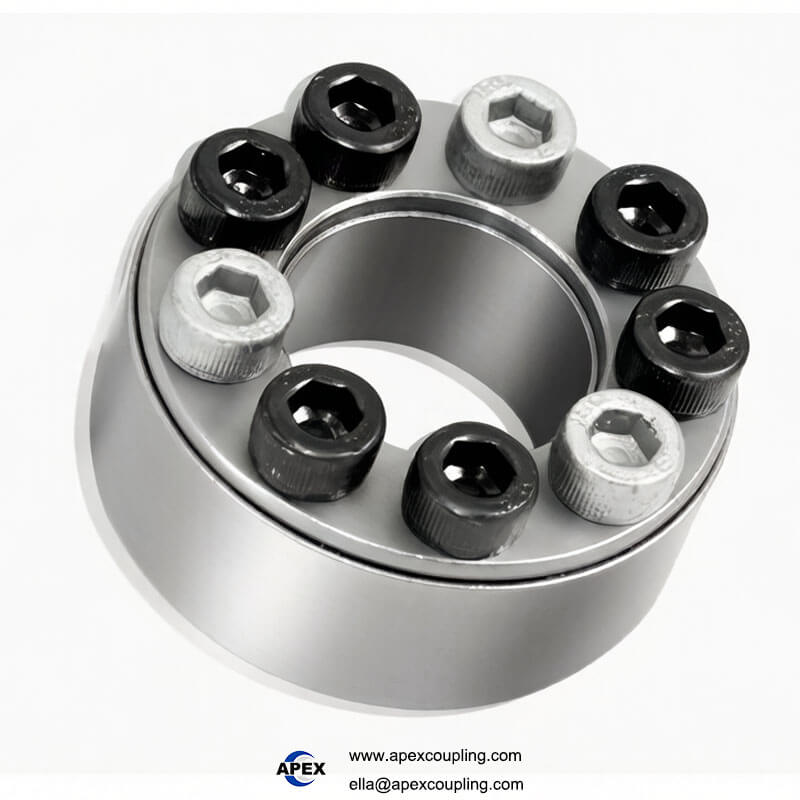

The Apexcoupling Z2 / A2 Type Keyless Shaft Locking Assembly (also designated as the AL-S straight-through double-taper expansion sleeve) is an ultra-reliable, friction-based clamping element designed for heavy-duty industrial power transmission systems. Interchangeable with international standard profiles like TLK200, KTR100, and ZJ2, the A2 architecture consists of a split double-taper inner ring, a split double-taper outer ring, and two double-taper clamping pressure rings. As the high-strength inner hexagon socket bolts are tightened, the wedge mechanism generates high radial contact pressure without causing axial movement of the elastic rings relative to the shaft hub.
Â
Compared to single-taper A1 models, the A2 double-taper design generates significantly higher radial pressure for the same bolt tightening force, enabling it to transfer heavier rotational torques and axial loads. Precision-forged from quenched and tempered 45# carbon steel (or optional stainless steel), these expansion sleeves feature 2 to 4 integrated disassembly thread holes along the pressure ring for effortless, non-destructive removal.
Â
[Core Product Advantages / Unique Selling Points]
Higher Radial Pressure Generation: The double-taper design delivers greater radial clamping force than single-taper designs under equal bolt torque, accommodating higher shock loads.
Zero Axial Displacement During Clamping: Tightening the socket bolts clamps the hub without shifting the position of the elastic rings along the shaft axis, preserving exact axial component alignment.
Universal Industrial Interchangeability: Directly replaces and matches international interchange codes including TLK200, KTR100, ZJ2, A2, and AL-S series sleeves.
Integrated Disassembly Thread Holes: Equipped with 2 to 4 specialized threaded extraction holes on the pressure ring for fast, hammer-free removal during maintenance.
Forged 45# Steel & Stainless Options: Quenched and tempered 45# steel construction ensures exceptional mechanical toughness, fatigue resistance, and long operational service life.
Stackable Multi-Unit Configuration: Designed so that multiple locking sleeves can be installed in series to handle extreme torque and heavy axial loads.
Broad Machinery Application: Essential component for CNC machine tools, food packaging, printing presses, textile machinery, woodworking equipment, and photovoltaic gear.
Direct Factory Sourcing: Manufactured directly at our plant with complete support for non-standard custom sizes, special bore diameters, and flexible OEM/ODM production pipelines.
Â
[Technical Specifications Table]

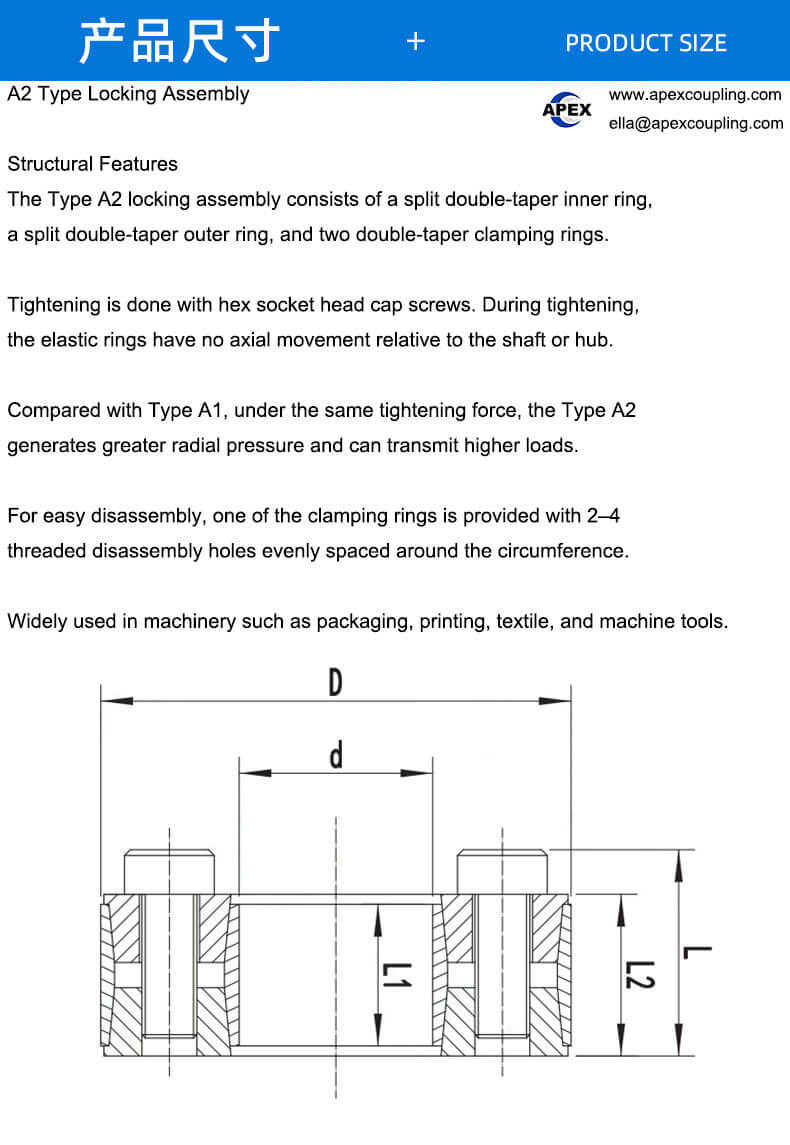

| Attribute | Specification Details (As Detailed in Technical Profile & 88bbe1b5-ba7f-4d61-b243-01c48708b28b.png) |
| Product Model Series | Z2 / A2 Type Locking Assembly (AL-S Straight-Through Double-Taper) |
| International Cross-Reference | Direct Replacement for TLK200, KTR100, ZJ2, A2, AL-S |
| Mechanical Structure Type | Split Double-Taper Inner Ring + Outer Ring + Dual Pressure Rings |
| Primary Material Options | Quenched 45# Forged Carbon Steel or Stainless Steel |
| Hardware Screw Grade | High-Tensile Inner Hexagon Socket Bolts |
| Axial Displacement Behavior | Zero Axial Movement of elastic rings relative to shaft hub during tightening |
| Disassembly Features | Integrated threaded removal holes (2 to 4 locations along perimeter) |
| Axial Force Capacity | Rated Baseline 31 kN (Scalable with sizing/multi-unit series) |
| Torque Load Capacity | Rated Baseline 298 N·m (Scalable across full dimensional matrix) |
| Custom Size Capabilities | Fully customizable Inner Diameter (ID) and Outer Diameter (OD) profiles |
| Applicable Industries | CNC Machine Tools, Packaging, Printing, Textile, Photovoltaic, Chemical |
| Place of Origin | Manufactured by Apexcoupling (Direct Factory Hub) |
| Customization Support | Direct Factory Technical Custom Sourcing (OEM, ODM, OBM) |
| Model | Inner Diameter (mm) | Outer Diameter (mm) | Length (mm) |
|---|---|---|---|
| Z2 | 18 | 47 | 20 |
| Z2 | 19 | 47 | 20 |
| Z2 | 20 | 47 | 20 |
| Z2 | 22 | 47 | 20 |
| Z2 | 24 | 50 | 20 |
| Z2 | 25 | 50 | 20 |
| Z2 | 28 | 55 | 20 |
| Z2 | 30 | 55 | 20 |
| Z2 | 32 | 60 | 20 |
| Z2 | 35 | 60 | 20 |
| Z2 | 38 | 63 | 20 |
| Z2 | 38 | 65 | 20 |
| Z2 | 40 | 65 | 20 |
| Z2 | 42 | 72 | 24 |
| Z2 | 42 | 75 | 24 |
| Z2 | 45 | 75 | 24 |
| Z2 | 48 | 80 | 24 |
| Z2 | 50 | 80 | 24 |
| Z2 | 55 | 85 | 24 |
| Z2 | 60 | 90 | 24 |
| Z2 | 65 | 95 | 24 |
| Z2 | 70 | 110 | 28 |
| Z2 | 75 | 115 | 28 |
| Z2 | 80 | 120 | 28 |
| Z2 | 85 | 125 | 28 |
| Z2 | 90 | 130 | 28 |
| Z2 | 95 | 135 | 28 |
| Z2 | 100 | 145 | 33 |
| Z2 | 105 | 150 | 33 |
| Z2 | 110 | 155 | 33 |
| Z2 | 120 | 165 | 33 |
| Z2 | 125 | 170 | 33 |
| Z2 | 130 | 180 | 38 |
| Z2 | 140 | 190 | 38 |
| Z2 | 150 | 200 | 38 |
| Z2 | 160 | 210 | 38 |
| Z2 | 170 | 225 | 44 |
| Z2 | 180 | 235 | 44 |
| Z2 | 190 | 250 | 52 |
| Z2 | 200 | 260 | 52 |
| Z2 | 210 | 275 | 56 |
| Z2 | 220 | 285 | 56 |
| Z2 | 240 | 305 | 56 |
| Z2 | 250 | 315 | 56 |
| Z2 | 260 | 325 | 56 |
| Z2 | 280 | 355 | 66 |
| Z2 | 300 | 375 | 66 |
| Z2 | 320 | 405 | 72 |
Note: Non‑standard customization is also available as indicated in the original images. All dimensions are in millimeters (mm).
