WX & WXD Series Small Cross-Shaft Universal Joint | 42CrMo Alloy Steel Machine Tool Cardan Coupling | Hand Socket Accessory

Model Number
Check below, custom

WXD1, WXD2, WXD3, WXD4, WXD5, WXD6, WXD7
WX1, WX2, WX3, WX4, WX5, WX6, WX7 UNCA6
UNCA8, UNCA10, UNCA12, UNCA14, UNCA16, UNCA18
UNCA20, UNCA25, UNCA30, UNCW10, UNCW12, UNCW14
UNCW16, UNCW20, UNKA10, UNKA12, UNKA14, UNKA16
UNKA20, UNKW10, UNKW12, UNKW14, UNKW16, UNKW20

Product Description

Precision Machine Tool Linkage: WX & WXD Small Cross-Shaft Universal Joints

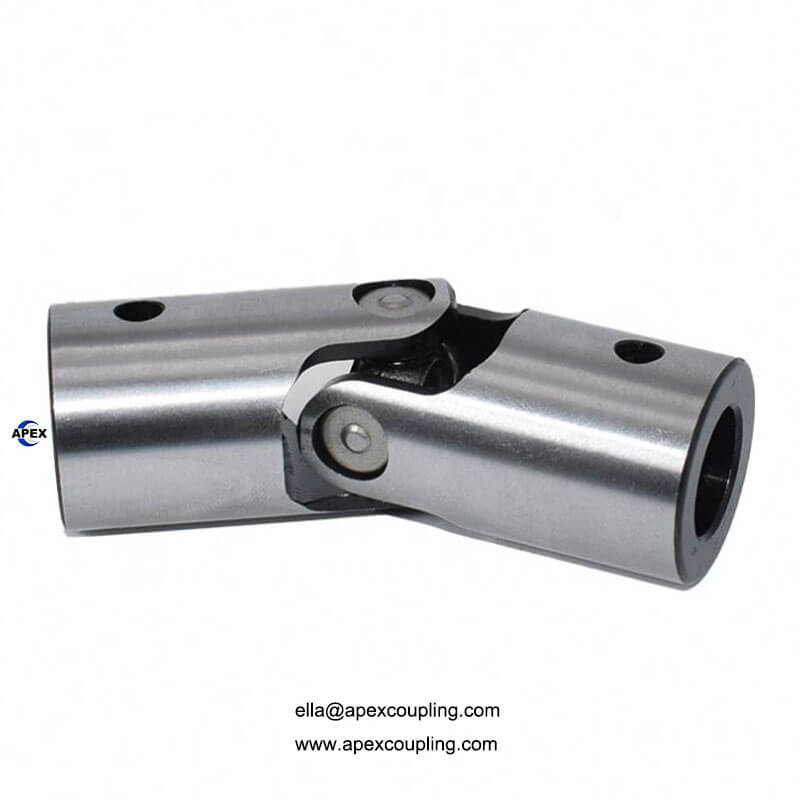

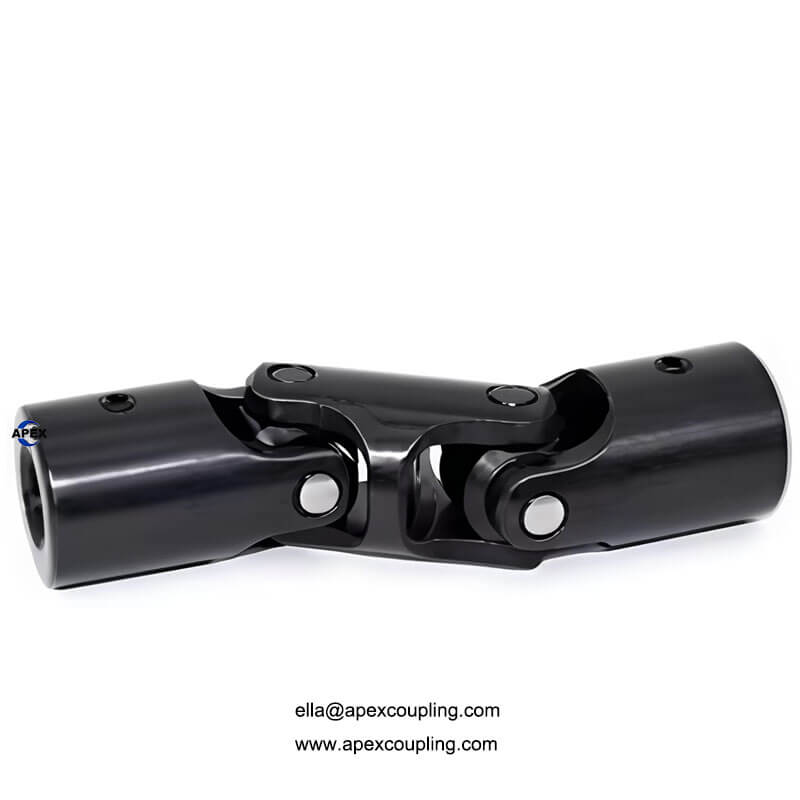

The WX (Single) and WXD (Double) Series Small Cross-Shaft Universal Couplings serve as foundational power transmission components within advanced machine tool assemblies and hand socket steering mechanisms. Forged from high-grade 42CrMo alloy steel, these compact yokes are engineered to connect two intersecting shafts sharing a spatial plane where angular misalignments are exceptionally severe. Fully rated to manage nominal transmission torques spanning from 11.2 N·m to 1120 N·m, the WX/WXD family maintains excellent rotational tracking and low backlash under dynamic working configurations.

Core Product Advantages

High-Grade 42CrMo Steel Core: Forged from structural 42CrMo alloy steel to ensure maximum yield strength, shock resistance, and long-term fatigue durability under harsh industrial loading.
Exceptional $45^\circ$ Angular Deflection: Expertly accommodates large angular working offsets up to $45^\circ$ per single section, allowing the transmission path to adjust dynamically during operation.
H7 Precision Finished Bores: Standard inner holes are ground to strict H7 tolerances across a stock diameter spectrum of 10mm to 42mm, guaranteeing high concentricity and vibration-free runtime.
Flexible Drive Geometry Customization: Finished attachment holes can be customized with parallel keyways, square sockets, or hexagonal profiles to fit hand tools or automated machine spindles.
Polished or Blackened Options: Available with a high-shine polished steel finish or an anti-corrosive chemical black oxide treatment to meet specific wear and aesthetic requirements.
Compact Outer Diameter Profiles: Space-saving footprint with outer diameter scales ranging from 16mm to 75mm, allowing easy integration into tight equipment enclosures.
Direct Manufacturer OEM/ODM Backing: Supported by Apexcoupling’s dedicated manufacturing facilities, we deliver scalable custom non-standard lengths and specialized shapes directly from the factory floor.

Technical Specifications Table

Attribute	Specification Details
Product Structure Family	WX Series (Single Joint) / WXD Series (Double Joint)
Primary Base Metallurgy	Premium Forged 42CrMo Alloy Steel
Nominal Torque Range	11.2 N·m to 1,120 N·m Dynamic Rating
Outer Diameter Bounds ( $D$ )	Compact 16 mm up to Heavy-Duty 75 mm
Inner Bore Limits ( $d$ )	10 mm up to 42 mm Finished Options
Max Allowable Deflection	$\le 45^\circ$ Operational Angle per Section
Internal Bore Tolerance	Ultra-Precise Machined H7 Specification
Surface Finish Choices	Smooth Mechanical Polishing / Chemical Black Oxide
Target Machinery Matches	Machine Tool Axes, Hand Tool Sockets, Packaging Lines

Universal Joints (Single and Double)

Model	Type	Outer Diameter (mm)	Length (mm)	Inner Diameter (mm)
UNKA8	Single	16	36	8
UNKA10	Single	20	42	10
UNKA12	Single	23	52	12
UNKA14	Single	25	59	14
UNKA16	Single	32	74	16
UNKA20	Single	36	87	20
UNAW8	Double	16	58	8
UNKW10	Double	20	67.5	10
UNKW12	Double	23	83	12
UNKW14	Double	25	94.5	14
UNKW16	Double	32	117.5	16
UNKW20	Double	36	139	20

Telescopic Couplings (WSP Series)

Model	Inner Diameter (mm)	Outer Diameter (mm)	Retracted Length (mm)	Extended Length (mm)
WSP-03GA	12	20	140	170
WSP-04GA	12	25	160	190
WSP-05GA	14	28	170	200
WSP-1GA	16	32	190	220
WSP-2GA	18	36	230	280
WSP-3GA	20	42	250	300
WSP-4GA	22	45	250	280
WSP-5GA	25	50	295	345
WSP-6GA	30	58	330	380
WSP-7GA	35	70	350	400
