Choosing Stainless Steel Jaw Couplings for Servo Drives

How to Select Stainless Steel Jaw Couplings for Servo Motors in Corrosive Environments

In modern motion control applications—such as CNC automated indexing, food packaging, and semiconductor manufacturing—selecting the right shaft coupling is essential for positioning accuracy and machine service life. When equipment operates under exposure to moisture, cutting fluids, or high-frequency motor reversals, conventional aluminum or iron couplings can succumb to corrosion or rotational play.

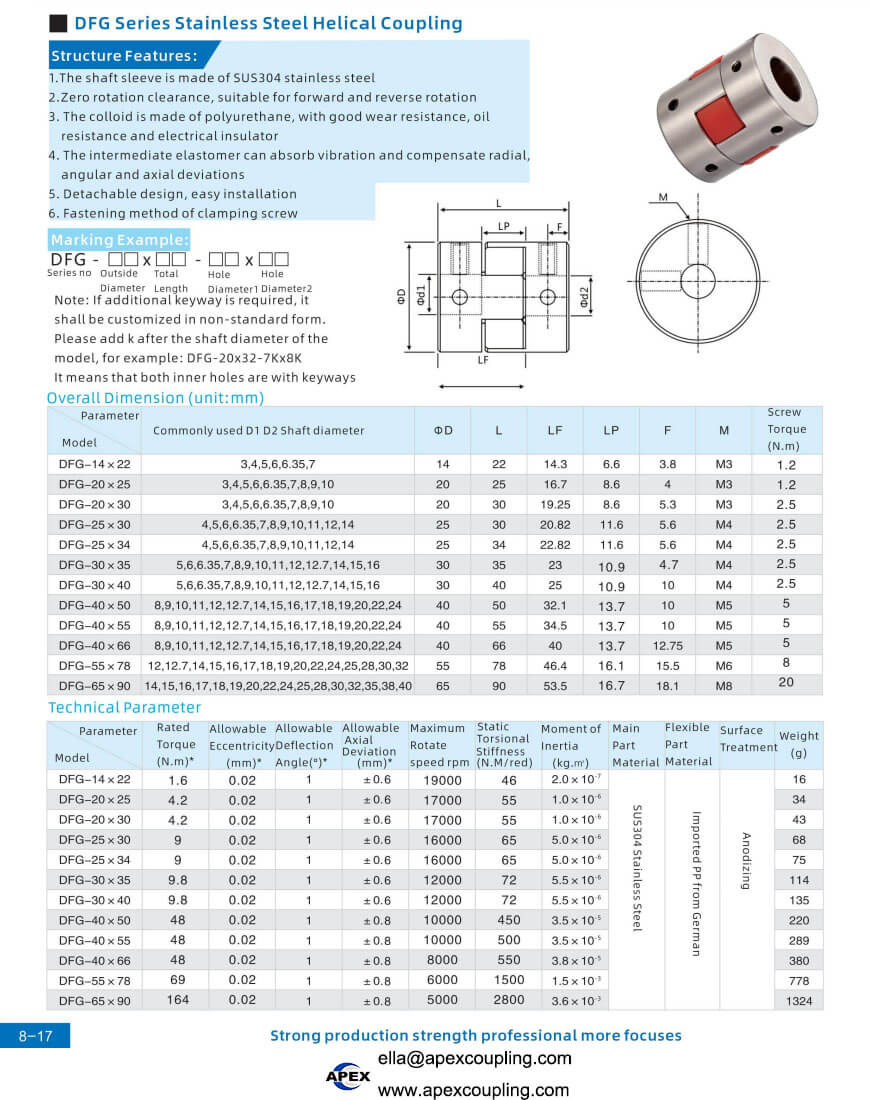

This is where stainless steel jaw couplings (such as the DFG series) excel. In this technical article, Apex Coupling explains the key mechanical features of DFG couplings and how to select them for your automation project.

1. What Makes a Stainless Steel Jaw Coupling Ideal for Motion Control?

A stainless steel jaw coupling consists of two SUS304 metal hubs interlocked with a elastomeric spider element (typically polyurethane). This 3-piece assembly provides distinct operational advantages:

Zero Backlash (Zero Rotational Clearance): The elastomeric spider is pre-compressed within the metal jaw curved claws, guaranteeing immediate movement transfer without lag during rapid bi-directional motor rotations.
Corrosion Resistance: SUS304 stainless steel resists rust, oxidation, and mild chemical washes, making it ideal for cleanrooms, food manufacturing, and outdoor equipment.
Vibration Dampening & Insulation: The polyurethane (PU) insert absorbs high-frequency drive vibrations, protects motor bearings, and provides electrical insulation between the input and output shafts.

2. Key Selection Criteria for DFG Series Couplings

When specifying stainless steel jaw couplings for B2B drive integration, consider the following parameters:

A. Operating Temperature and Environmental Conditions

The polyurethane insert in the DFG series operates reliably in temperatures ranging from -35°C to +80°C. It offers outstanding resistance to lubricating oils, hydraulic fluid, and physical wear compared to standard rubber spiders.

B. Fixing Method: Set Screw vs. Clamping Hub

Set Screw Type (DFG Series): Uses high-tensile positioning screws to secure the coupling sleeve onto the key or shaft flat. Compact and cost-effective for space-constrained motor mounts.
Clamping Type: Offers uniform 360-degree gripping force around the shaft for high-torque servo applications.

C. Misalignment Capabilities

Ensure your shaft alignment falls within the permissible compensation limits of the DFG coupling:

Radial Misalignment: Accommodated by the elastic spider cushion.
Angular & Axial Offset: Flexibly compensated without transmitting destructive side loads to motor bearings.

3. Why Source DFG Couplings from Apex Coupling?

At Apex Coupling, we maintain large inventories of semi-finished SUS304 hubs to ensure fast delivery for global B2B buyers and OEM machinery builders:

Direct Factory Supply: ISO9001 quality manufacturing with competitive tier pricing for volume orders.
Precision Bore Machining: H7 inner bore accuracy, custom keyways (K), and splined hole configurations per your CAD drawings.
Comprehensive Engineering Support: Paper and electronic selection catalogs, 2D/3D CAD models, and technical consultations available upon request.

Conclusion & Get a Quote

Upgrading to high-precision stainless steel jaw couplings eliminates positioning backlash, reduces motor maintenance, and ensures reliable torque transmission under harsh operating conditions.

Contact the technical sales team at Apex Coupling today to discuss your OEM requirements or request a custom selection catalog!
