T Series Polyurethane Hexagonal Cushion – T-Shaped Coupling Buffer Pad for Pumps

Factory Direct | Premium Polyurethane (PU) | T-Shaped Hexagonal Design | 95 Shore A Hardness | T45-T154 Sizes | Wear-Resistant, Oil-Resistant & Water-Resistant | Excellent Fatigue Strength & Impact Resistance | Maintenance-Free | OEM Customizable

The Apexcoupling T Series Polyurethane Hexagonal Cushion (also known as a T-shaped coupling buffer pad, water pump coupling cushion, or six-lobe elastic ring) is a high-performance elastomeric insert designed for T-type jaw couplings and water pump drive systems. Manufactured from premium polyurethane (PU) with a T-shaped hexagonal (six-lobe) design, this cushion pad delivers exceptional vibration damping, shock absorption, and misalignment compensation for pump drives and general industrial applications .

With a 95 Shore A hardness (±2A), excellent wear resistance, oil resistance, water resistance, and superior fatigue strength and impact resistance, the T Series cushion ensures stable mechanical performance and long service life . Available in a comprehensive range of sizes from T45 to T154, this buffer pad is the ideal replacement element for water pumps, centrifugal pumps, gear pumps, and general industrial coupling systems .

✅ Premium polyurethane material – excellent wear resistance, oil resistance, and water resistance . 95 Shore A hardness – high hardness, wear-resistant, stable mechanical performance . T-shaped hexagonal (six-lobe) design – good cushioning, elasticity, and vibration damping . T45-T154 sizes – comprehensive size coverage for most industrial pumps . Maintenance-free – no lubrication required . High fatigue strength and impact resistance – long service life . Quality assured – stable mechanical performance .

Key Technical Specifications

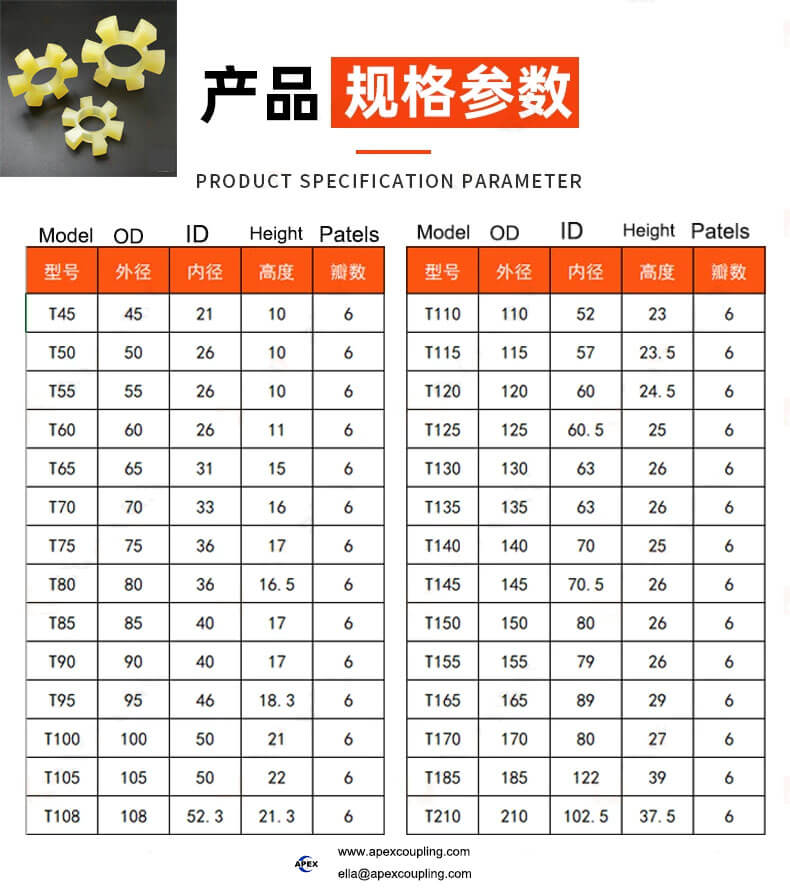

T Series – Model & Dimensions

📐 Additional sizes and custom dimensions available upon request. Contact our engineering team for custom sizing.

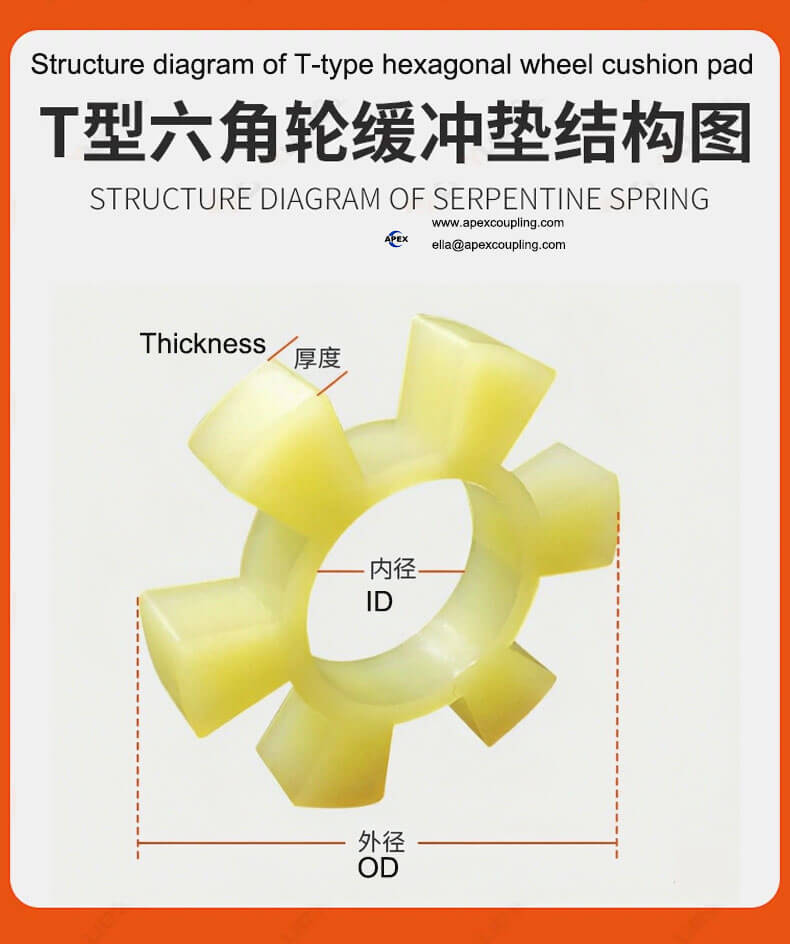

Product Structure

1. T-Shaped Hexagonal Body – Six-lobe (hexagonal) design with T-shaped cross-section for secure engagement with coupling jaws.

2. Polyurethane Material – Premium PU elastomer provides excellent wear resistance, oil resistance, water resistance, and elasticity.

3. 95 Shore A Hardness – High hardness ensures stable mechanical performance, good wear resistance, and long service life.

4. Precision-Molded Dimensions – Consistent quality and dimensional accuracy for reliable fit.

💡 How it works: The T Series hexagonal cushion fits between the two hubs of a T-type coupling or water pump coupling. The six-lobe (hexagonal) design engages with the jaws of the coupling hubs, transmitting torque while absorbing shock, dampening vibration, and compensating for misalignment. The T-shaped cross-section provides secure axial retention. The polyurethane material flexes elastically to absorb shock loads, extend equipment life, and reduce maintenance costs.

Features & Advantages

Applications

• Water Pumps – Centrifugal pumps, submersible pumps, irrigation pumps

• Industrial Pumps – Gear pumps, screw pumps, diaphragm pumps

• Coupling Systems – T-type jaw couplings, pump motor couplings

• Fan & Blower Drives – Industrial ventilation and air handling

• General Machinery – Light to medium-duty power transmission

• Agricultural Equipment – Irrigation systems, farm machinery

• Compressors – Small to medium air compressors

• Conveyor Drives – Light-duty material handling

Why Choose Apex Coupling for T Series Cushions?

FAQ

Q: What is a T Series hexagonal cushion?
A: A T Series hexagonal cushion (also called a T-shaped coupling buffer pad or water pump coupling cushion) is a polyurethane elastomer insert with a T-shaped hexagonal (six-lobe) design. It fits between the two hubs of a T-type coupling to transmit torque, absorb shock, and dampen vibration in pump and motor drive systems.

Q: What material is used?
A: The cushion is manufactured from premium polyurethane (PU) – offering excellent wear resistance, oil resistance, water resistance, high fatigue strength, and impact resistance.

Q: What is the hardness?
A: The standard hardness is 95 Shore A ± 2A – providing high wear resistance and stable mechanical performance.

Q: What sizes are available?
A: Available sizes range from T45/40 to T154 – covering most standard T-type coupling and water pump applications.

Q: What is the temperature range?
A: The standard operating temperature range is -40°C to +100°C.

Q: Does the cushion require lubrication?
A: No. The T Series cushion is maintenance-free – no lubrication required.

Q: Is the cushion oil and water resistant?
A: Yes. The polyurethane material is resistant to oil, water, and many chemicals.

Q: What are the common applications?
A: Water pumps, centrifugal pumps, industrial pumps, fan drives, conveyor systems, and general industrial machinery.

Q: Can I get a custom cushion?
A: Yes. We offer OEM customization – custom sizes and Shore hardness available.

Request a Quote

Send us your model (T50, T65, T80, T100, etc.), quantity, and any customization requirements. Our engineers will provide a quotation within 24 hours.
