SWC225BH Cardan Shaft Universal Joint Coupling | Heavy Duty Welded Telescopic Flange Shaft Assembly (Nominal Torque 56 kN·m)
Model Number
Check below, custom
SWC225BH
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
[Header: Heavy-Duty Industrial Power Transmission: SWC225BH Telescopic Flange Cardan Shaft Coupling Assembly]
The Apexcoupling SWC225BH Heavy-Duty Universal Joint Cardan Shaft Assembly (BH Series)
is engineered for high-torque industrial machinery operating under continuous, high-impact,
and severe multi-angle shaft misalignments. Featuring a 225 mm rotation diameter (D) anddelivering a massive nominal torque capacity of 56 kN m, this welded telescopic cardan shaft
provides seamless, zero-latency power transmission across steel rolling mills, heavy metallurgical equipment, paper machinery, CNC machine tools, and industrial drive trains
Forged from premium quenched and tempered structural steel, the SWC225BH utilizes multi-row needle roller bearings in its universal spider assembly to withstand extreme radial loads and axial forces. Each shaft undergoes precision dynamic balancing testing to eliminate rotational vibration, ensuring quiet, high-speed performance and long operational life.
[Core Product Advantages / Unique Selling Points]
Forged Steel Yokes & Heat-Treated Splines: Fork yokes are manufactured from high-strength forged steel with full heat treatment (quenching and tempering), while spline shafts undergo induction hardening for maximum torsional fatigue resistance.
Multi-Row Needle Bearing Spider Assembly: Universal joint journal cross assemblies feature multi-row needle bearings with built-in re-greasing nipples, providing exceptional wear resistance under high torque.
Dynamic Balancing Verification: Every shaft assembly undergoes strict dynamic balancing to guarantee minimal vibration, reduced bearing strain, and low noise during high-rpm operation.
Welded Telescopic & Multi-Flange Configurations: Available in standard telescopic (BF, DH, CH) and non-telescopic (WH, WF, WD) formats with square, round, end-tooth, or key-way flange connections.
Industrial Anti-Corrosion Paint: Passivated and coated with high-durability industrial spray paint (standard Safety Orange or Matte Black) to prevent rust in corrosive or outdoor operating environments.
Custom Measurement Support: Manufactured against strict dimensional verification (flange OD, spigot/pilot diameter, bolt circle pitch, collapsed length) to guarantee drop-in replacement accuracy.
Other size SWCBH series cardan shaft pls check products catalog here:
https://www.apexcoupling.com/products/shaft-coupling/cardan-shaft/
SWC225BH cardan shaft, SWCBH universal joint coupling, heavy duty cardan shaft, welded telescopic cardan shaft, flange universal joint assembly, industrial universal drive shaft, 56 kNm cardan coupling.

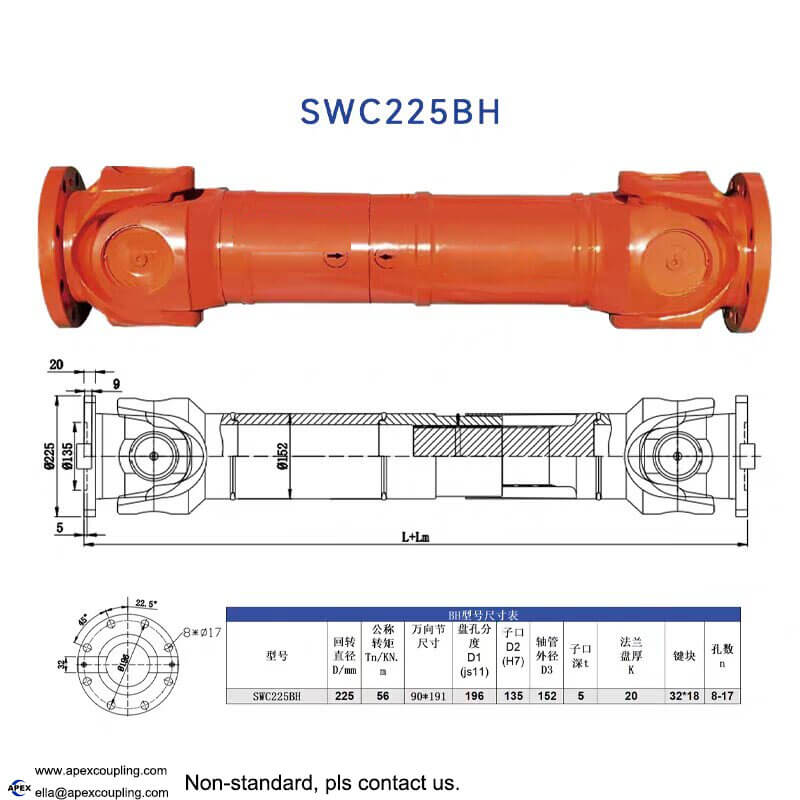

Product Show
SWCBH universal joint coupling
