Steel Ball Type Overload Torque Limiter Modular Safety Coupling Coupler Pin
Model Number
Custom
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
| Parameter Category | Specification / Value |
|---|---|
| Product Type / Title | Steel Ball Type Overload Torque Limiter Modular Safety Coupling |
| Specification | -05mm |
| Model | Standard (Custom processing not offered) |
| Color | Black |
| Material | 45# Steel |
| Shaft Hole Form | Round Hole |
| Maximum Outer Diameter | 750 mm |
| Torque Setting | 0.1 – 16000 N·m |
| Inner Hole Accuracy | H7 |
| Overload Accuracy | 3% |
| Connection Method | Shaft-to-Shaft and Shaft-to-Flange |
| Reset Method | Manual |
| Scope of Application | Industrial Machinery |
| Maximum Speed | 5000 RPM |
| Brand | Apexcoupling |

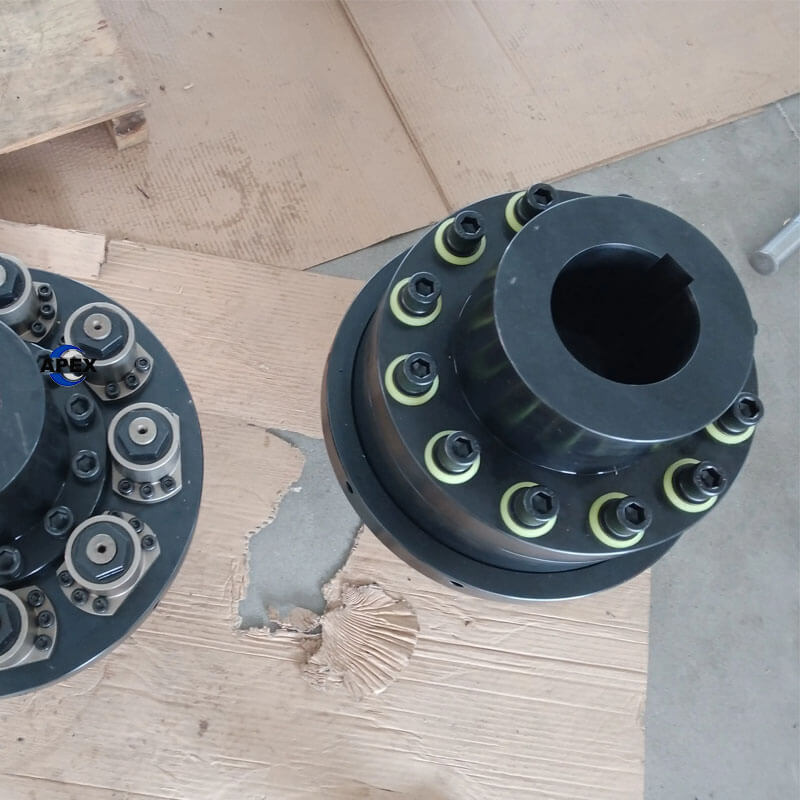

Product Show
Custom Safety Coupling
