Dynamic Power Shock Isolation: Rotex Curved Jaw Flexible Couplings

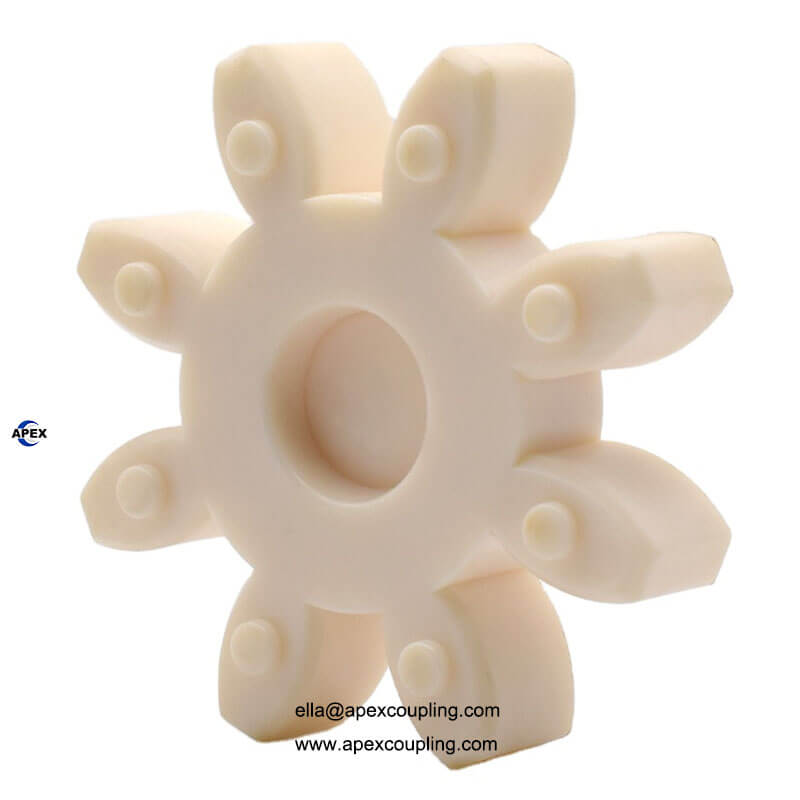

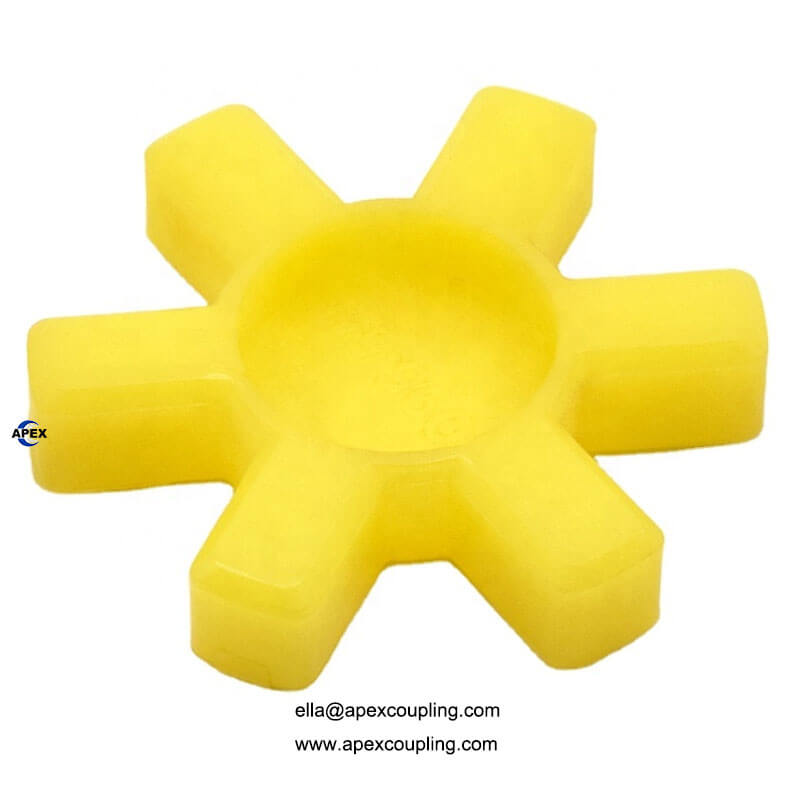

The Rotex Series Flexible Jaw Coupling stands as the global engineering benchmark for highly efficient, vibration-isolating mechanical power transmission across advanced servo control networks and heavy industrial equipment. Composed of two precision-machined metal hubs locking a premium molded polyurethane elastic rubber pad element , the Rotex design utilizes a unique curved tooth profile to ensure uniform compression rather than shear loading. Rated at a robust continuous torque of 100 N·m and built to thrive under typical motor infrastructure speeds up to 1,000 RPM, this flexible solution smoothly compensates for multi-axis misalignments while preserving critical shaft bearing surfaces from fatigue failure.

Core Product Advantages

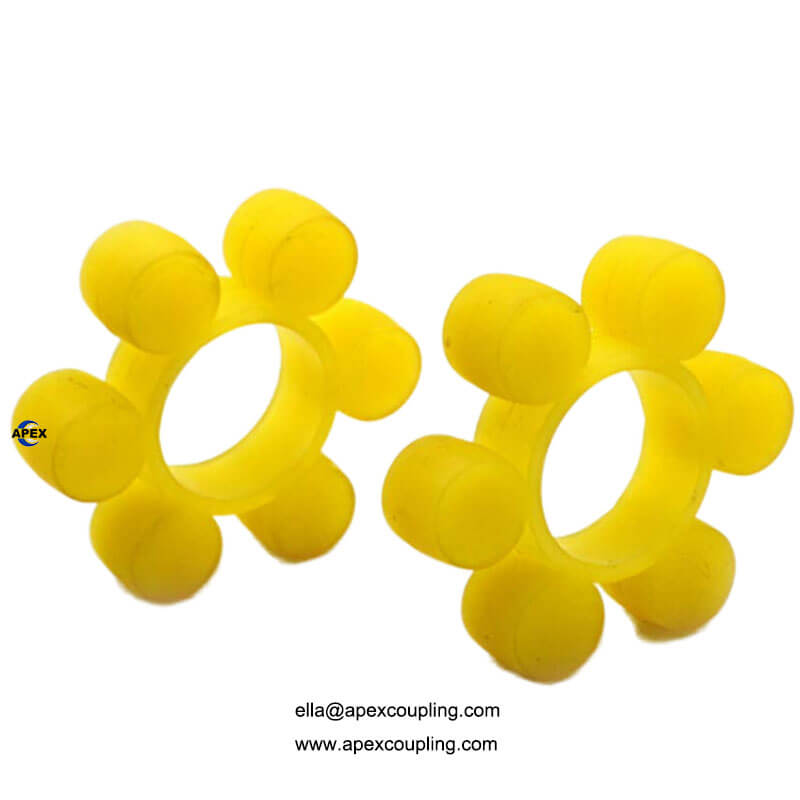

• Premium Hardness-Selectable Polyurethane: Outfitted with high-grade imported PU elements displaying incredible tensile memory, massive tear strength, and zero susceptibility to premature oil or chemical softening.

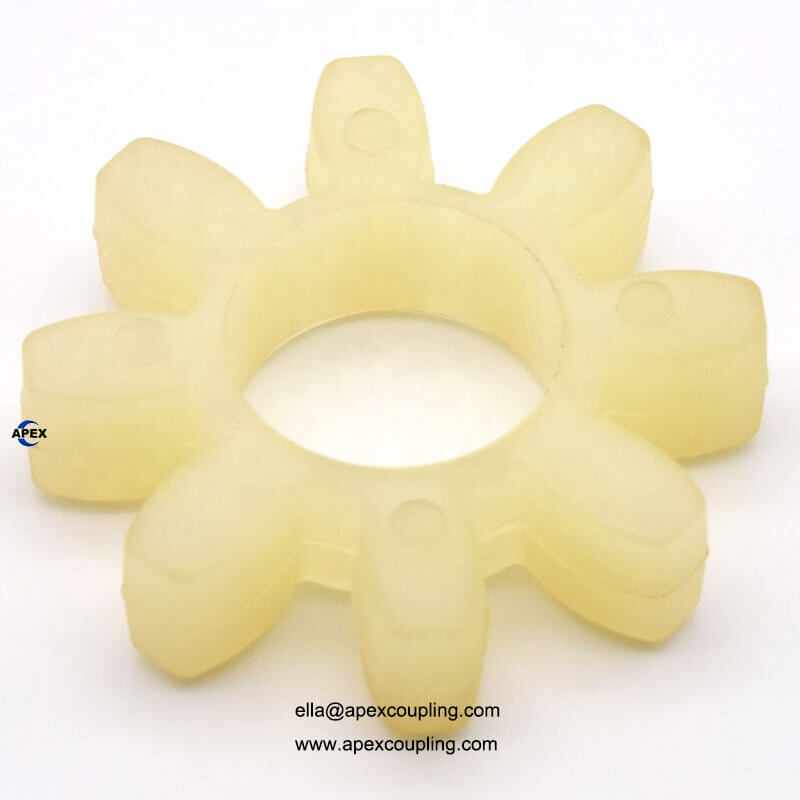

• Curved Jaw Mechanical Geometry: The curved tooth design spreads force over a larger operational area under load, minimizing tooth edge wear and offering a reliable, long-term backlash-free transmission life.

• 100 N·m Rated Torque Baseline: Precision-balanced matrix ensures stable torque handling, absorbing high starting loads and intense rotational shock spikes easily.

• 3-Year Industry-Leading Warranty: Engineered to premium standards, our Rotex housings and elements are backed by an elite 3-year comprehensive warranty pool.

• Standard 20mm Bore Adaptability: Features a default 20mm Bore Diameter setup, seamlessly customizable to wider internal diameters or specific clamping slots via our tooling floor.

• Broad Multi-Market Deployment: Universally trusted inside Building Material Shops, Energy & Mining Operations, Machinery Repair Depots, and industrial processing plants.

• Flexible OEM/ODM/OBM Sourcing: We support full drawing-based mold customization, allowing clients to request specific Shore Hardness ratings (e.g., 92 Sh-A, 98 Sh-A) or custom branding layouts.

Technical Specifications Table
