Precision Universal Joint Coupling – Single, Double & Telescopic Cardan Shaft

The precision universal joint coupling from Apexcoupling is designed for high-performance power transmission where angular misalignment and variable shaft distance are required. This advanced cardan shaft is available in single, double, and telescopic structures, offering flexible solutions for various industrial applications.

As a professional universal joint manufacturer, we provide high-precision and durable universal joint coupling products with customizable configurations.

What is a Universal Joint Coupling?

A universal joint coupling (also known as a cardan shaft) is used to transmit torque between shafts with an angular difference. This precision universal joint ensures smooth motion even when shafts are not aligned.

Key Features

• Supports angular misalignment up to 45° per joint
• Available in single, double, and telescopic types
• High torque transmission with minimal backlash
• High concentricity and stable operation
• Compact design with flexible installation
• Long service life and low maintenance

This precision universal joint coupling is ideal for dynamic transmission systems.

🔹 Multiple Structural Options

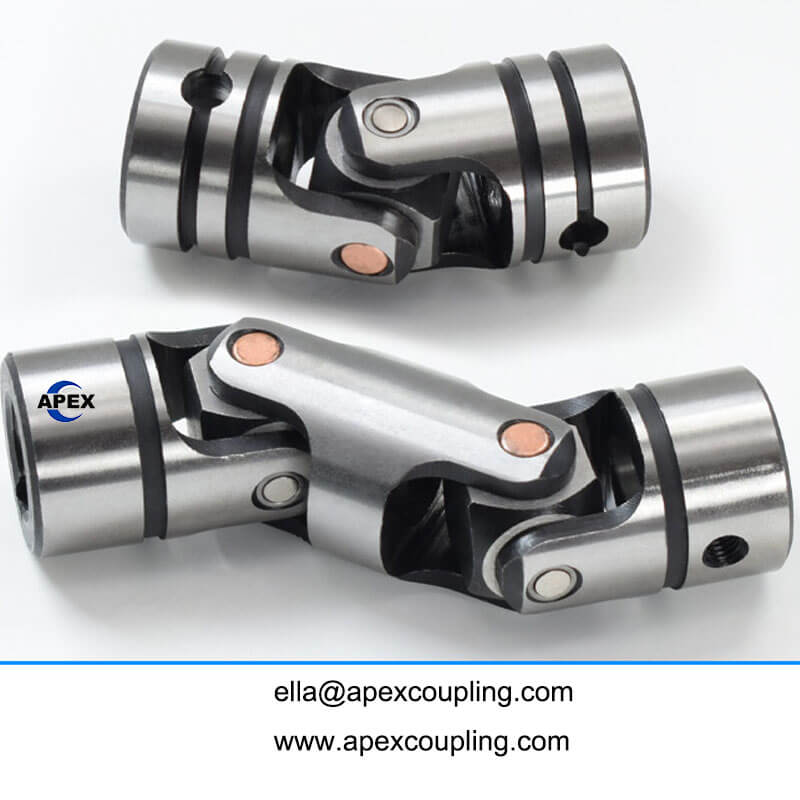

• Single Universal Joint (CPWA)
  Simple structure for basic angular transmission

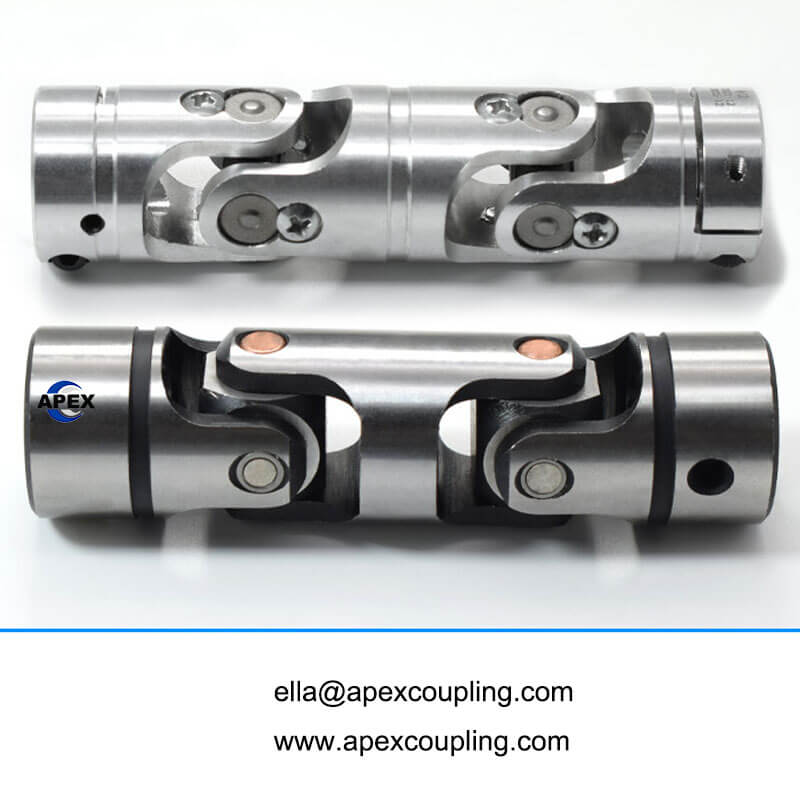

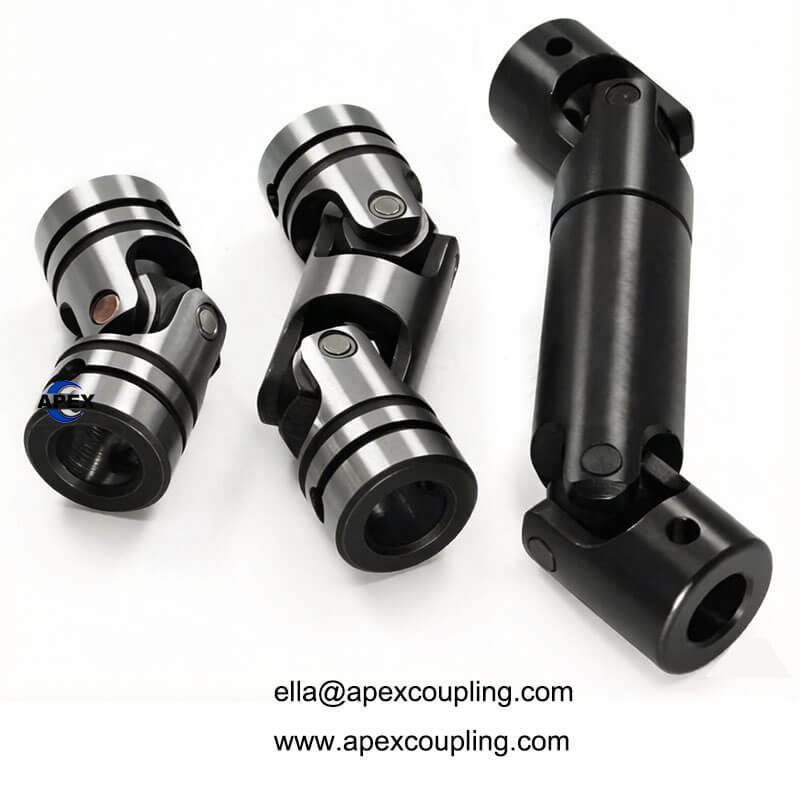

• Double Universal Joint (CPWW)
  Ensures constant velocity transmission

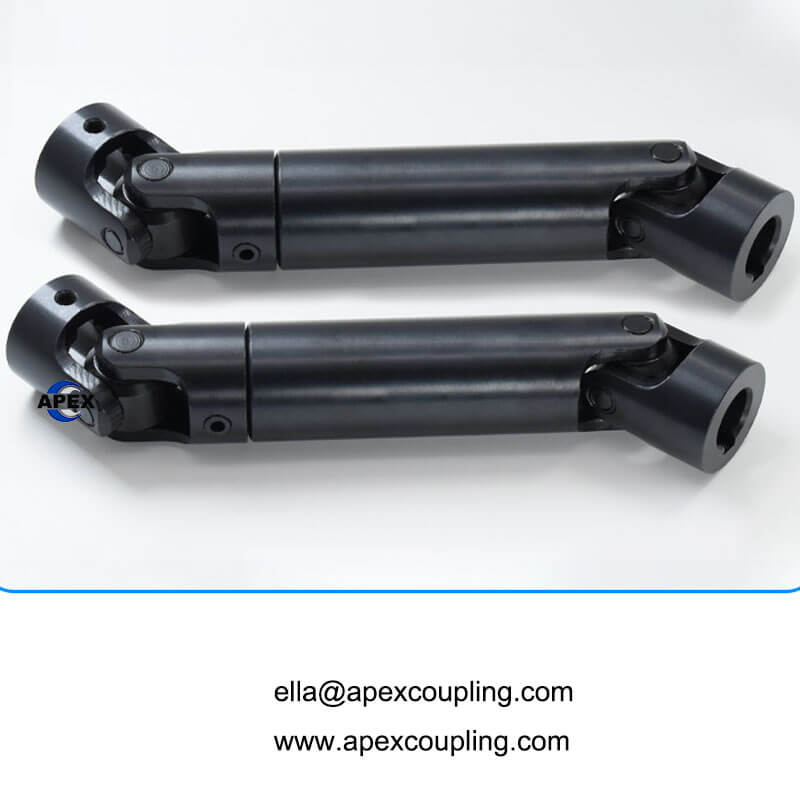

• Telescopic Universal Joint (WSP)
  Adjustable shaft length for variable distance applications

🔹 High-Quality Materials

• 42CrMo alloy steel for high strength and durability
• Aluminum alloy options for lightweight applications
• Heat-treated components for extended lifespan

🔹 Bearing Options

This cardan shaft coupling is available with:

• Sliding bearing (max speed up to 1000 RPM)
• Needle roller bearing (max speed up to 4000 RPM)

👉 Needle bearing design ensures smoother rotation and higher efficiency.

🔹 Performance Advantages

• High torque capacity (11.2 – 1120 N·m)
• Low clearance and high precision
• Excellent wear resistance
• Stable performance under dynamic load
• Suitable for high-speed transmission

🔹 Bore & Connection Types

• Round bore
• Keyway bore
• Hexagonal bore
• Square bore
• Set screw or quick locking options

🔹 Applications

This universal joint coupling is widely used in:

• CNC machinery
• Automation equipment
• Packaging machines
• Printing machinery
• Industrial transmission systems
• Robotics and mechanical systems

🔹 Customization Services

As a trusted cardan shaft manufacturer, Apexcoupling supports:

• Custom shaft length (telescopic travel)
• Special bore types and sizes
• Material customization
• OEM / ODM production

🔹Why Choose Apexcoupling?

• ✅ High precision CNC manufacturing
• ✅ Multiple structure options
• ✅ Fast delivery with stock available
• ✅ Strict quality control
• ✅ Global export experience

🔹Get a Quote Now

Looking for a reliable universal joint coupling manufacturer?

🌐 https://www.apexcoupling.com/
📩 ella@apexcoupling.com
📱 WhatsApp: +86 13437856962

Send your drawings today!
