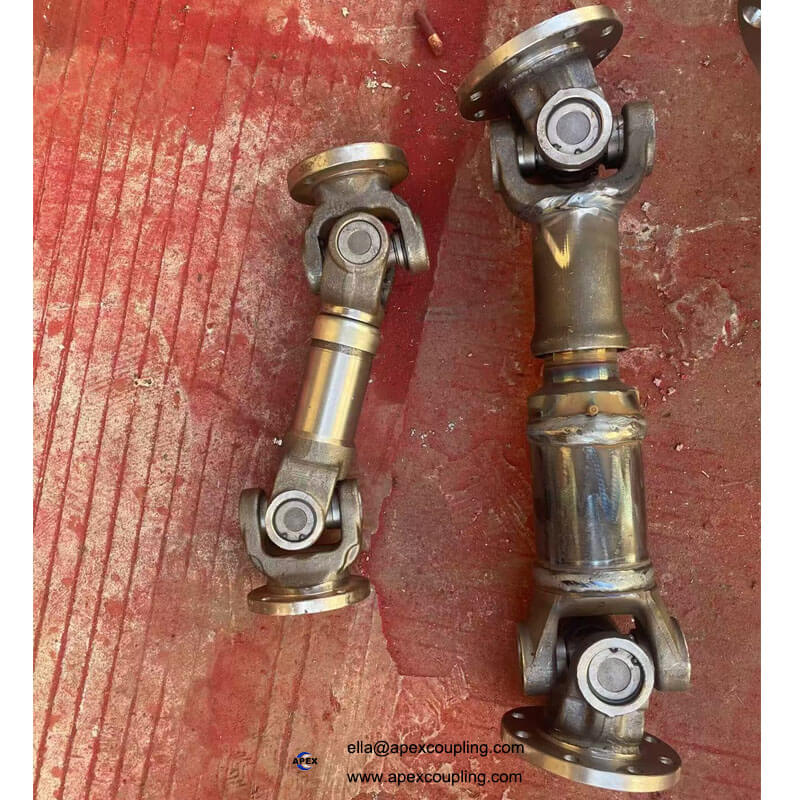

High Precision & Smooth Power Delivery: Industrial Flange Cardan Shaft Universal Joint

The Apexcoupling Precision Single Structure Cardan Shaft Universal Joint Flange Coupling delivers a compact, high-performance power transmission link designed to bridge operational misalignments with zero slippage. Engineered for light to mid-scale automated machinery, this steel universal joint ensures steady angular velocity and reliable torque tracking across non-collinear rotating shafts. By utilizing an integrated mechanical flange interface, this coupling simplifies mounting alignments and securely links drive motors to output shafts in food processing assembly lines, textile setups, and high-speed packaging plants.

As detailed in the technical profile in cardan shaft, this Single structure cardan coupling is manufactured using premium-grade steel to provide high fatigue resistance and solid torsional stiffness. The system is fully optimized according to the Metric measurement system, featuring a precise Bore Diameter of 10 mm, a standard structural Length of 200 mm, and an expansive Operating Angle of 35° to easily manage substantial layout offsets.

Core Product Advantages / Unique Selling Points

• Optimized Single Section Structure: Provides a highly reliable, compact layout for rigid torque transfer across tight mechanical footprints.

• High-Grade Steel Construction: Forged from premium industrial steel to withstand continuous rotational stress, reducing wear and expanding component life cycles.

• Expansive 35° Operating Deflection: Effortlessly handles severe angular offsets up to 35 degrees, providing outstanding installation flexibility.

• Secure Integrated Flange Interface: Designed for stable bolt-on mounting, ensuring excellent concentricity and minimizing rotational vibration runout.

• Precise 10mm Bore Engineering: Built with a highly accurate 10 mm bore diameter and 200 mm length profile, matching standard factory automation inputs.

• Multi-Industry Field Adaptability: Perfectly configured to meet the sanitary and precision demands of Food & Beverage Factories, Garment Shops, and Machinery Repair Shops.

• Full Factory Customization Suite: Supported by our comprehensive OEM, ODM, and OBM production pipelines out of Guangdong, China, allowing customized bores, lengths, and torque specifications.

Technical Specifications Table
