[Header: Heavy-Duty Shock Absorption & Reversible Motion: LX (HL) & LXZ (HLL) Elastic Pin Coupling Series]

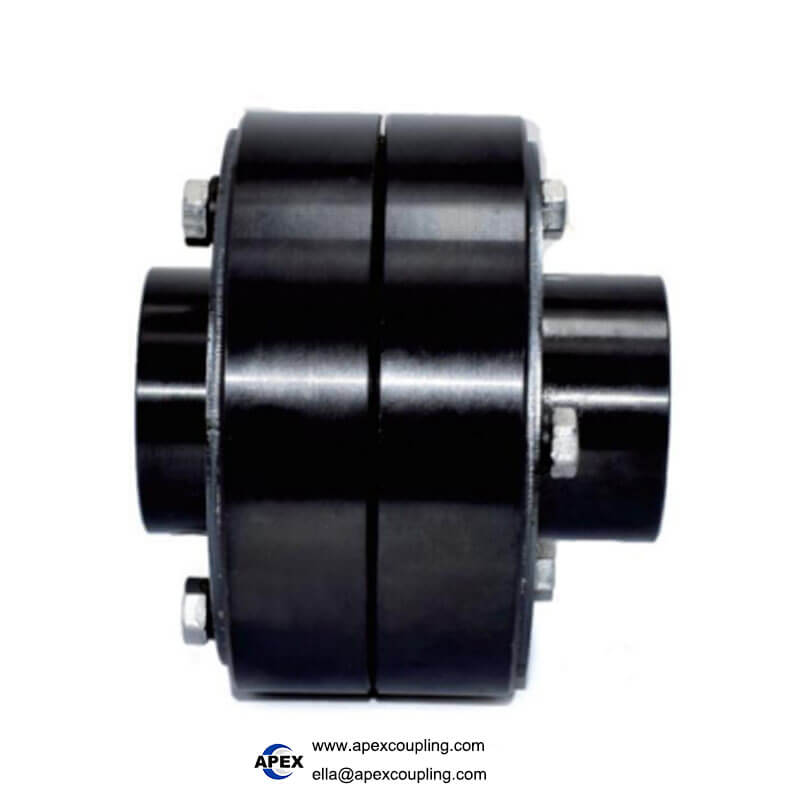

The Apexcoupling LX (HL) Standard & LXZ (HLL) Brake Wheel Type Elastic Pin Coupling Series is designed for heavy industrial machinery requiring high torque transmission, superior vibration damping, and large axial float allowance. Built in strict accordance with GB/T5014-2003 (succeeding the original GB5015-85 standard), this series incorporates high-strength nylon elastic sleeves (bushes) fitted onto precision steel pins to transmit power seamlessly between coaxial shafts.

Forged from premium 45# carbon steel with quenched cylindrical brake drum options on the LXZ (HLL) model, these couplings excel in environments with frequent start-stops, high-and-low speed reversing motions, and mildly corrosive ambient conditions. Operating reliably across temperatures from -20°C to +70°C, they provide an ideal drive connection for hoists, cranes, winches, heavy conveyors, and industrial machinery drives.

[Core Product Advantages / Unique Selling Points]

• High-Strength Wear-Resistant Nylon Bushes: Elastic elements are injection-molded from specialized nylon, offering high tensile strength, wear resistance, and excellent performance in corrosive working environments.

• Quenched Steel Brake Wheel Option (LXZ / HLL): Features a surface-quenched cylindrical brake drum/disc to provide high surface hardness and long-term wear resistance when paired with industrial brake shoes.

• Large Axial Float & Misalignment Compensation: Allows generous axial movement while buffering shock loads, absorbing mechanical vibrations, and mitigating shaft misalignments.

• Symmetrical & Reversible Maintenance-Friendly Design: Symmetrical hub structure allows easy, two-way sleeve replacement without moving the connected equipment or re-aligning the drive shafts.

• 45# Carbon Steel Construction: Machined from high-grade 45# steel round bar with black oxide passivation or natural polished finish for high torsional stiffness and impact resistance.

• Flexible Bore Fitment per GB/T3852-1997: Supports arbitrary combinations of half-coupling shaft holes (Types Y, J, Z) and keyways (Types A, B) for exact shaft matching.

• Direct Factory Supply: Backed by extensive semi-finished inventory in Guangdong for short lead times, with complete OEM, ODM, and OBM custom machining support.

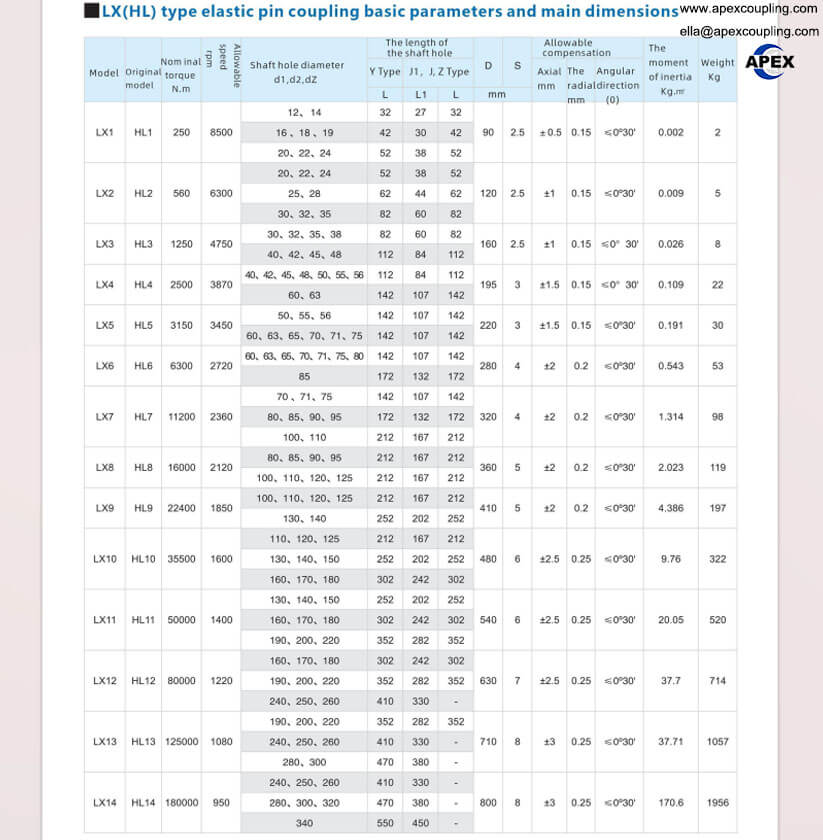

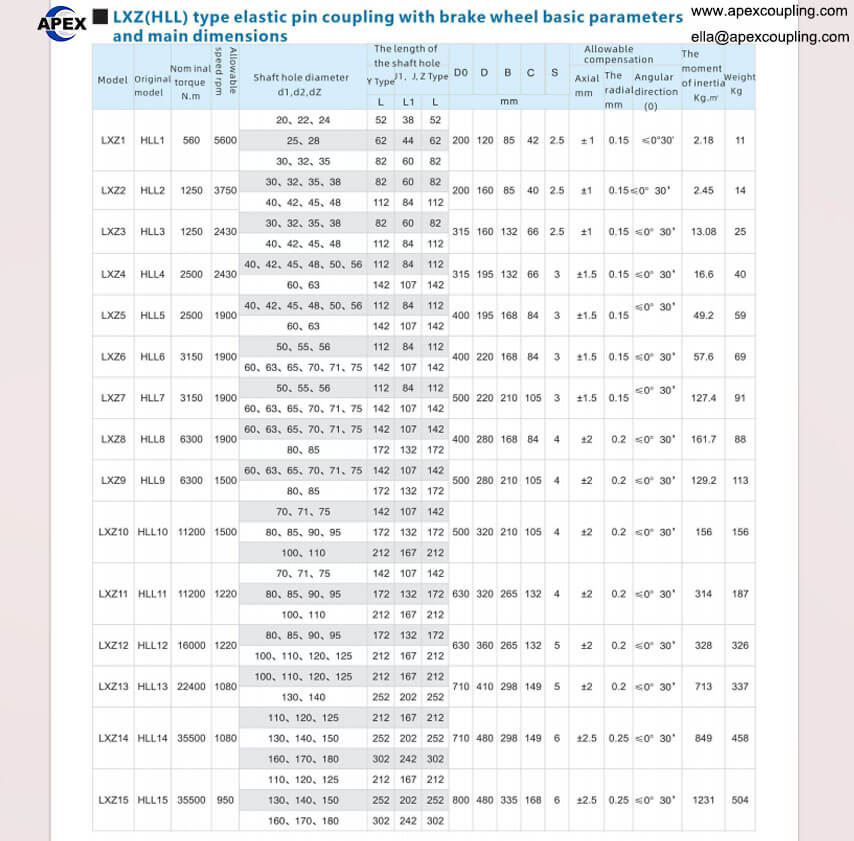

[Technical Specifications Table]
