LX Elastic Pin Coupling – 45# Steel Nylon Pin Flexible Coupling for High Torque & Servo Motor Drives

Factory Direct | H7 Precision Bore | Nylon Elastic Pins | Custom Bores, Keyways & Surface Finishes

Product Overview

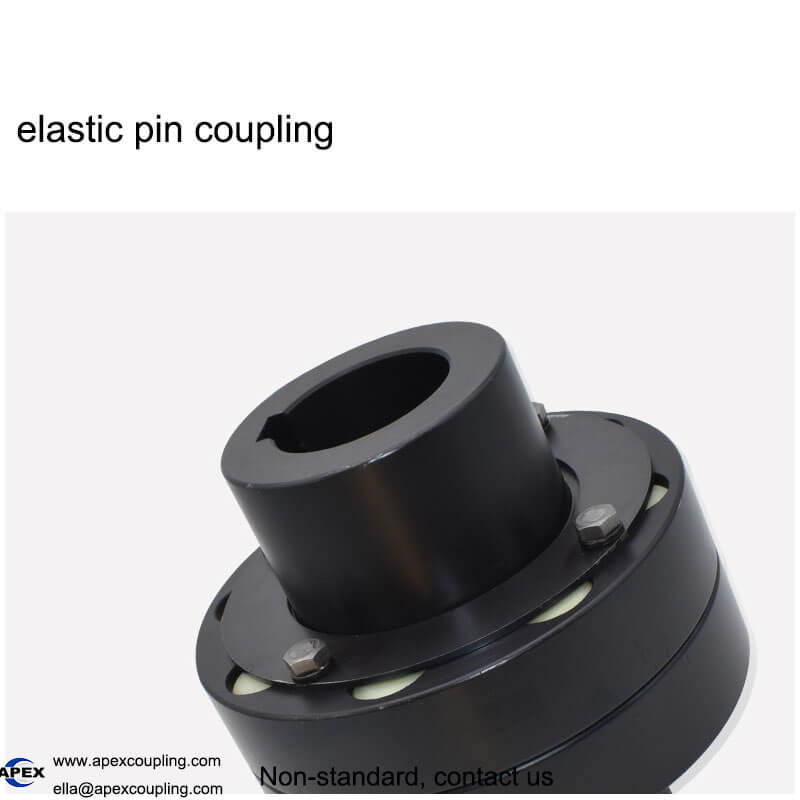

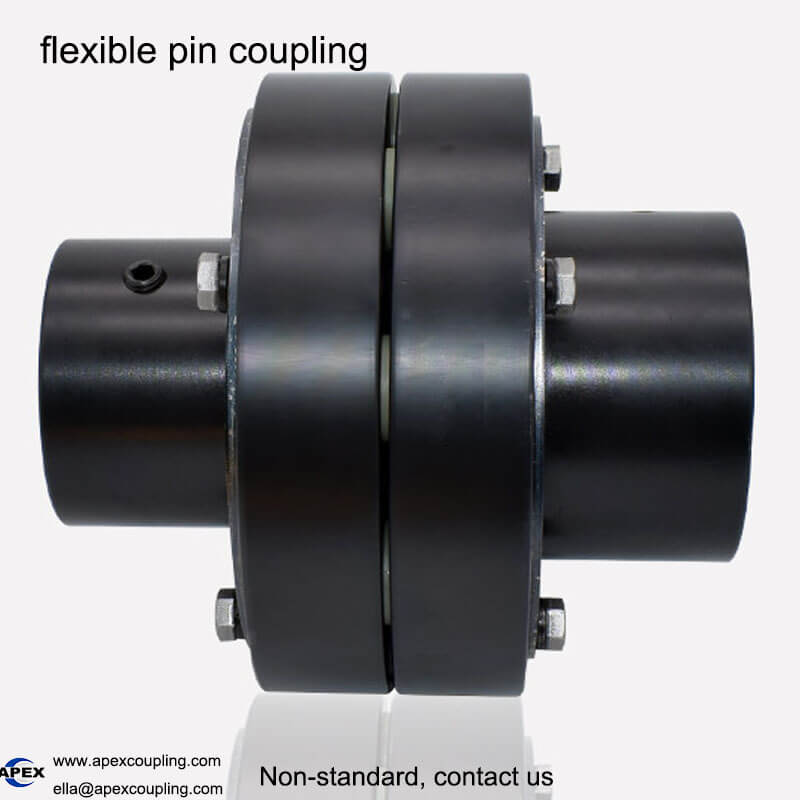

The LX Elastic Pin Coupling is a robust and versatile flexible shaft coupling designed for reliable torque transmission, vibration damping, and misalignment compensation. Manufactured with high-quality 45# steel hubs and nylon elastic pins, this coupling delivers high strength, excellent wear resistance, and stable performance in demanding industrial environments.

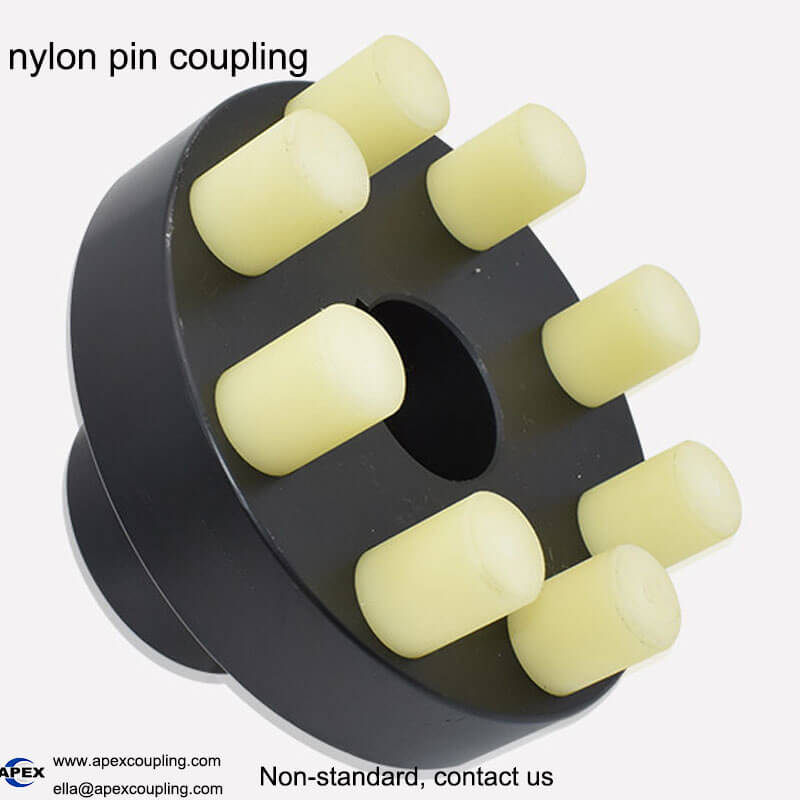

The elastic element is made of nylon, offering high strength, good wear resistance, self-lubricating properties, lightweight construction, and low noise. It is also suitable for corrosive environments. The steel brake wheel outer surface is quenched for improved hardness and durability. The half-coupling bore and keyway types and dimensions follow GB/T3852-1997, and the two half-couplings can be combined with different shaft hole types as needed.

With an H7 precision bore, the LX coupling ensures a close shaft fit, high concentricity, and efficient power transmission. Its simple structure makes installation and removal easy, reducing maintenance time and cost. The LX series is an ideal choice for CNC machine tools, packaging machinery, metallurgical equipment, photovoltaic systems, woodworking machinery, chemical equipment, semiconductor equipment, printing machinery, railway track equipment, and general industrial drive systems.

📧 Get a Quote: ella@apexcoupling.com | WhatsApp/WeChat: +86 13431039760

Key Features

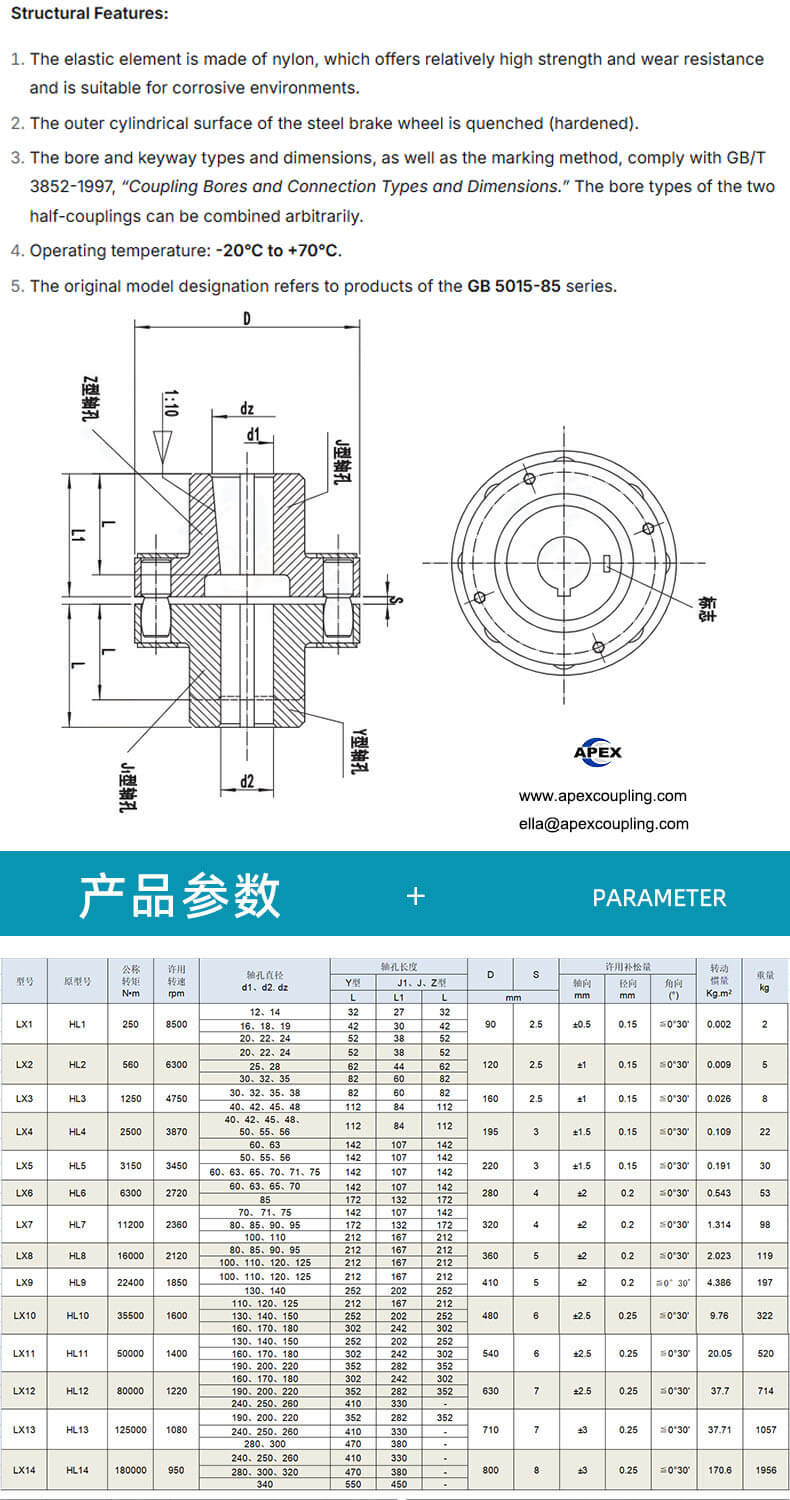

Technical Specifications

Model Designation & Selection Example

The LX elastic pin coupling is designated as follows:

LX – Outer Diameter × Bore d1 × Length L1 – Bore d2 × Length L2

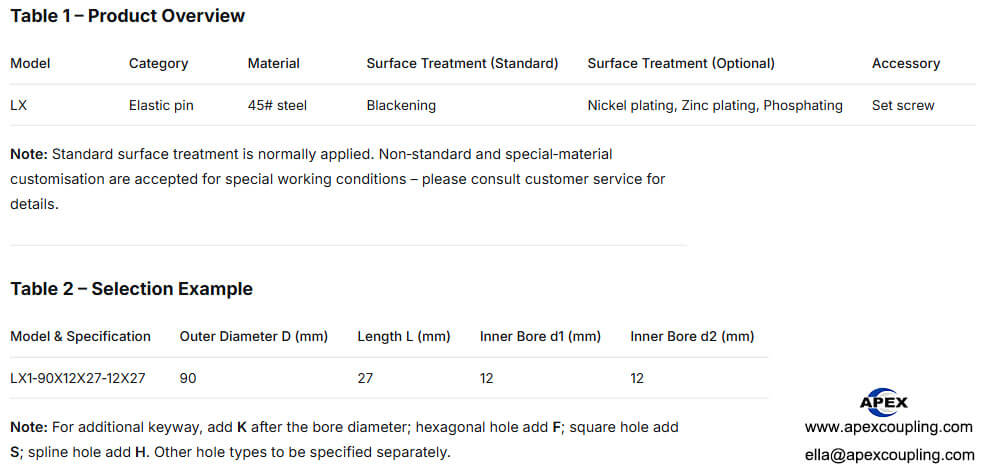

Selection Example:

Custom Bore Options:

When ordering, add the following suffix after the bore size:

• K – Keyway (e.g., 12K)

• F – Hexagon bore (e.g., 12F)

• S – Square bore (e.g., 12S)

• H – Spline bore (e.g., 12H)

Other bore profiles are available according to customer drawings.

Applications

The LX elastic pin coupling is widely used in:

• CNC Machine Tools – Milling, turning, drilling, and machining centers

• Servo Motor Drives – Flexible connection with vibration damping

• Food Packaging Machinery – High-speed packaging and filling lines

• Metallurgical Equipment – Heavy-duty industrial drives

• Photovoltaic Power Generation – Solar tracking and positioning systems

• Woodworking Machinery – Routers, saws, and edge banding machines

• Chemical Industry – Corrosion-friendly nylon pins

• Semiconductor Equipment – Precision motion control systems

• Food Machinery – Hygienic and reliable power transmission

• Printing Machinery – High-speed printing and converting equipment

• Railway Track Equipment – Durable and stable coupling solutions

Why Choose Apexcoupling?

🏭 Factory Direct – Integrated manufacturing and trading, competitive pricing

🔩 Premium 45# Steel – High strength, quenched brake wheel, stable performance

🧵 Nylon Elastic Pins – Wear-resistant, self-lubricating, low noise, corrosion-friendly

📐 H7 Precision Bore – High concentricity and efficient torque transmission

✅ ISO Certified Quality – Strict quality control from raw material to finished product

🛠️ Full Customization – Bores, keyways, hexagon, square, spline, special materials, and surface finishes

📦 Fast Delivery – Standard models in stock, ready for shipment

💬 Expert Technical Support – We help you select the right coupling for your application

Custom & Non-Standard Orders

We support complete customization for the LX elastic pin coupling:

• Custom bore diameters and lengths

• Keyway, hexagon, square, and spline bores

• Special materials for specific working conditions

• Optional surface treatments: blackening, nickel plating, zinc plating, phosphating

• OEM/ODM with your branding

• Drawing-based production

📧 Send your drawing or requirements to: ella@apexcoupling.com

Get a Quote Today

Ready to order or need more information? Contact us directly:

📧 Email: ella@apexcoupling.com
📱 WhatsApp / WeChat: +86 13431039760
🌐 Website: www.apexcoupling.com

We reply within 24 hours with pricing, availability, and technical recommendations.
