Industrial Rubber Timing Belt – MXL/L/H/XH/XXH, OEM Customizable, 0.08″-1.25″ Pitch
Model Number
Check below, custom
019, Industrial Rubber Timing Belt
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
Industrial Rubber Timing Belt – MXL/L/H/XH/XXH, 0.08″-1.25″ Pitch, OEM Customizable
Factory Direct | Premium Black Rubber | Fiberglass Tension Cord | ANSI/RMA Standards | MXL, XL, L, H, XH, XXH Pitches | 0.08″-1.25″ Pitch | Custom Length & Width | OEM/ODM | 3-Year Warranty
The Apexcoupling Industrial Rubber Timing Belt series offers a comprehensive range of high-performance synchronous belts designed for reliable power transmission in demanding industrial applications. Manufactured from premium black rubber with fiberglass tension cords for exceptional tensile strength and dimensional stability, these belts deliver accurate, slip-free synchronous transmission with constant rotation rate during operation.
Available in MXL, XL, L, H, XH, and XXH pitch profiles per ANSI/RMA standards, with customizable length and width to meet specific application requirements, these rubber timing belts are the ideal solution for conveying systems, packaging machinery, printing equipment, textile machinery, factory automation, and general industrial drives. OEM/ODM customization is fully supported – custom lengths, widths, special coatings, and surface treatments available.
✅ ANSI/RMA standard pitch profiles – MXL (0.080″), XL (0.200″), L (0.375″), H (0.500″), XH (0.875″), XXH (1.250″). Premium black rubber – excellent wear resistance, heat resistance, and impact resistance. Fiberglass tension cord – high tensile strength, dimensional stability, zero stretch. Custom length & width – OEM flexibility. OEM/ODM support – special coatings, surface treatments, custom profiles. 3-year warranty – quality assured.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Apexcoupling |
| Product Name | Industrial Rubber Timing Belt |
| Material | Premium black rubber – excellent wear resistance, heat resistance, impact resistance, and hydrolysis resistance |
| Tension Member | Fiberglass cord – high tensile strength, dimensional stability, zero stretch |
| Surface | Smooth or rough (customizable) |
| Standard | ANSI/RMA IP-24, ISO 5299, IS 9804 |
| Length Range | 1000 – 20000 mm (custom cut-to-length) |
| Width | Customizable |
| Thickness | 0.53 – 10 mm |
| Color | Black (standard) |
| Certification | REACH compliant |
| Customization | OEM, ODM – custom length, width, surface treatment, coatings |
| Warranty | 3 Years |
| Applicable Industries | Manufacturing plants, machinery repair shops, farms, construction works, advertising companies, packaging, printing, textile, automation |
| Place of Origin | Guangdong, China |
Pitch Profile Overview – MXL, XL, L, H, XH, XXH
| Pitch Code | Pitch (inch) | Pitch (mm) | Tooth Height (mm) | Belt Thickness (mm) | Tooth Angle | Typical Applications |
|---|---|---|---|---|---|---|
| MXL | 0.080″ | 2.032 | 0.51 | 1.14 | 40° | Miniature drives, small instrumentation, light-duty conveying |
| XL | 0.200″ | 5.080 | – | – | – | Light-duty conveying, small machinery, office equipment |
| L | 0.375″ | 9.525 | 1.91 | 3.60 | 40° | General industrial conveying, medium-duty drives |
| H | 0.500″ | 12.70 | – | – | – | Heavy-duty conveying, machine tools, printing equipment |
| XH | 0.875″ | 22.225 | 6.35 | 11.20 | – | Extra-heavy conveying, crushers, large machinery |
| XXH | 1.250″ | 31.750 | 9.53 | 15.70 | – | Extreme heavy-duty, steel mills, mining equipment |
📐 Custom pitch profiles and dimensions available upon request. Contact our engineering team for custom sizing.
Rubber vs Polyurethane – Why Choose Rubber Timing Belts?
| Feature | Rubber Timing Belt (This Product) | Polyurethane Timing Belt |
|---|---|---|
| Heat Resistance | ✅ Superior – better heat resistance | Moderate |
| Impact Resistance | ✅ Superior – better shock absorption | Moderate |
| Hydrolysis Resistance | ✅ Superior – better moisture resistance | Moderate |
| Cost | ✅ More economical | Higher |
| Quietness | ✅ Superior – quieter operation | Moderate |
| Wear Resistance | Good (slightly inferior to PU) | ✅ Superior – 8x more wear-resistant |
| Oil Resistance | Good | ✅ Superior |
| Precision | Good | ✅ Superior – better dimensional stability |
| Dust Generation | May shed powder | ✅ No dust from friction |
💡 Choose rubber timing belts for applications requiring heat resistance, impact resistance, and cost-effectiveness – ideal for welding, painting, general conveying, and heavy-duty industrial environments. Choose polyurethane for high-precision, oil-exposed, or clean-room applications.

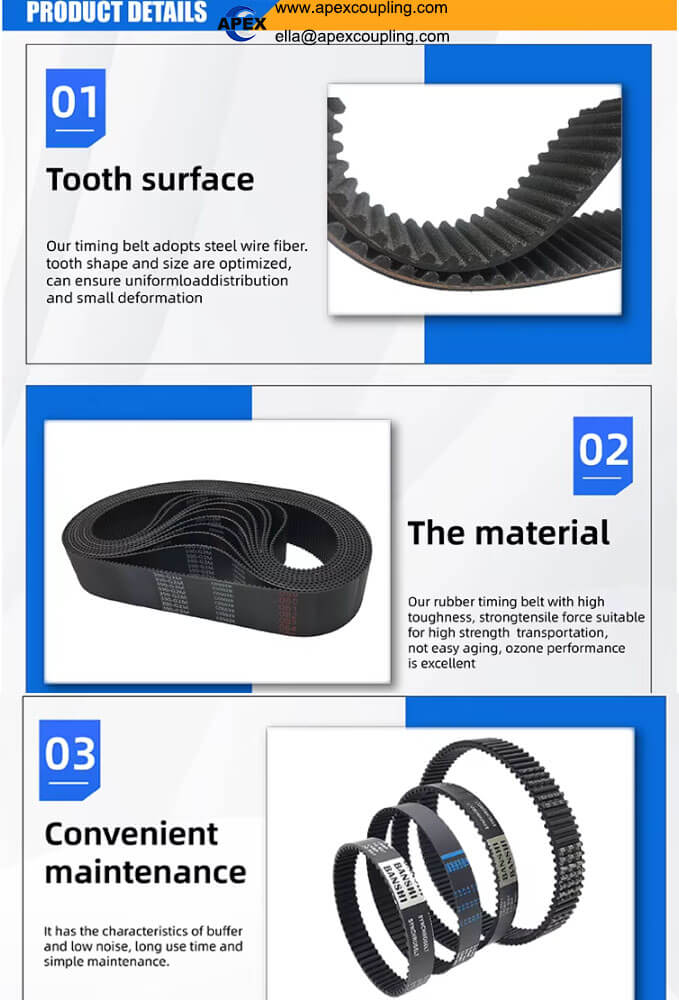

Product Structure
Rubber Body – Premium black rubber with excellent wear resistance, heat resistance, and impact resistance.
Fiberglass Tension Cord – High-strength cord embedded in the belt providing tensile strength and dimensional stability.
Tooth Profile – Precision-molded teeth per ANSI/RMA standards for accurate, slip-free synchronous transmission.
Smooth or Rough Surface – Customizable surface finish for specific conveying requirements.
💡 How it works: The rubber timing belt is a toothed synchronous belt that drives precision equipment with a pattern of teeth that mate to timing belt pulleys. The fiberglass cord provides high tensile strength and dimensional stability, preventing belt stretch under load. The rubber material provides excellent heat resistance, impact absorption, and quiet operation.
Product Features & Advantages
| Advantage | Benefit |
|---|---|
| ANSI/RMA Standard Pitches | MXL, XL, L, H, XH, XXH – covers light to extreme heavy-duty applications |
| Premium Rubber Material | Excellent heat resistance, impact resistance, hydrolysis resistance – long service life |
| Fiberglass Tension Cord | High tensile strength, dimensional stability, zero stretch |
| Quiet Operation | Superior noise reduction compared to polyurethane belts |
| OEM Customization | Custom length, width, surface treatment, coatings – fully customizable |
| Cost-Effective | Economical solution for general industrial applications |
| Wide Application Range | Conveying, packaging, printing, textile, automation, heavy industry |
| 3-Year Warranty | Quality assured – long-term reliability |
| REACH Compliant | Environmentally responsible manufacturing |
Applications
Conveying Systems – Material handling, assembly lines, product transport
Packaging Machinery – Wrapping machines, carton sealers, labeling equipment
Printing Equipment – Paper feed, register control, screen printing
Textile Machinery – Spinning, weaving, finishing equipment
Factory Automation – Linear drives, pick-and-place systems, robotics
Heavy Industry – Crushers, steel mills, mining equipment (XH/XXH series)
Machine Tools – CNC machines, milling machines (H series)
Agricultural Machinery – Farm equipment, harvesters
Advertising Equipment – Signage, labeling machines
Why Choose Apex Coupling for Rubber Timing Belts?
| Advantage | Description |
|---|---|
| Factory Direct | Competitive B2B pricing – no middlemen |
| Premium Rubber | High-quality material – excellent heat, impact, and hydrolysis resistance |
| Fiberglass Cord | High tensile strength, dimensional stability, zero stretch |
| Standard Pitches | MXL, XL, L, H, XH, XXH – covers all industrial needs |
| OEM Customization | Custom length, width, surface treatment, coatings – fully customizable |
| 3-Year Warranty | Quality assured – long-term reliability |
| REACH Compliant | Environmentally responsible manufacturing |
| Fast Delivery | Stocked items available for quick shipment |
FAQ
Q: What is an industrial rubber timing belt?
A: An industrial rubber timing belt is a toothed synchronous belt made of premium rubber with fiberglass tension cords. It provides accurate, slip-free synchronous transmission for conveying, power transmission, and linear motion applications.
Q: What pitch profiles are available?
A: Standard pitch profiles include MXL (0.080″), XL (0.200″), L (0.375″), H (0.500″), XH (0.875″), and XXH (1.250″) per ANSI/RMA standards.
Q: What materials are used?
A: The belt is made of premium black rubber with fiberglass tension cords for high tensile strength and dimensional stability.
Q: What is the length and width range?
A: Length range is 1000 – 20000 mm (cut-to-length). Width is customizable to your requirements.
Q: Can the belt be customized?
A: Yes. We offer OEM/ODM customization – custom length, width, surface treatment, special coatings, and custom profiles.
Q: What is the difference between rubber and polyurethane timing belts?
A: Rubber belts offer superior heat resistance, impact resistance, and quiet operation at a lower cost. Polyurethane belts offer superior wear resistance, oil resistance, and precision.
Q: What are the common applications?
A: Conveying systems, packaging machinery, printing equipment, textile machinery, factory automation, heavy industry, and machine tools.
Q: What certifications do you have?
A: Our belts are REACH compliant with a 3-year warranty.
Request a Quote
Send us your pitch profile (MXL, XL, L, H, XH, XXH), required width, length, and any customization requirements. Our engineers will recommend the optimal belt and provide a quotation within 24 hours.
