High Precision Universal Joint Coupling – Single & Double Structure for Farm and Construction Industries

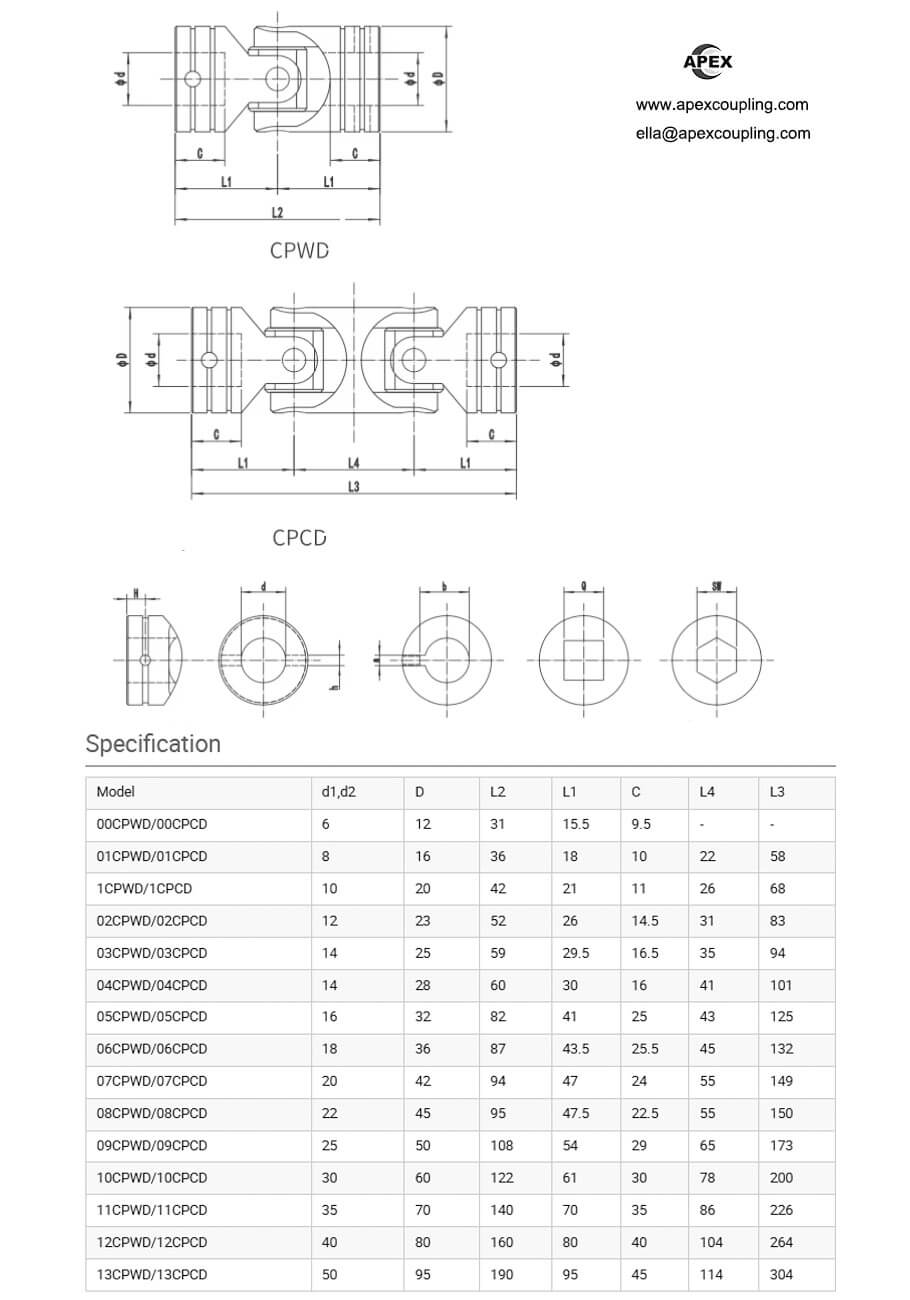

Model Number
Check below, custom
00CPWD/00CPCD
01CPWD/01CPCD
1CPWD/1CPCD
02CPWD/02CPCD
03CPWD/03CPCD
04CPWD/04CPCD
05CPWD/05CPCD
06CPWD/06CPCD
07CPWD/07CPCD
08CPWD/08CPCD
09CPWD/09CPCD
10CPWD/10CPCD
11CPWD/11CPCD
12CPWD/12CPCD
13CPWD/13CPCD
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
High Precision Universal Joint Coupling – Single & Double Structure for Farm and Construction Industries
Factory direct | 42CrMo alloy steel | Single (UJMA) or double (UJMB) joint | 4.5–1500 N·m torque | 6–50 mm bore | H7 precision | Keyway/hexagon/square hole options | ISO9001 & BV certified | OEM/ODM/OBM
The Apexcoupling High Precision Universal Joint Coupling is a heavy-duty power transmission component engineered for the demanding conditions of farm and construction machinery. Available in single joint and double joint configurations, this coupling transmits rotary motion between non-aligned shafts with exceptional reliability and minimal backlash. Constructed from 42CrMo alloy steel with H7 precision bore, it delivers high torque capacity (4.5–1500 N·m), excellent fatigue resistance, and long service life. With 45° angular misalignment capacity per joint and custom hole options (keyway, hexagon, square), this coupling is the ideal solution for tractors, harvesters, excavators, loaders, conveyors, and PTO drive systems.
✅ Designed for harsh agricultural and construction environments. Single or double joint configuration. 42CrMo alloy steel – high strength and durability. 4.5–1500 N·m torque range – covers light to heavy-duty applications.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Apexcoupling |
| Type | Single universal joint (UJMA) or Double universal joint (UJMB) |
| Standard | DIN 808 / National standard |
| Body Material | 42CrMo alloy steel |
| Inner Hole Diameter | 6 – 50 mm |
| Outer Diameter | 12 – 95 mm |
| Nominal Torque | 4.5 – 1500 N·m |
| Maximum Operating Angle | 45° per joint (up to 90° for double joint) |
| Bore Tolerance | H7 |
| Custom Hole Options | Keyway, hexagon hole, square hole |
| Certification | ISO9001; BV Certificate |
| Customized support | OEM, ODM, OBM |
| Applicable Industries | Building material shops, manufacturing plants, machinery repair shops, farms, home use, retail, construction works |
| Warranty | 1 Year |
| Place of Origin | Guangdong, China |
🔧 Custom bores, keyways, hexagon/square holes, and special materials available. Contact us with your specifications.
Single Joint vs Double Joint – Which One Do You Need?
| Feature | Single Joint | Double Joint |
|---|---|---|
| Angular misalignment | ✅ Up to 45° | ✅ Up to 45° per joint |
| Parallel offset | ❌ No | ✅ Yes |
| Total articulation | Up to 45° | Up to 90° |
| Length | Shorter | Longer |
| Best for | Shafts intersecting at an angle on the same plane | Shafts both angled and offset |
Rule of thumb for farm and construction:
Use single joint for straight PTO connections with slight angular misalignment.
Use double joint for connecting shafts that are both angled and offset – common in harvesters, loaders, and excavators.
💡 Double joint configurations provide smoother power transmission and reduced vibration when both angular and parallel misalignment are present.
Product Features & Advantages
| Advantage | Benefit |
|---|---|
| 42CrMo Alloy Steel | High strength, toughness, and fatigue resistance – withstands harsh agricultural and construction conditions |
| High Precision Manufacturing | H7 bore tolerance – precise shaft fit, reduced vibration, longer equipment life |
| 45° Angular Capacity Per Joint | Large misalignment compensation – ideal for uneven terrain and variable operating conditions |
| Single or Double Joint | Choose the right configuration for angular or offset requirements |
| Wide Torque Range | 4.5–1500 N·m – covers light to heavy-duty farm and construction applications |
| Multiple Hole Options | Keyway, hexagon hole, square hole – customizable to your shaft connection needs |
| DIN 808 Standard | Manufactured to international standards – quality assured |
| ISO9001 & BV Certified | Quality assured for international B2B buyers |
| OEM Customization | Custom bores, materials, and configurations available |
Applications
Agricultural Machinery – Tractors, harvesters, balers, sprayers, seeders
PTO Drive Systems – Power take-off shafts for farm implements
Construction Equipment – Excavators, loaders, crushers, conveyors
Industrial Machinery – Packaging systems, printing machinery, metalworking equipment
Off-Road Vehicles – Trucks and heavy-duty vehicles
Material Handling – Conveyors and transfer systems
Why Choose Apex Coupling for Farm & Construction Universal Joints?
| Advantage | Description |
|---|---|
| Factory Direct | Competitive B2B pricing – no middlemen |
| Premium 42CrMo Steel | High strength and durability – built for harsh environments |
| High Precision | H7 bore tolerance – reliable, vibration-free operation |
| Single or Double Joint | One product family covers all angular and offset needs |
| Wide Torque Range | 4.5–1500 N·m – covers light to heavy-duty applications |
| Customization | Keyway, hexagon, square holes – plus custom bores and materials |
| DIN 808 Standard | Manufactured to international standards |
| ISO9001 & BV Certified | Quality assured for international buyers |
FAQ
Q: What is a universal joint coupling?
A: A universal joint coupling (also called a U-joint, cardan joint, or Hooke’s joint) is a mechanical component that connects two non-aligned shafts, transmitting rotary motion and torque even when the shafts are at an angle to each other.
Q: What is the difference between single and double joint?
A: Single joint provides angular flexibility only (up to 45°). Double joint provides both angular flexibility and parallel offset capability, allowing access to applications where shafts are both angled and offset.
Q: What is the maximum operating angle?
A: Each joint can operate up to 45°. For continuous operation, we recommend keeping the angle below the maximum to extend service life.
Q: What materials are available?
A: Standard material is 42CrMo alloy steel – high strength, toughness, and fatigue resistance. Other materials available on request.
Q: What is the bore tolerance?
A: Standard finished bore tolerance is H7 for precision shaft fit.
Q: What bore types can I get?
A: We offer keyway, hexagon hole, square hole, and plain hole. Custom bore types accepted.
Q: What is the torque range?
A: The series covers 4.5 – 1500 N·m. Custom higher torque available on request.
Q: Is this coupling suitable for agricultural machinery?
A: Absolutely. Designed specifically for farm and construction equipment, with 42CrMo construction to withstand harsh conditions.
Q: Can I get a custom coupling?
A: Yes. We offer OEM, ODM, and OBM support – custom bores, materials, and configurations available.
Request a Quote
Send us your configuration (single or double joint), bore size, torque, and application details. Our engineers will recommend the optimal model and provide a quotation within 24 hours.
universal joint coupling for farm machinery

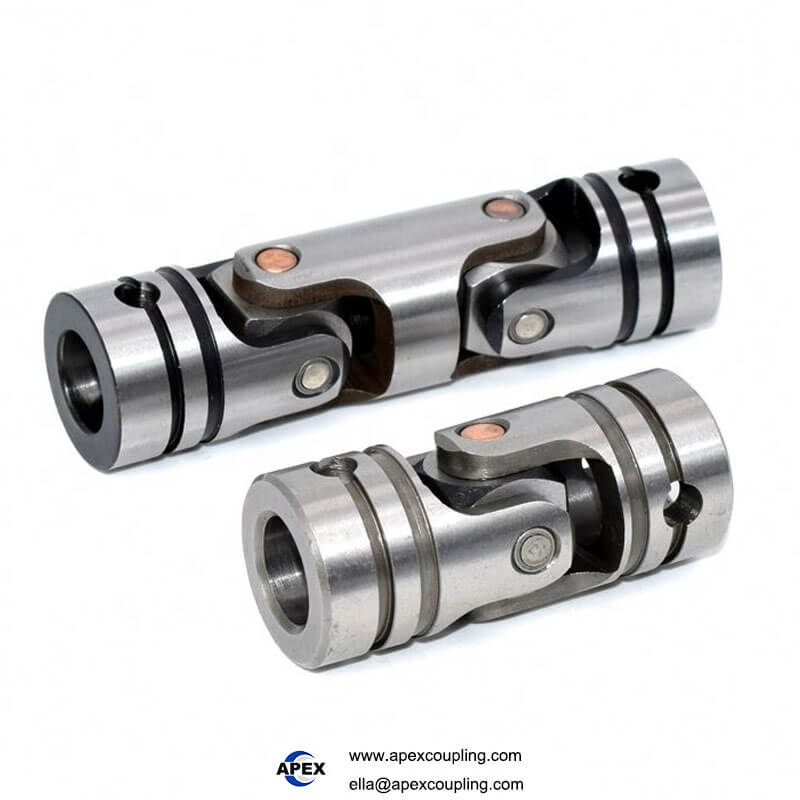

construction equipment universal joint

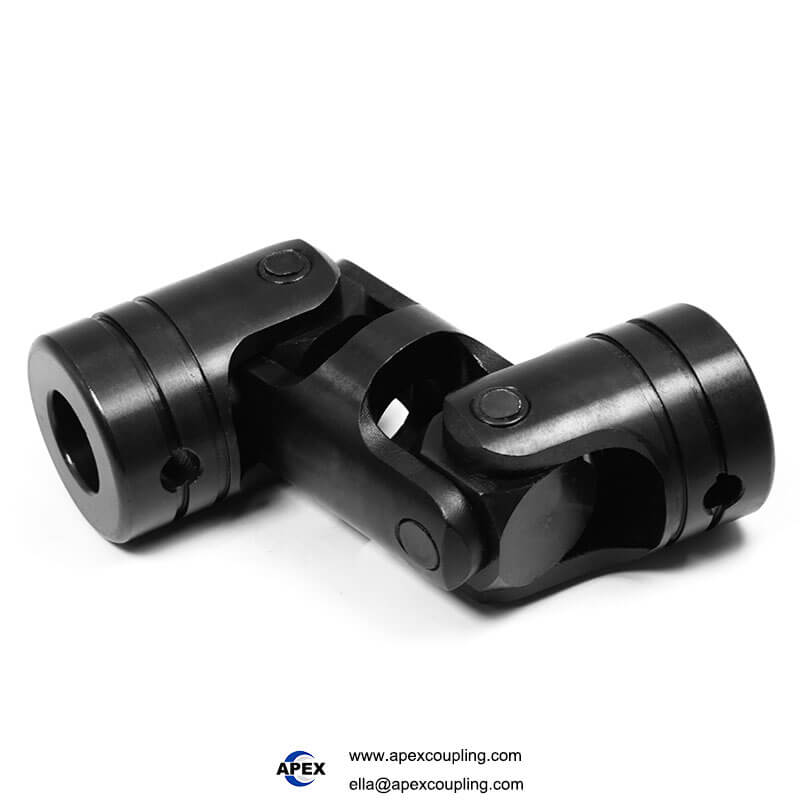

high precision universal joint

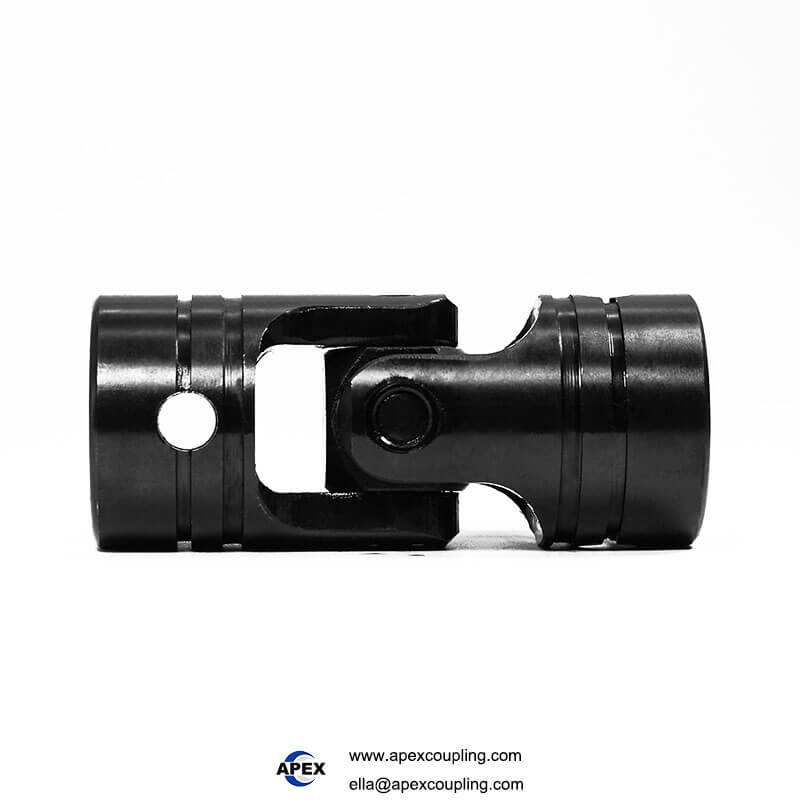

single double universal joint coupling
42CrMo universal joint
agricultural PTO shaft coupling
heavy duty universal joint
Product Show

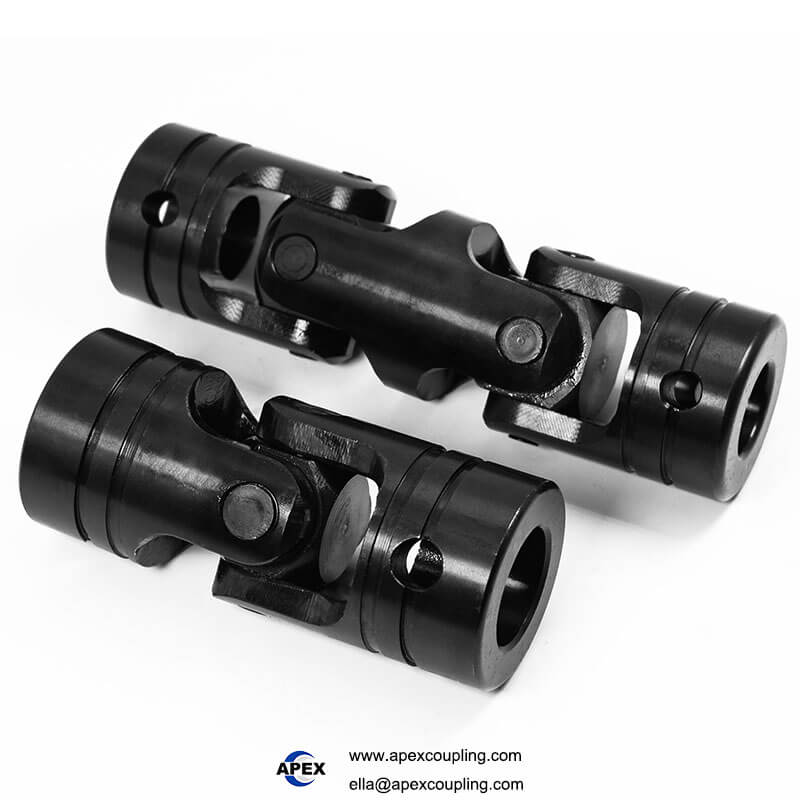

universal joint coupling for farm machinery
