FCL Rigid Aluminium Pin Coupling – 4-15680 N·m, 10mm Bore, 4000 RPM

Model Number
Check below, custom

RWN RWS

Product Description

FCL Rigid Aluminium Pin Coupling – High-Strength, 4-15680 N·m, 10mm Bore, 4000 RPM

The Apexcoupling FCL series is a rigid aluminium pin coupling (pin and bush coupling) designed for reliable power transmission in medium to light industrial applications. Featuring a robust, lightweight aluminium alloy construction, this coupling delivers high torque capacity with a compact design. The simple pin-and-bush structure ensures easy installation, convenient maintenance, and long service life. Available in a wide range of sizes (FCL90 to FCL630), the FCL coupling is the ideal solution for gearboxes, speed reducers, hoists, compressors, conveyors, spinning and weaving machines, and ball mills.

✅ Lightweight aluminium alloy construction for reduced inertia. Simple pin-and-bush design for easy installation and maintenance. Compact size for space-constrained applications. Ideal for medium and minor power transmission systems.

Key Technical Specifications (Model Range)

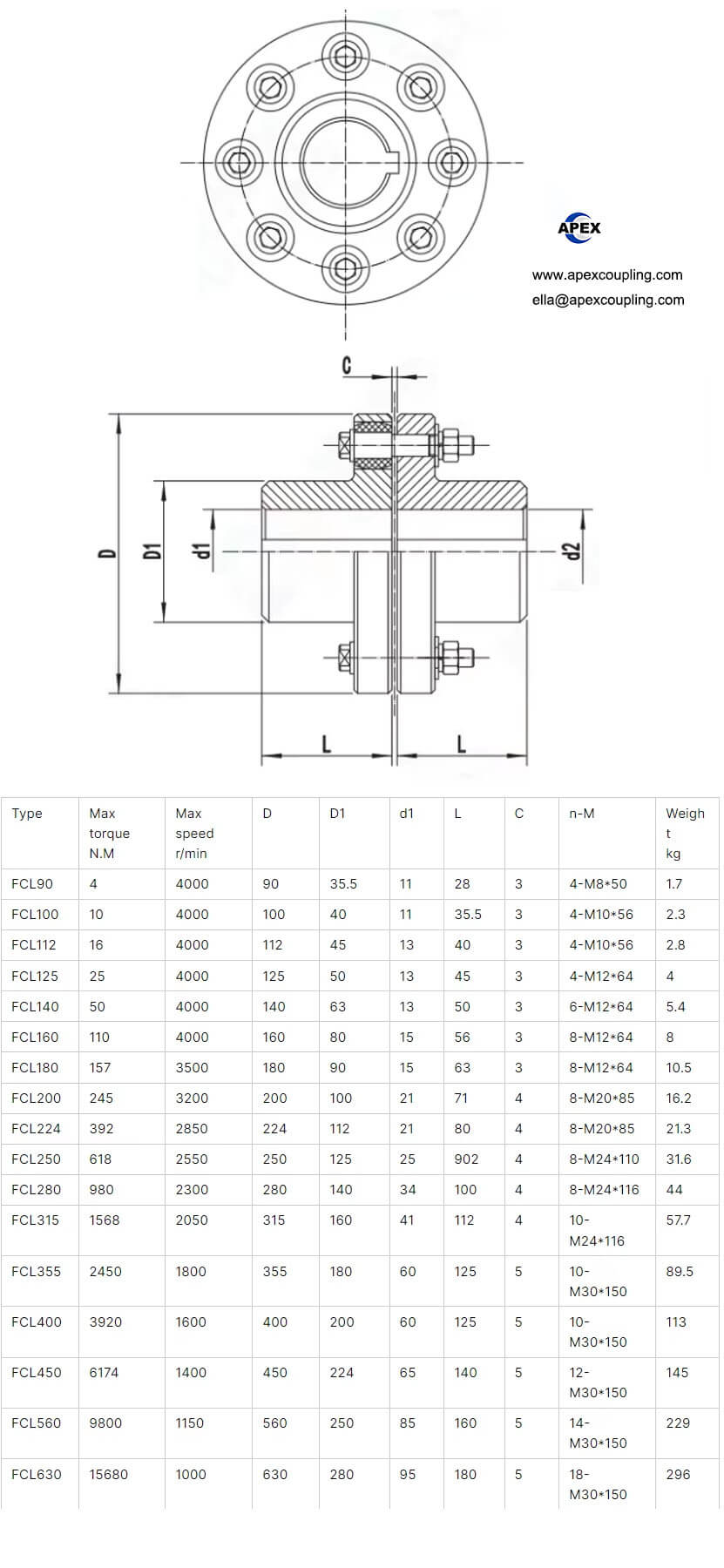

Model	Max Torque (N·m)	Max Speed (RPM)	D (mm)	D1 (mm)	d1 (mm)	L (mm)	C (mm)	Bolt Size	Weight (kg)
FCL90	4	4000	90	35.5	11	28	3	4-M8×50	1.7
FCL100	10	4000	100	40	11	35.5	3	4-M10×56	2.3
FCL112	16	4000	112	45	13	40	3	4-M10×56	2.8
FCL125	25	4000	125	50	13	45	3	4-M12×64	4.0
FCL140	50	4000	140	63	13	50	3	6-M12×64	5.4
FCL160	110	4000	160	80	15	56	3	8-M12×64	8.0
FCL180	157	3500	180	90	15	63	3	8-M12×64	10.5
FCL200	245	3200	200	100	21	71	4	8-M20×85	16.2
FCL224	392	2850	224	112	21	80	4	8-M20×85	21.3
FCL250	618	2550	250	125	25	90	4	8-M24×110	31.6
FCL280	980	2300	280	140	34	100	4	8-M24×116	44.0
FCL315	1568	2050	315	160	41	112	4	10-M24×116	57.7
FCL355	2450	1800	355	180	60	125	5	10-M30×150	89.5
FCL400	3920	1600	400	200	60	125	5	10-M30×150	113
FCL450	6174	1400	450	224	65	140	5	12-M30×150	145
FCL560	9800	1150	560	250	85	160	5	14-M30×150	229
FCL630	15680	1000	630	280	95	180	5	18-M30×150	296

📐 Bore diameters can be customized to meet specific shaft requirements. Contact us for custom sizing.

Product Features & Advantages

Advantage	Benefit
High-Strength Aluminium Alloy	Lightweight, corrosion-resistant, and durable – reduces overall system inertia.
Compact Design	Small size and light weight – ideal for space-constrained installations.
Simple Structure	Easy to install and replace – reduces downtime.
Pin & Bush Design	Smooth power transmission with minimal axial thrust.
Wide Torque Range	4-15680 N·m – suitable for a broad spectrum of applications.
Cost-Effective	Excellent performance-to-cost ratio for medium-power transmission systems.
OEM Customization	Custom bores and materials available to meet specific requirements.
Long Service Life	Reliable operation when shaft misalignment is kept within specified limits.

Product Structure

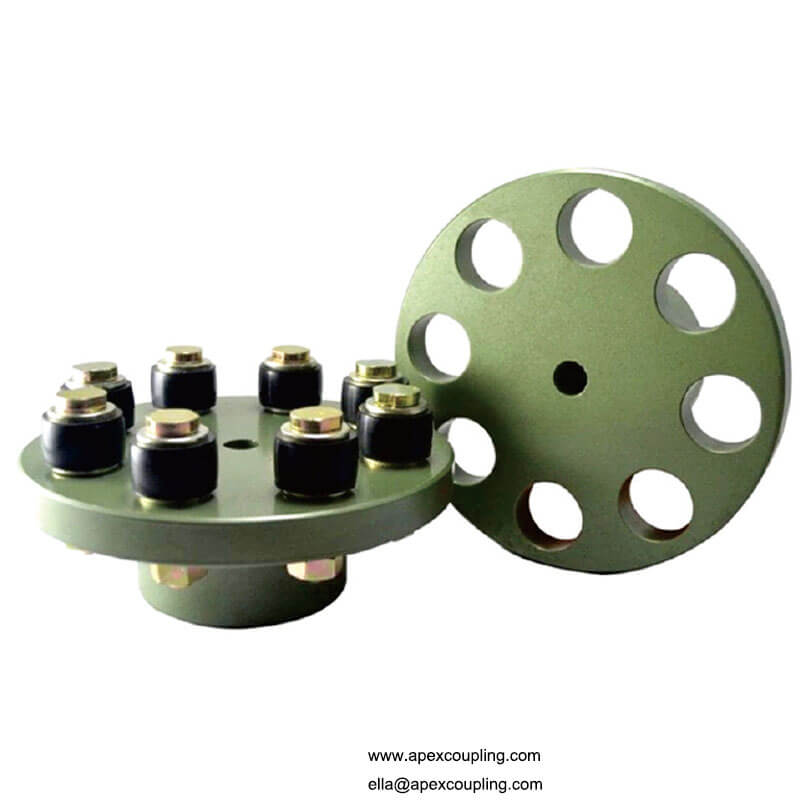

Two Aluminium Hubs – Precision-machined, lightweight, and corrosion-resistant.
Steel Pins – High-strength pins for torque transmission.
Elastomer Sleeves/Bushes – Provide damping and compensate for minor misalignment.

💡 How it works: The FCL coupling utilizes a pin-and-bush design. Steel pins on one hub engage with elastomer-lined holes on the other. This setup transmits torque smoothly, dampens vibrations, and accommodates minor angular and radial misalignment. The simple structure allows for easy disassembly by removing the coupling bolts.

Applications

Gearboxes & Speed Reducers – Reliable power transmission.
Hoists & Cranes – Durable and maintenance-friendly.
Compressors – Smooth, vibration-damped operation.
Conveyors – Ideal for material handling systems.
Spinning & Weaving Machines – Compact and reliable.
Ball Mills – Suitable for moderate power requirements.
Mixers & Agitators – Versatile and cost-effective.
Fans & Blowers – Lightweight and efficient.

Why Choose Apex Coupling for FCL Couplings?

Advantage	Description
Factory Direct	Competitive B2B pricing – no middlemen.
Premium Aluminium Alloy	Lightweight, corrosion-resistant, and durable.
Wide Model Range	FCL90 to FCL630 – covers most industrial applications.
Easy Maintenance	Simple pin-and-bush design for quick replacement.
OEM Customization	Custom bores and materials available.
ISO9001 Certified	Quality assured manufacturing.

FAQ

Q: What is an FCL coupling?
A: An FCL coupling is a pin-and-bush type flexible coupling, widely used for its compact design, easy installation, and convenient maintenance. It is commonly used in medium and minor power transmission systems.

Q: What is the advantage of the aluminium construction?
A: Aluminium provides a lightweight, corrosion-resistant solution that reduces overall system inertia and is ideal for applications where weight is a concern.

Q: What is the torque and speed range?
A: The FCL series covers a torque range from 4 N·m to 15,680 N·m and speeds up to 4,000 RPM (depending on the model).

Q: Is the coupling rigid or flexible?
A: While it is described as rigid, the pin-and-bush design with elastomer sleeves provides some flexibility, allowing it to compensate for minor angular and radial misalignment.

Q: What are the common applications?
A: FCL couplings are widely used in gearboxes, speed reducers, hoists, compressors, conveyors, spinning and weaving machines, and ball mills.

Q: Can I get a custom bore size?
A: Yes. We offer OEM customization – custom bores, keyways, and materials are available.

Q: What is the allowable misalignment?
A: The permissible relative displacement is radial 0.2-0.6mm and angular 0°30′ to 1°30′.

Q: What is the warranty?
A: 1 Year – quality assured.

Request a Quote

Send us your model (e.g., FCL125, FCL200), bore size, torque, speed, and application details. Our engineers will recommend the optimal model and provide a quotation within 24 hours.
