F-Type Anti-Static Tyre Coupling Clutch Tire – Flexible Element, Fire/Heat/Oil Resistant
Model Number
Check below, custom
F40
F50
F60
F70
F80
F90
F100
F110
F120
F140
F160
F180
F200
F220
F250
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
F-Type Anti-Static Tyre Coupling – Flexible Element, Fire/Heat/Oil Resistant, -50°C to +50°C
Factory Direct | Flexible Tyre Element | Anti-Static | Fire, Heat & Oil Resistant | -50°C to 50°C | Sizes F40 – F250 | OEM/ODM/OBM | FDA Compliant Material
The Apexcoupling F-Type Tyre Coupling is a highly flexible, maintenance-free shaft coupling designed for demanding industrial applications. Featuring a unique tyre-shaped rubber element, it provides exceptional vibration damping, shock absorption, and misalignment compensation. The coupling is engineered with anti-static, fire-resistant, heat-resistant, and oil-resistant properties, making it ideal for harsh environments including chemical plants, cement transport, pickling lines, and general industrial machinery. Available in sizes from F40 to F250, this coupling offers a reliable, flexible connection that protects your equipment and extends service life.
✅ Anti-static, fire, heat & oil resistant – safe for demanding environments. Highly flexible – absorbs shock and vibration. Maintenance-free – no lubrication required. Easy installation – quick element replacement.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Apexcoupling |
| Model Series | F-Type Tyre Coupling (F40 – F250) |
| Type | Flexible / Tyre / Rubber element |
| Structure | Two steel flanges + one tyre-shaped rubber element |
| Element Material | Special rubber compound – anti-static, fire-resistant, heat-resistant, oil-resistant |
| Operating Temperature | -50°C to +50°C |
| Shaft Fixation | Taper bush or straight bore with set screws |
| Backlash | Zero |
| Misalignment Compensation | Angular, parallel, and axial |
| Vibration Damping | Excellent – tyre element absorbs shock |
| Lubrication | None required – maintenance-free |
| Customized support | OEM, ODM, OBM |
| Applicable Industries | Building material, manufacturing, machinery repair, retail, construction, energy & mining, chemical, medicine, cement transport, pickling equipment |
| Certifications | ROHS, ISO9001, RoHS |
| Place of Origin | Guangdong, China |
🔧 Custom bores, taper bushes, and special rubber compounds available. Contact us with your specifications.

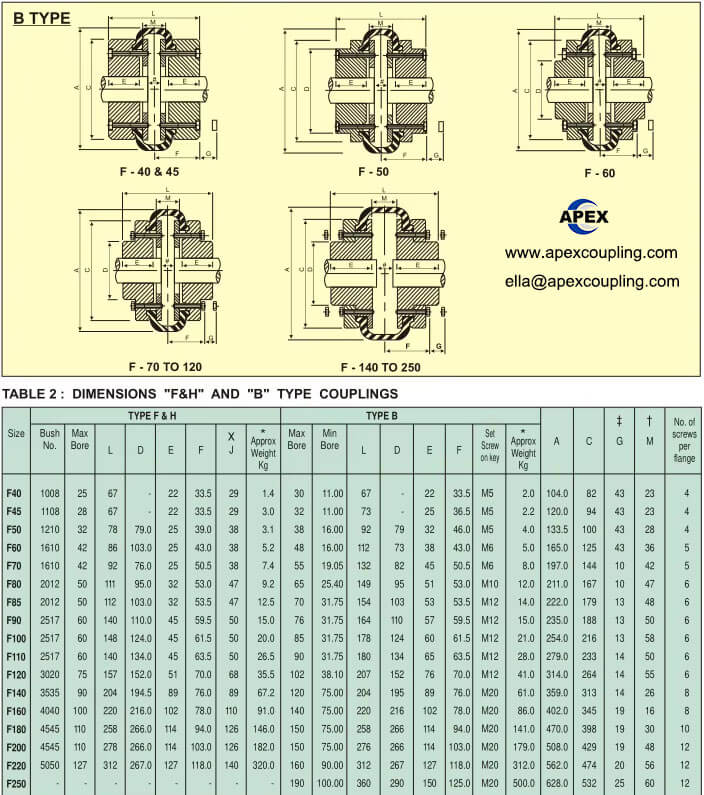

F-Type Tyre Coupling – Model Range
| Size | Bush No. | Max Bore (mm) | L (mm) | D (mm) | E (mm) | F (mm) | Approx. Weight (kg) |
|---|---|---|---|---|---|---|---|
| F40 | 1008 | 25 | 67 | – | 22 | 33.5 | 2.0 |
| F45 | 1108 | 28 | 73 | – | 25 | 36.5 | 2.2 |
| F50 | 1210 | 38 | 92 | 79 | 32 | 46.0 | 4.0 |
| F60 | 1610 | 48 | 112 | 83 | 42 | 50.5 | 5.0 |
| F70 | 2012 | 65 | 149 | 95 | 51 | 53.0 | 12.0 |
| F85 | 2012 | 70 | 154 | 103 | 53 | 53.5 | 14.0 |
| F90 | 2517 | 76 | 164 | 110 | 57 | 59.5 | 15.0 |
| F100 | 2517 | 85 | 178 | 124 | 60 | 61.5 | 21.0 |
| F110 | 2517 | 90 | 180 | 134 | 65 | 63.5 | 28.0 |
| F120 | 3020 | 102 | 207 | 152 | 76 | 70.0 | 41.0 |
| F140 | 3535 | 120 | 204 | 195 | 89 | 76.0 | 61.0 |
| F160 | 4040 | 140 | 220 | 216 | 102 | 78.0 | 86.0 |
| F180 | 4545 | 150 | 276 | 266 | 114 | 94.0 | 141.0 |
| F200 | 5050 | 160 | 312 | 267 | 127 | 118.0 | 312.0 |
| F250 | – | 190 | 360 | 290 | 150 | 125.0 | 500.0 |
📐 Additional sizes and custom dimensions available upon request. Contact our engineering team for custom sizing.
Product Structure
Two Steel Flanges – Precision-machined, robust steel construction with taper bush or straight bore options.
Tyre-Shaped Rubber Element – Flexible, anti-static, fire/heat/oil resistant compound that absorbs shock and compensates for misalignment.
Flange Bolts – Secure connection between flanges and rubber element.
💡 How it works: The tyre coupling transmits torque through the flexible rubber element. The element’s design provides exceptional flexibility, allowing it to absorb shock loads, dampen vibration, and compensate for angular, parallel, and axial misalignment. The anti-static, fire, heat, and oil-resistant properties make it suitable for demanding environments.
Product Features & Advantages
| Advantage | Benefit |
|---|---|
| Anti-Static Properties | Safe for use in explosive or static-sensitive environments |
| Fire, Heat & Oil Resistant | Suitable for high-temperature, chemical, and oily environments |
| Highly Flexible Tyre Element | Excellent shock absorption and vibration damping – protects connected equipment |
| Misalignment Compensation | Compensates for angular, parallel, and axial misalignment – reduces stress on bearings |
| Maintenance-Free | No lubrication required – reduces operating costs and downtime |
| Quick Element Replacement | Tyre element can be replaced without moving flanges or shafts |
| FDA Compliant Material | Suitable for food and pharmaceutical applications (upon request) |
| Wide Temperature Range | -50°C to +50°C – suitable for extreme environments |
| Zero Backlash | No rotational clearance – smooth power transmission |
| Long Service Life | Durable rubber compound with excellent resistance to wear |
| Easy Installation | Simple flange and bolt assembly – no special tools required |
| OEM Customization | Custom bores, taper bushes, and special rubber compounds available |
Why Choose a Tyre Coupling?
Tyre couplings offer distinct advantages over traditional jaw or gear couplings:
| Feature | Tyre Coupling (F-Type) | Traditional Jaw Coupling |
|---|---|---|
| Flexibility | Exceptional – absorbs shock and vibration | Limited |
| Misalignment compensation | High – angular, parallel, axial | Moderate |
| Anti-static / fire / oil resistance | Yes | No |
| Temperature range | -50°C to +50°C | Limited |
| Element replacement | Quick – without moving flanges | Requires hub separation |
| Maintenance | Maintenance-free | May require lubrication |
| Suitable for harsh environments | Yes – chemical, cement, pickling | Limited |
Applications
Industrial Machinery – General power transmission, shock absorption
Chemical Industry – Pumps, mixers, agitators – corrosion and chemical resistance
Pharmaceutical Industry – Hygienic, FDA-compliant material options
Cement Transport – Conveyors, elevators – abrasive and dusty environments
Pickling Equipment – Acid-resistant, corrosion-resistant applications
Building Material Shops – Material handling, conveyors
Manufacturing Plants – General power transmission
Energy & Mining – Conveyors, feeders, crushers
Construction Machinery – Mixers, hoists, pumps
Why Choose Apex Coupling for F-Type Tyre Couplings?
| Advantage | Description |
|---|---|
| Factory Direct | Competitive B2B pricing – no middlemen |
| Premium Rubber Compound | Anti-static, fire/heat/oil resistant – safe and durable |
| Wide Temperature Range | -50°C to +50°C – suitable for extreme environments |
| Quick Element Replacement | Reduce downtime – no need to move flanges |
| FDA Compliant Material | Food and pharmaceutical applications available |
| Wide Size Range | F40 to F250 – covers most industrial needs |
| OEM Customization | Custom bores, taper bushes, and special rubber compounds |
| Maintenance-Free | No lubrication – reduces operating costs |
| ISO9001 & BV Certified | Quality assured for international buyers |
FAQ
Q: What is a tyre coupling?
A: A tyre coupling (also called a rubber tire coupling) is a flexible coupling that uses a tyre-shaped rubber element to transmit torque while absorbing shock and compensating for misalignment. It consists of two steel flanges connected by the rubber element.
Q: What are the key features of the F-Type tyre coupling?
A: The F-Type tyre coupling features anti-static, fire-resistant, heat-resistant, and oil-resistant properties, making it ideal for demanding environments. It operates in temperatures from -50°C to +50°C.
Q: What materials are used?
A: The flanges are made of steel (taper bush or straight bore options). The tyre element is made of a special rubber compound with anti-static, fire, heat, and oil-resistant properties. FDA-compliant material is available upon request.
Q: What is the temperature range?
A: The operating temperature range is -50°C to +50°C.
Q: Is the coupling maintenance-free?
A: Yes. The F-Type tyre coupling requires no lubrication – maintenance-free operation.
Q: What misalignment can the coupling compensate for?
A: The tyre element compensates for angular, parallel, and axial misalignment.
Q: How is the tyre element replaced?
A: The tyre element can be replaced quickly without removing the flanges or moving the shafts – significantly reducing downtime.
Q: Is the coupling anti-static?
A: Yes. The F-Type tyre coupling features anti-static properties, making it safe for use in explosive or static-sensitive environments.
Q: What industries is this coupling suitable for?
A: Industrial machinery, chemical, pharmaceutical, cement transport, pickling equipment, building materials, manufacturing, energy & mining, and construction.
Q: Can I get a custom coupling?
A: Yes. We offer OEM, ODM, and OBM support – custom bores, taper bushes, and special rubber compounds available.
Request a Quote
Send us your size (e.g., F60, F120), bore diameter, taper bush requirement, and application details. Our engineers will recommend the optimal model and provide a quotation within 24 hours.
Tyre coupling
Anti-static coupling
Flexible tyre coupling
F-type coupling
Rubber tire coupling
Industrial flexible coupling
Fire resistant coupling
Oil resistant coupling
Cement transport coupling
FDA compliant coupling

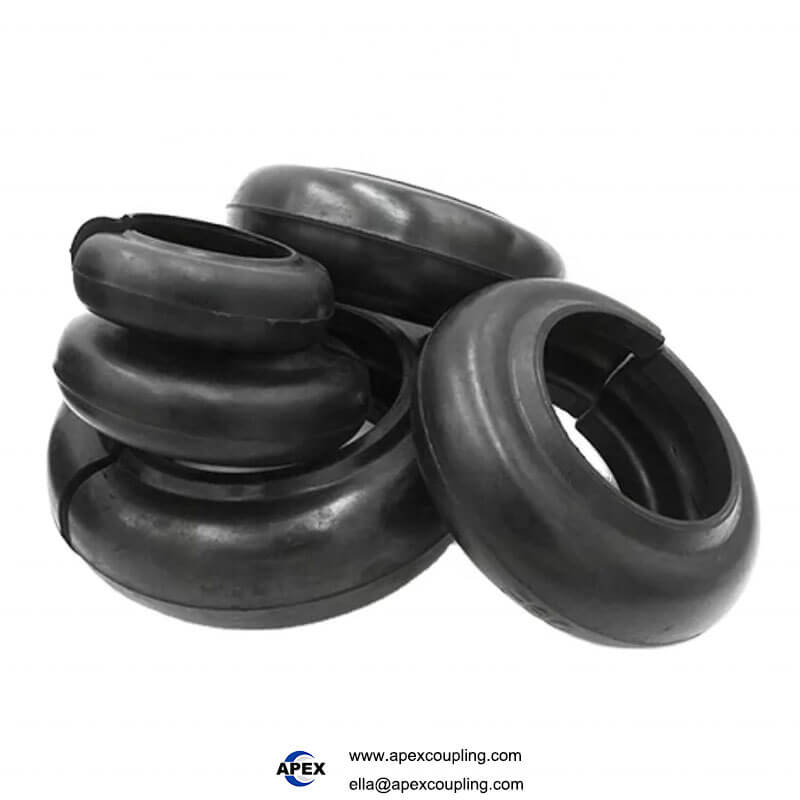

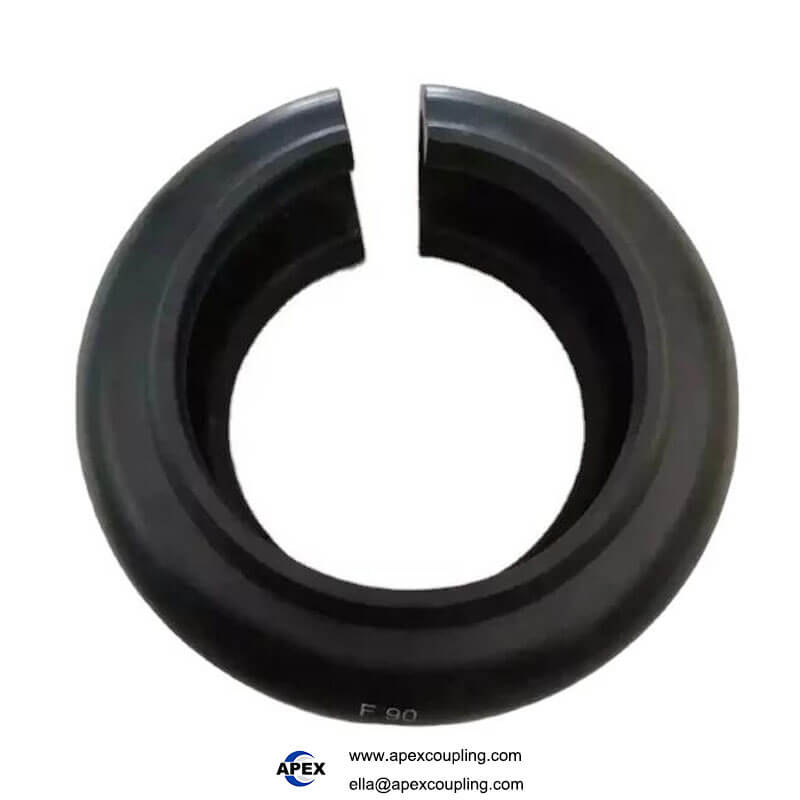

Product Show
