DXC Aluminum High‑Torque Rigid Coupling | Zero Backlash for Stepper/Servo Motors
Model Number
| Specification |
|---|
| DXC-16*16 |
| DXC-16*24 |
| DXC-20*20 |
| DXC-20*30 |
| DXC-25*25 |
| DXC-25*36 |
| DXC-28.5*38 |
| DXC-32*32 |
| DXC-32*41 |
| DXC-40*44 |
| DXC-40*52 |
| DXC-50*55 |
| DXC-50*66 |
| DXC-63*71 |
- Phone : +86 13431039760
- Wechat : +86 13431039760
- Whatsapp : +86 13431039760
- Email : ella@apexcoupling.com
Product Description
Custom sizes available | After‑sales guarantee | Factory direct – a coupling you can trust
The DXC series is a one‑piece metal rigid clamp coupling designed for high‑precision power transmission. Zero backlash, no power/motion loss, and extremely high rigidity.
⚠️ Note: This rigid coupling does NOT absorb misalignment – precise shaft alignment is mandatory.
Key Advantages
✅ Zero Backlash & High Rigidity
One‑piece aluminum structure with no elastic elements – absolute zero backlash. Ideal for high‑stiffness, high‑response servo/stepper systems.
✅ High‑Strength Aluminum Alloy
Made of high‑strength aluminum alloy – corrosion resistant, good thermal conductivity, lightweight, reducing inertia for dynamic applications.
✅ Class 12.9 High‑Strength Screws
Clamping screws are grade 12.9 alloy steel – smooth, burr‑free, uniform clamping force, no loosening under vibration.
✅ Easy Installation & Removal
Compact, lightweight, clamp‑type design – simply tighten the screws for fast mounting, adjustment, and maintenance.
Dimensions & Technical Data (Typical)
| Model | Bore Range (mm) | Length (mm) | Rated Torque (N·m) | Max Speed (rpm) |
|---|---|---|---|---|
| DXC‑19 | 4‑6 | 30 | 2.5 | 12,000 |
| DXC‑25 | 5‑8 | 34 | 5.0 | 10,000 |
| DXC‑32 | 8‑14 | 40 | 9.0 | 10,000 |
| DXC‑40 | 10‑20 | 46 | 15.0 | 8,000 |
| Custom sizes available | As required | As required | As required | – |
📐 Contact us for detailed drawings and CAD files.
Applications – Wide Industrial Use
CNC machine tools (spindle, feed axes)
Food packaging machinery
Metallurgical equipment
Solar tracking systems (photovoltaic)
Woodworking machinery
Chemical industry conveyors
Semiconductor equipment (high‑precision positioning)
Printing machinery, railway track equipment
Why Choose Apex Coupling?
| Factory Advantage | Description |
|---|---|
| Factory Direct | No middlemen – competitive pricing |
| Custom Support | Bore, length, surface finish available per drawing |
| After‑Sales Guarantee | Quality issues covered, technical support provided |
| Fast Delivery | Stock items ready; custom orders 7‑15 days |
FAQ
Q: Can the DXC rigid coupling compensate for shaft misalignment?
A: No. It is a zero‑backlash, high‑rigidity coupling and does not absorb misalignment. Precise alignment is required.
Q: Suitable for high‑torque servo motors?
A: Yes. The DXC series is designed for high torque transmission with no power loss.
Q: What is the MOQ for custom couplings?
A: No MOQ for standard sizes; custom orders typically start at 10 pieces.
Request a Quote
Fill out the form or contact us directly for the latest price and technical support.
[ Quote Form / Contact Button ]
aluminum rigid coupling
high torque coupling
zero backlash coupling
servo motor coupling
stepper motor coupling
custom coupling manufacturer
Product Show

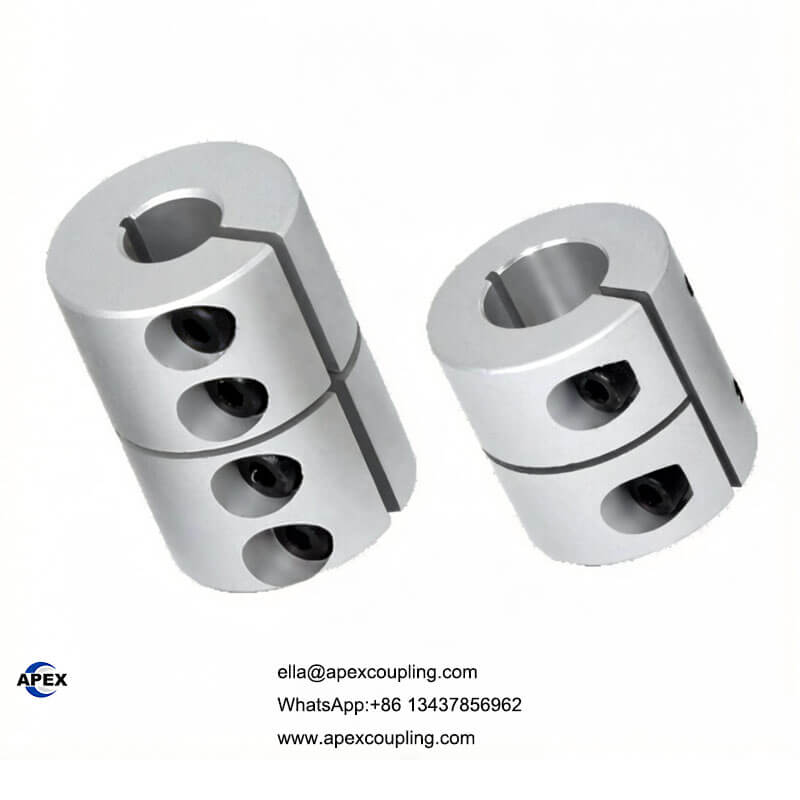

aluminum rigid coupling
