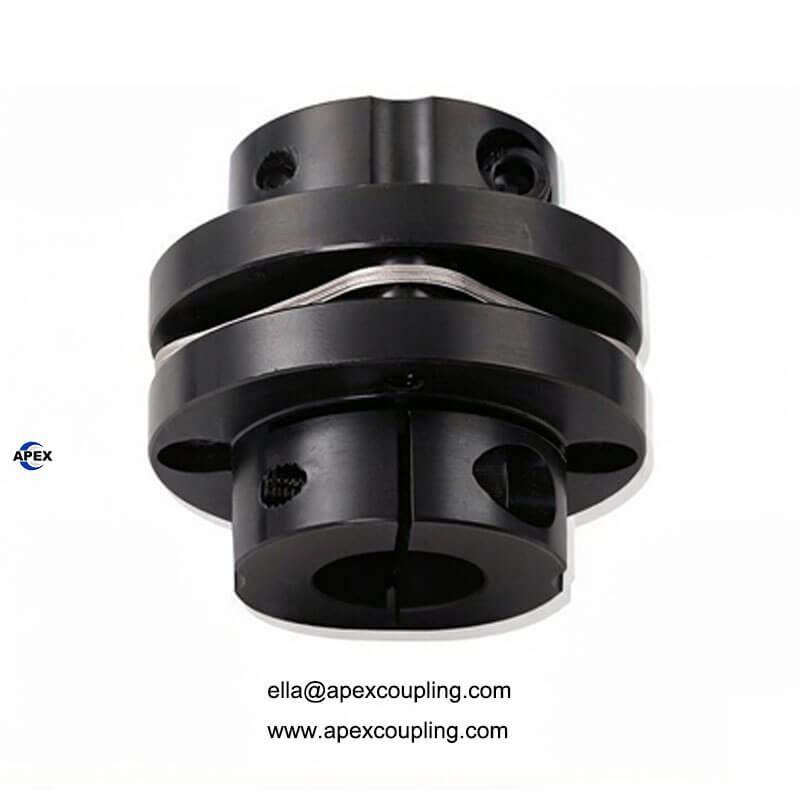

DKAM Single-Step Clamp Diaphragm Couplings: Precision Transmission for Harsh Environments

The DKAM Series is a high-performance single-step diaphragm coupling engineered for precision machinery. Designed with a robust clamp-style locking mechanism and 12.9-grade high-strength bolts, it ensures a secure, zero-backlash connection. Compared to traditional gear couplings, the DKAM offers double the angular displacement capacity and operates flawlessly in extreme temperatures ranging from -80°C to +300°C.

Core Product Advantages

• Superior Misalignment Compensation: Expertly handles eccentric, angular, and axial deviations with minimal reaction force, protecting your drive system from stress.

• Premium 45# Steel with Black Oxide Finish: Constructed from high-quality 45# steel with a blackened surface for enhanced corrosion resistance and durability.

• Imported 304 Stainless Steel Discs: Utilizes high-elasticity stainless steel diaphragms for high torque transmission, precision, and a long service life.

• H7 Precision Bore: Internal bores are controlled within H7 tolerances, ensuring perfect concentricity and powerful clamping force.

• Extreme Environment Resilience: Maintenance-free design that thrives in high-vibration, shock-heavy, and high-temperature conditions without the need for lubrication.

• Accurate Speed Transmission: Ensures zero-slip rotation, making it ideal for synchronized movements in high-precision mechanical drives.

• Simple & Compact Design: Lightweight and space-saving structure that allows for easy assembly and disassembly without moving the connected machinery.

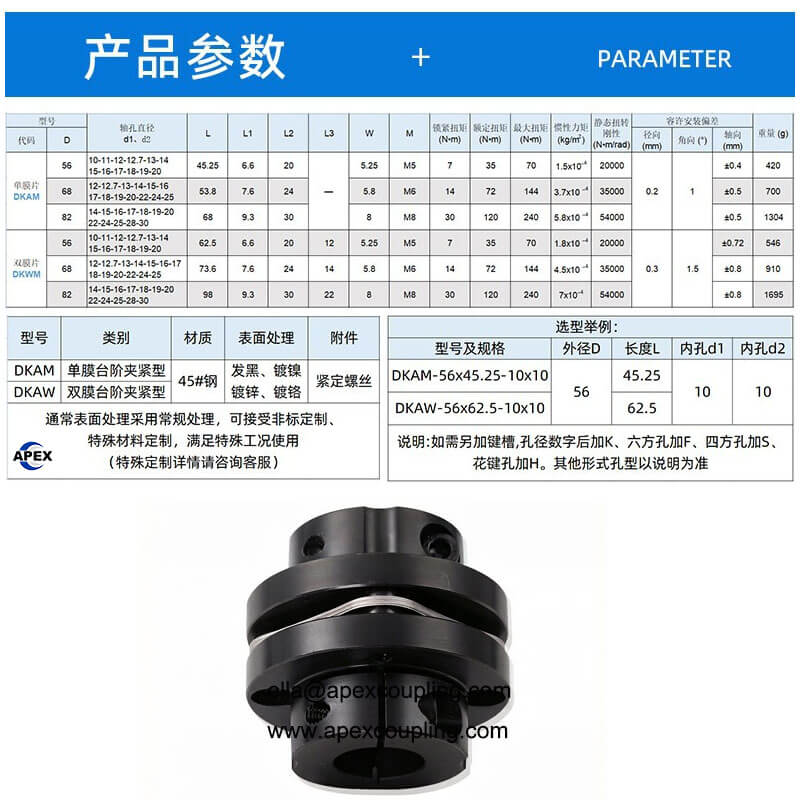

Technical Specifications Table
