Dynamic Axial Flexibility: CPSP Telescopic Precision Gimbal Universal Joint

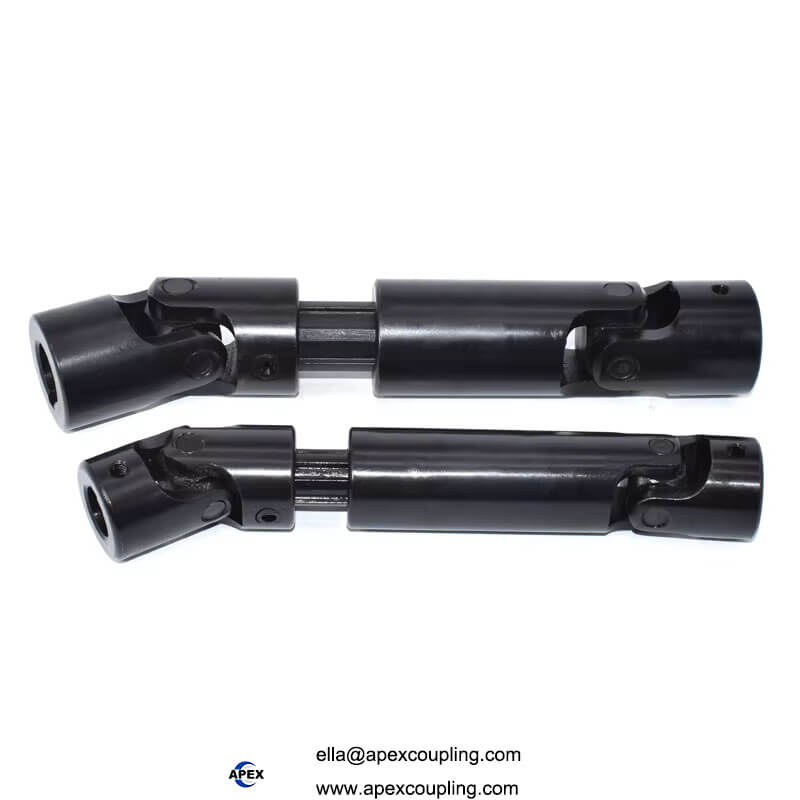

The CPSP Series Telescopic Precision Gimbal Universal Joint Coupling is engineered by a premier China factory to deliver high-torque, precise rotational transmission in automated machinery layouts where distance between components changes dynamically. Featuring an expandable telescopic structure, this CPSP telescopic universal joint actively bridges variable axial gaps while managing significant angular offsets. It is highly effective across diverse applications, including manufacturing plants, machinery repair shops, food processing facilities, and printing equipment.

Forged from premium 42CrMo alloy steel, this precision gimbal coupling is built to endure demanding mechanical stresses, heavy operational impacts, and cyclic fatigue. With internal hub bores ground to a strict H7 finished hole tolerance and coated with a protective black oxide surface treatment, the coupling delivers a secure fit, reliable wear resistance, and long-term corrosion protection in challenging environments.

Core Product Advantages / Unique Selling Points

• Premium 42CrMo Alloy Steel Construction: Built using high-density 42CrMo alloy steel to provide excellent structural strength, fracture toughness, and fatigue resistance under high torsional stress.

• Dynamic Telescopic Stroke Compensation: The expandable slide-spline design allows smooth length adjustments between inputs and outputs, compensating for continuous machine vibrations and moving parts.

• Strict H7 Bored Hole Precision: All finished connection bores are held to a precise H7 tolerance standard to ensure excellent concentricity, a secure shaft lock, and zero rotational backlash.

• Large 45-Degree Angular Capacity: The advanced cross-spider articulation allows for stable power transmission even at large continuous working angles up to 45 degrees per joint.

• Highly Configurable Hub Profiles: To support different machine styles, internal connections can be manufactured with standard keyways, square holes, or hexagon hole interfaces.

• Broad Torque and Outer Diameter Grid: Accommodates diverse industrial needs with outer diameters ranging from small 22 mm sizes up to heavy-duty 150 mm profiles, managing nominal torques from 25 to 6300 N·m.

• Certified Quality Track and Custom Sourcing: Produced in an ISO 9001 and BV certified facility in Guangdong, China, providing robust 1-year warranties and full support for OEM, ODM, and OBM technical blueprints.

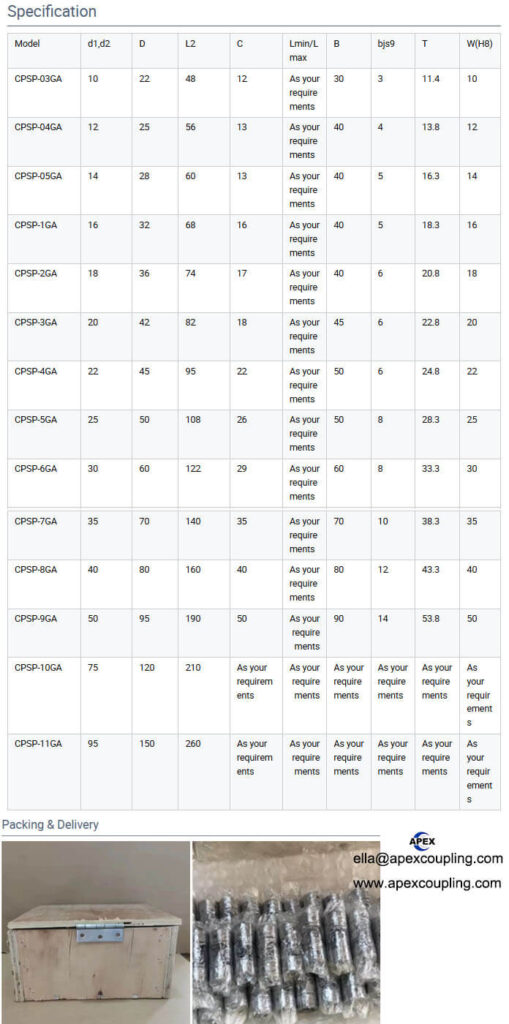

Technical Specifications Table
