Introduction In modern industrial drivetrains—especially those running continuously across power generation, heavy mining machinery, and building material handling grids—the mechanical connection between the motor and the driven load faces complex forces. Sudden startup torque spikes, dynamic angular misalignments, and resonant vibrations can rapidly degrade downstream equipment. While rigid joints transmit force directly, they offer zero protection against shock. The global engineering answer to securing long-term drivetrain health is the Rotex Curved Flexible Jaw Coupling.

1. The Science Behind Curved Jaw Geometry Unlike traditional straight-jaw designs where the flat surfaces of the hub teeth slam directly against a rubber pad, the Rotex framework features concave curved jaw profiles. When torque passes through the assembly, the curved teeth distribute pressure uniformly across the convex fingers of the central polyurethane spider. This unique geometric interaction eliminates localized edge stress concentration, preventing the insert material from splitting under load and maintaining smooth, synchronous rotation even at peak operational thresholds like 100 N·m.

2. Tuning Your Drivetrain via Polyurethane Shore Hardness The primary operational advantage of standardizing on Rotex flexible couplings is the ability to adapt the joint’s behavior by swapping out the center cushion element. By utilizing different cast Polyurethane (PU) formulations, operators can tune the drivetrain’s torsional stiffness:

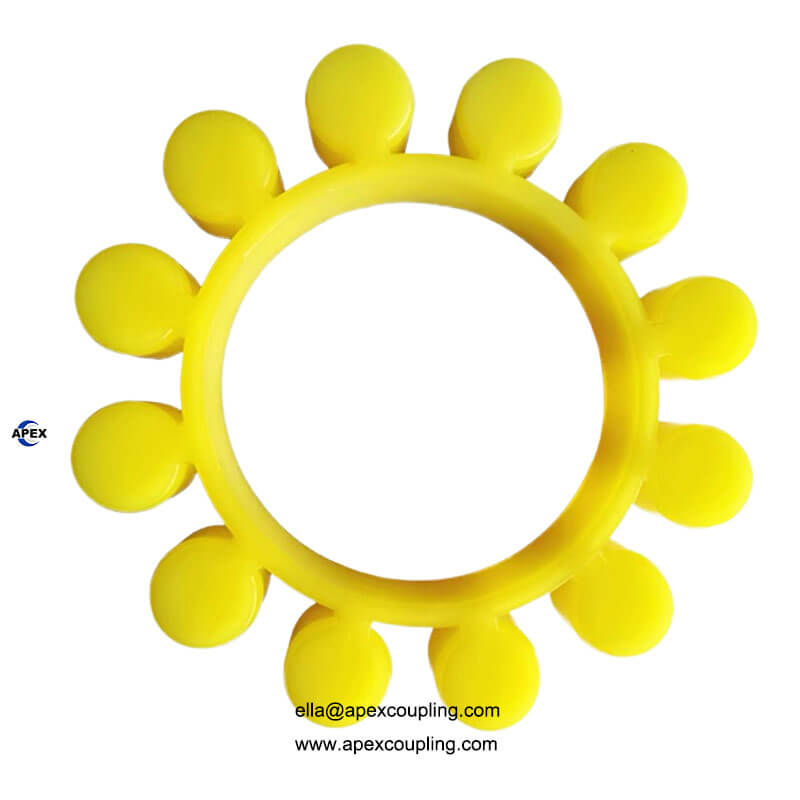

• 92 Shore A (Yellow Elements): Offers maximum vibration absorption and huge alignment flexibility, perfect for standard fluid pumps and high-vibration fans.

• 98 Shore A (Red Elements): Strikes an optimal balance between torque capacity and damping, widely deployed in heavy machinery gearboxes.

• 64 Shore D (Green Elements): Provides extreme torsional rigidity for high-torque industrial positioning demands.

3. Built for Challenging Environments with a 3-Year Warranty Industrial components must withstand demanding workshop conditions. Low-cost rubber joints often degrade quickly when exposed to environmental oils, hydraulic lubricants, or chemical sprays, leading to premature brittleness and sudden failure. Our Rotex series utilizes high-purity cast polyurethane inside high-density alloy or iron hubs, delivering exceptional resilience across Energy & Mining setups, Building Material factories, and high-frequency Machinery Repair Depots. This robust reliability is why every factory-direct unit is backed by a 3-year product warranty.

4. Comprehensive OEM Customization via Apexcoupling Every industrial infrastructure grid presents unique dimensional challenges. Standard catalog items often require adaptation to clear specific shaft offsets or step-down shaft sizes. Maintaining a comprehensive production floor in Guangdong, China, Apexcoupling offers complete OEM, ODM, and OBM customizable manufacturing tracks. Whether you require your stock units broached to a precise 20mm bore diameter, fitted with specialized keyway channels, or cast with specialized polyurethane Shore durometers, our engineering department converts your custom layout drawings into ready-to-install parts that maximize system uptime.

Caption: 100 N·m Continuous Torque. Curved Jaw Precision. 3 Years of Warranted Security! ⚙️🛡️

Protect your heavy servo loops, gearboxes, and industrial motor drives from catastrophic failure using the authentic Rotex Type Flexible Jaw Shaft Couplings from Apexcoupling!

Engineered with specialized concave jaw profiles, the Rotex series delivers exceptional shock dampening without sacrificing torque capacity.

✅ Curved Tooth Geometry: Eliminates edge-loading wear by distributing compressive forces evenly across the spider element.

✅ High Torque Framework: Rated for a solid continuous load of 100 N·m at operational boundaries up to 1,000 RPM.

✅ Premium Cast Polyurethane: High-grade PU inserts resist moisture, cutting oils, and grease friction while retaining crisp shape memory.

✅ Elite 3-Year Warranty: Enjoy total peace of mind with our extended 3-year factory-backed quality guarantee! ✅ Precision 20mm Stock Bores: Fits standard industrial motor outputs perfectly, with complete custom bore sizing available on request.

Perfect for Energy & Mining Applications, Building Material Facilities, Industrial Automation Houses, and Machinery Repair Depots.

Check out image_0bbb22.png to review our core mechanical parameters and application benchmarks. We support complete OEM / ODM custom drawing adaptations directly from our production floor, helping you tune your system’s torsional durometer exactly to your needs! 🌍📦

📩 Direct factory-to-business wholesale routes mean maximum cost efficiency. Slide into our DMs or leave a comment with your target shaft dimensions for an immediate engineering quote!

Inquiry: www.apexcoupling.com
