Maximizing Drive Efficiency with 42CrMo Alloy Steel Miniature Universal Joints
Introduction Factory Automation (FA) lines require mechanical components that combine spatial flexibility with precise motion transfer. When driving shafts are misaligned or operating at changing angles—such as in conveyor transfer stations, multi-axis drive linkages, or packaging equipment—standard rigid couplings cause binding and bearing failure.
The UNKA Series (CSKA/CSKW) Precision Universal Joints offer a robust solution by combining 42CrMo alloy steel construction with precision-fitted pin and bearing assemblies.
1. Material Integrity: Why 42CrMo Steel Outperforms Standard Carbon Steel The durability of a miniature universal joint under continuous angular deflection relies on material fatigue strength:
Heat-Treated 42CrMo Construction: Provides high yield strength and impact toughness, absorbing repeated dynamic shock loads without structural deformation.
Fatigue Resistance: Heat treatment optimizes the grain structure around critical load points (such as the pin journals), ensuring extended operational lifespan.
2. Single (CSKA) vs. Double (CSKW) Universal Joint Selection Selecting between single and double joint configurations depends on alignment geometry:
CSKA (Single Joint): Accommodates angular misalignment up to 40° between two intersecting shafts.
CSKW (Double Joint): Combines two universal joints in series (length up to 139 mm), allowing the drive system to compensate for both parallel offset and angular misalignment while maintaining smooth rotational velocity.

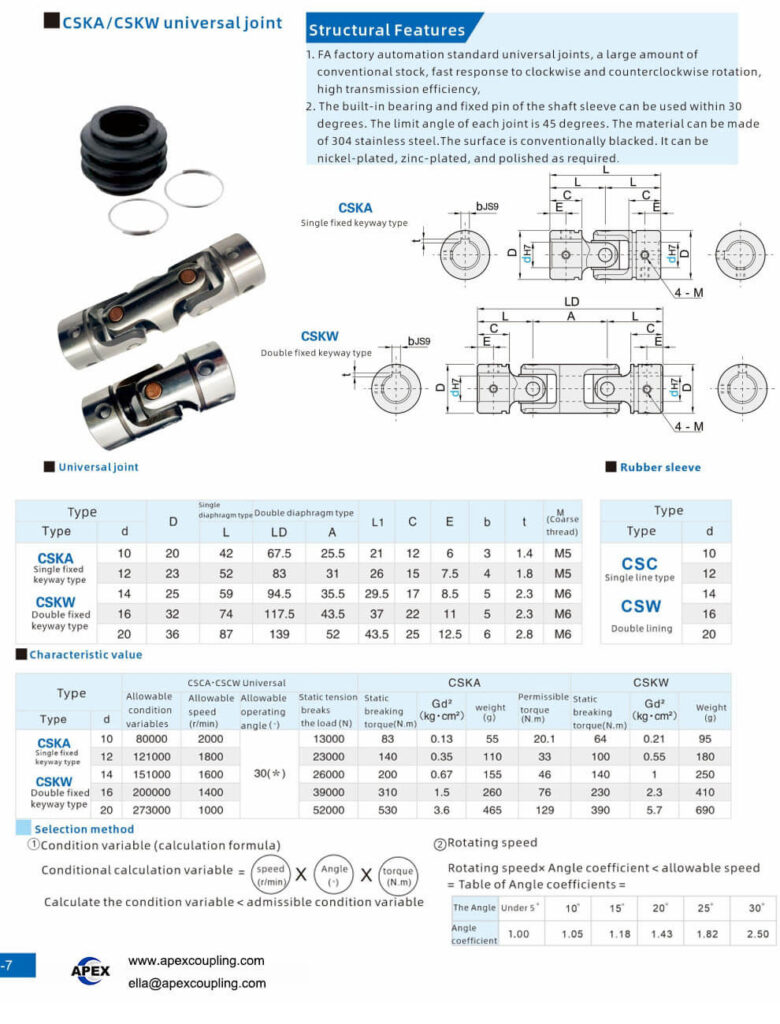

3. Torque Density and H7 Precision Fits As detailed in the technical specifications, the CSKA/CSKW series covers bore diameters from 10 mm to 20 mm:
H7 Precision Tolerances: Precise bore machining guarantees concentricity, preventing shaft slipping and minimizing rotational vibration.
Torque Capacities: Permissible operating torques range from 20.1 N·m (10 mm bore) up to 129 N·m (20 mm bore), with static breaking loads reaching 52,000 N.
4. Custom Coatings & Rubber Protection Apexcoupling provides tailored surface treatments and protective accessories for harsh operating environments. Standard black oxide or polished finishes can be upgraded to nickel or zinc plating, or manufactured directly in 304 stainless steel. Additionally, optional CSC/CSW rubber protective sleeves shield internal bearing journals from dusty or abrasive ambient conditions.
