Introduction In high-dynamic automation, main spindle configurations, and heavy lifting platforms, the coupling faces continuous mechanical strain. Frequent starting, stopping, and instantaneous reversing cycles subject the flexible link to severe torsional stress. If a coupling lacks sufficient preload or material density, it develops rotational backlash, accelerating bearing failure and ruining positioning accuracy. The industrial solution to these punishing operational stresses is the DJ-B Series Enlarged Bore Star Elastic Coupling.

1. The Mechanics of Pre-Stressed Zero-Backlash Connections Standard jaw couplings slide together loosely, relying on loose gaps to accommodate assembly misalignments. However, when the motor reverses direction, this clearance creates a micro-delay or “clunk” that introduces positioning errors. The DJ-B series utilizes a pre-stressed elastic assembly protocol. By forcing an optimized polyurethane star element into a precisely milled jaw chamber, the elastomer is placed under constant compression. This eliminates internal spacing, guaranteeing that clockwise and counter-clockwise forces transfer instantly with zero backlash.

2. Scaling from 15 to 235,000 N.m Across Extreme Environments Industrial operations demand versatility. Whether driving a high-speed CNC spindle or a heavy-duty multi-ton construction hoist, the drivetrain must remain rock-solid. The DJ-B design scales seamlessly across a massive operational window, handling up to 235,000 N.m of nominal torque. Furthermore, because industrial environments are rarely climate-controlled, the core polyurethane matrix is thermally stabilized to run continuously from freezing sub-zero temperatures (-35°C) up to high ambient levels (80°C) without degrading or becoming brittle.

3. Pure 45# Round Steel vs. Commercial Cast Iron Hubs When transmitting high torques, the material choice for the coupling hub is critical. Low-cost cast iron variants can hide interior gas pockets or sand impurities that fracture under sudden starting loads. Our DJ-B hubs are machined from solid 45# round bar steel with zero structural flaws. This provides higher material density and yield strength, allowing the ears of the coupling to handle intense torsional shocks without expanding or deforming.

4. Optimized Concentricity via H7 CNC Limits Vibration is a primary cause of mechanical component failure. By maintaining an H7 internal bore tolerance during CNC processing, every DJ-B coupling aligns perfectly with the drive shaft. Backed by Apexcoupling’s extensive inventory of semi-finished stock parts, we provide direct factory-level customization. Whether your design requires custom keyway layouts, specialized set screws, or non-standard metric configurations, our manufacturing team delivers precision links built to lower your total cost of ownership.

Caption: Massive Torque. Absolute Zero Backlash. Continuous Duty. ⚙️🏗️

Operating heavy lifting platforms, automated cranes, or precision machine spindles? Stop letting reversing shock loads wear out your gearboxes. Upgrade your mechanical links with the DJ-B Series Enlarged Bore Star Elastic Couplings by Apexcoupling.

Engineered for high-frequency start-and-stop cycles, the DJ-B series delivers zero-backlash accuracy under extreme loads.

✅ Pre-Stressed Architecture: Preloaded jaw design ensures zero play during rapid clockwise & counter-clockwise directional changes.

✅ Massive Torque Envelope: Scales smoothly from 15 all the way up to 235,000 N.m for extreme heavy duty.

✅ Enlarged Bore Advantage: Fits larger shaft diameters within a compact outer body, reducing rotational inertia.

✅ Pure 45# Solid Steel: Forged from impurity-free round steel with anti-rust chemical blackening—zero casting defects.

✅ Climate Defended: High-performance polyurethane spiders operate flawlessly from -35°C up to 80°C.

✅ H7 Concentricity: Precision-ground internal bores eliminate shaft runout and reduce runtime vibration.

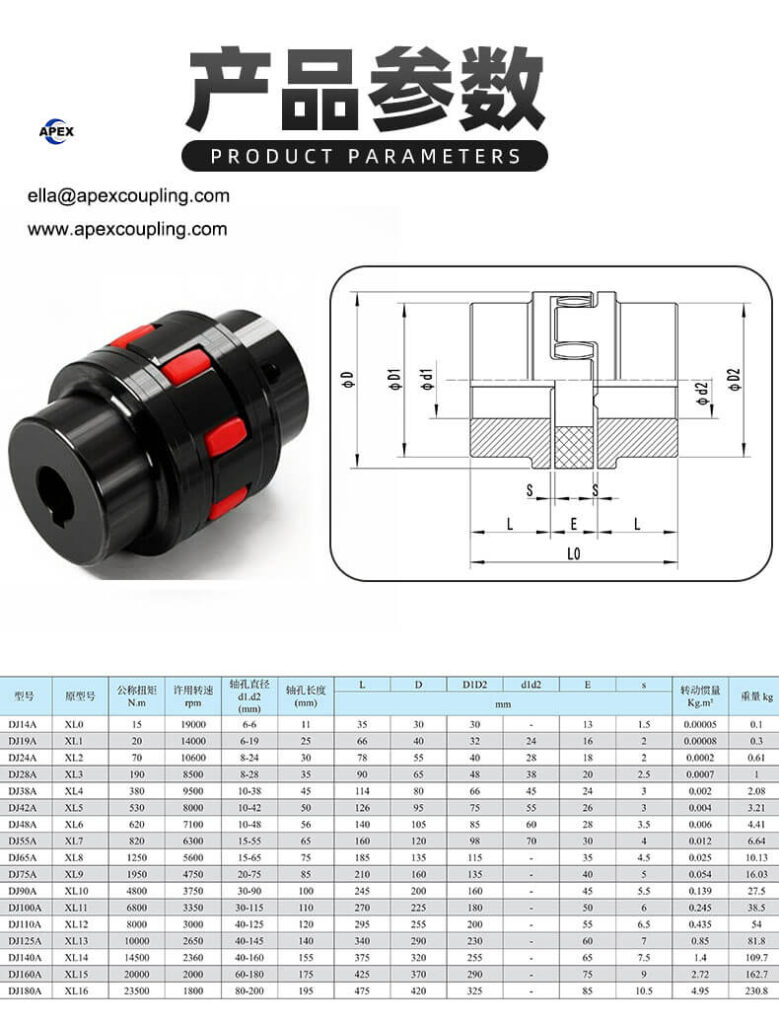

Check out image_bbef28.png to view our structural parameters and standard dimensional ranges. We back your supply chain with huge volumes of semi-finished components, guaranteeing rapid custom boring and minimal lead times! 🌍📦

Inquiry: www.apexcoupling.com

DJ-B Series Enlarged Bore Star Elastic Coupling | 15–235,000 N.m High-Torque Zero-Backlash Drivetrain Link

📩 Direct factory sourcing with full OEM/ODM drawing support. Direct Message our engineering team today for an instant quote or a digital catalog setup!
