Jaw couplings are among the most popular and versatile flexible couplings in industrial power transmission – and Lovejoy is one of the most recognized brands in the industry. But what if you could get the same quality – or better – at a more competitive price?

The Apexcoupling Germany Quality Jaw Coupling offers a direct drop-in replacement for Lovejoy L-series and GS-series couplings, with the added benefit of Bayer Germany elastomer for superior durability.

This guide explains how jaw couplings work, compares L-series and GS-series designs, and helps you select the right Lovejoy replacement for your application.

1. What Is a Jaw Coupling?

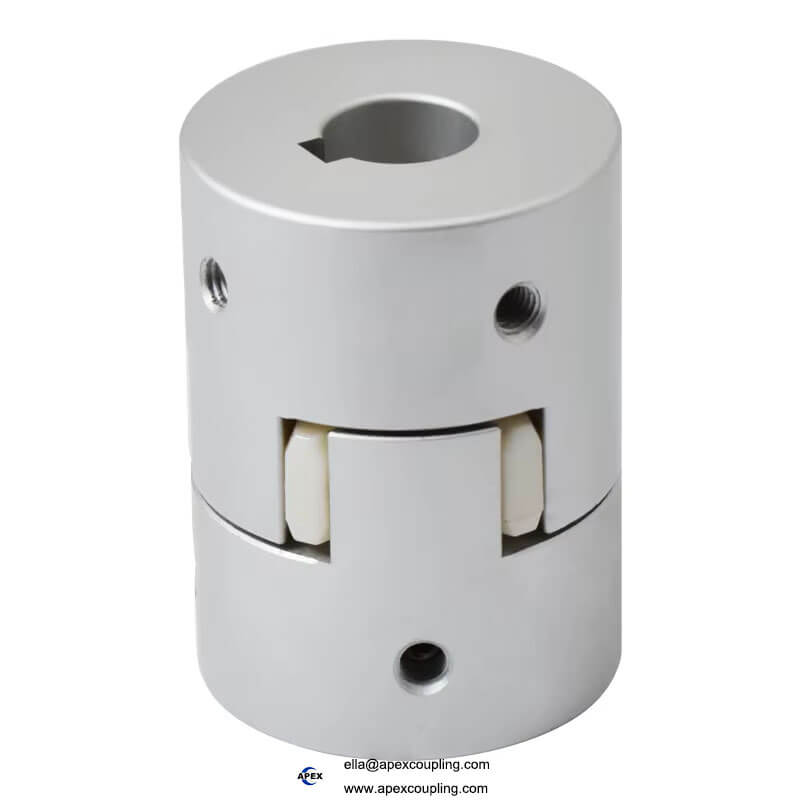

A jaw coupling consists of:

• Two metal hubs – available in aluminum, steel, cast iron, or stainless steel

• One elastomeric spider – rubber, polyurethane, Hytrel®, or bronze

The spider sits between the jaws of the two hubs, transmitting torque while absorbing shock, dampening vibration, and compensating for misalignment.

Key advantages:

• Fail-safe – continues to function if spider fails

• No metal-to-metal contact – reduces wear and noise

• Oil, dirt, sand, moisture, and grease resistant

• Easy installation – simple 3-piece assembly

2. Lovejoy Compatibility – L-Series vs GS-Series

Lovejoy offers two main jaw coupling series:

✅ Our Germany Quality Jaw Coupling is dimensionally interchangeable with both series.

3. Why Choose Germany Quality Elastomer?

The spider is the heart of a jaw coupling – and the quality of the elastomer material determines:

• Service life – Bayer material lasts longer than standard elastomers

• Torque capacity – Higher quality material transmits more torque

• Temperature resistance – Wider operating temperature range

• Chemical resistance – Superior oil and chemical resistance

✅ Our elastomer material is sourced from Bayer Germany – ensuring premium quality and consistent performance.

4. Hub Material Selection – Aluminum vs Steel

5. Spider Material Selection – Choose the Right Insert

6. Zero Backlash – Why It Matters

Backlash (rotational clearance) in a coupling causes:

• Position errors – Inaccurate feedback in servo systems

• Reduced accuracy – Poor system performance

• Control instability – Oscillations in motion control

✅ The GS-series (curved jaw) offers zero backlash capability – ideal for servo and positioning drives.

7. Applications Where Jaw Couplings Excel

8. Installation & Maintenance Tips

1. Clean shafts and bores – Remove oil, grease, and debris

2. Check alignment – Even with misalignment compensation, keep within recommended limits (≤1° angular, ≤0.015″ parallel)

3. Install spider correctly – Ensure proper fit between the two hubs

4. Tighten fasteners evenly – Use a torque wrench to specification

5. No lubrication required – Spider is self-lubricating

6. Inspect spider periodically – Replace if cracked, worn, or deformed

7. Fail-safe backup – If spider fails, schedule prompt replacement

9. Selection Checklist

• Series: L-Series (standard) or GS-Series (zero backlash)

• Size: L035 to L276 or GS14 to GS55 – match your torque requirement

• Hub material: Aluminum (lightweight) or Steel (heavy-duty)

• Spider material: NBR (standard), Polyurethane (higher torque), Hytrel® (high torque/temp), or Bronze (low speed)

• Bore size: Match your shaft diameters – custom available

• Fastening: Set screw, clamping, or keyway

• Application: Construction, pumps, conveyors, servo drives, machine tools

10. Conclusion

The Germany Quality Jaw Coupling from Apex Coupling offers a direct, cost-effective replacement for Lovejoy L-series and GS-series couplings – with the added advantage of Bayer Germany elastomer for superior durability, 0.01mm precision, and zero backlash capability. With aluminum or steel hubs, multiple spider materials, and full OEM customization, it is the ideal solution for construction machinery, pumps, conveyors, compressors, and precision motion control applications.

👉 Need a Lovejoy replacement coupling? Contact us with your coupling size, bore, and material requirements.
