Introduction In modern automated production lines, industrial food processing mixers, and commercial packaging machinery, mechanical drive assemblies frequently face dual challenges: angular misalignment and axial linear movement. When a driving motor is mounted in a fixed position while the output roller or mixing arm must lift, stroke, or slide back and forth, standard couplings cannot accommodate the changing distance. Forcing a rigid or basic flexible joint into this layout generates high axial loads that can ruin motor bearings and twist shafts. Specifying an advanced, dynamic component like the Stainless Steel Double Universal Joint Telescopic Shaft resolves this issue. This technical brief reviews the kinematics of expandable cardan joints and explains how stainless steel metallurgy provides long-term reliability in challenging environments.

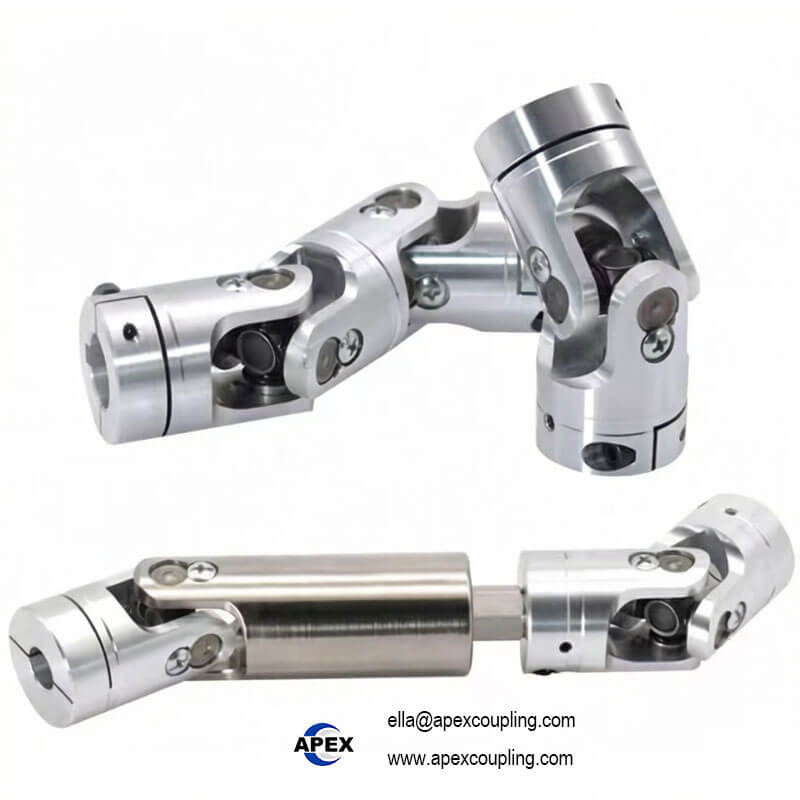

1. Kinematics of Double-Joint Telescopic Articulation A standard single universal joint can transfer rotational force through an angle, but it cannot accommodate parallel shaft offsets or change its overall length. The telescopic double-joint assembly solves both limitations by combining three distinct mechanical functions:

• Dual Gimbal Halves: The two matching cross-joints compensate for compound angular misalignments up to 35 degrees while minimizing velocity fluctuations (non-uniform rotation).

• Central Sliding Spline: An internal linear slide or spline shaft allows the assembly to expand and contract smoothly along its axis. This configuration ensures continuous torque delivery while the machinery undergoes real-time positioning adjustments or strokes.

2. Anti-Corrosion Dynamics: Why Stainless Steel is Vital for Sanitation As shown in the technical profile in image_d41610.png, our telescopic shafts are built from premium Stainless Steel. In high-moisture environments—such as restaurant kitchens, meat processing lines, or chemical facilities—standard alloy steels can rust quickly, leading to surface scaling and component binding. Stainless steel contains high chromium and nickel content, creating a self-healing chromium oxide layer that resists rust, moisture, and harsh cleaning chemicals. This ensures a clean, smooth-sliding telescopic action and prevents metallic contamination on food-processing lines.

3. Minimizing Shaft Runout with Balanced Metric Sizing Operating high-torque telescopic shafts safely requires precise component tolerances. Because these assemblies feature multiple moving parts (two pivoting joints and a sliding center spline), even minor clearance errors can cause shaft runout and imbalance. Our telescopic shafts are precision-machined to strict metric tolerances, featuring an accurate 30mm internal bore and a balanced 400mm base length. This high concentricity helps control vibration, reduces operational noise, and protects adjacent gearbox seals during high-speed rotation.

4. Versatile Applications: From Industrial Mixing to Commercial Restaurant Equipment Because the telescopic design handles axial expansion and corrosion well, it is widely used across specialized sanitation and automated sectors:

• Commercial Restaurant Infrastructure: Powers automated slicing machines, industrial dough mixers, and overhead conveyor drives that undergo regular washdowns.

• Pharmaceutical Packaging: Ensures clean, precise power transmission for indexing carousels and filling pumps without requiring heavy, oil-based lubrication that could risk product contamination.

5. Sourcing All-Size Custom Engineering via Apexcoupling Industrial machinery and custom prototype lines frequently require non-standard dimensions, specific linear stroke limits, customized flange connections, or specialized keyway shapes. Sourcing these custom parts through traditional distributor networks can introduce long lead times and high retail markups. Partnering directly with an established manufacturer like Apexcoupling simplifies this sourcing process. Operating out of our advanced plant in Guangdong, China, our engineering teams provide full OEM, ODM, and OBM services to manufacture high-performance stainless steel telescopic joints tailored exactly to your technical drawings, backed by an extended 3 Years warranty.
