Helical beam couplings (also known as parallel line couplings, slotted couplings, or flexible beam couplings) are essential components in precision motion control systems. With their unique helical cut design, they provide zero backlash, low inertia, and excellent misalignment compensation – making them the ideal choice for encoders, resolvers, 3D printers, CNC machines, and servo motor applications.

This guide explains how helical beam couplings work, their key advantages, and how to select the right model for your application.

1. What Is a Helical Beam Coupling?

A helical beam coupling is a one-piece flexible coupling with a series of helical (spiral) cuts machined into a cylindrical metal body. These cuts create a flexible “spring-like” section that allows the coupling to:

• Transmit torque while accommodating misalignment

• Absorb vibration and shock loads

• Provide zero backlash operation

• Maintain constant velocity torque transmission

💡 The helical design allows the coupling to stretch, compress, and flex, providing high flexibility compared to solid couplings.

2. Key Advantages of Helical Beam Couplings

3. Applications Where Helical Beam Couplings Excel

Helical beam couplings are widely used in various industries due to their flexibility and precision:

4. How to Select the Right Helical Beam Coupling

Step 1: Determine Your Torque Requirement

• Calculate the torque your application requires.

• Select a coupling with adequate torque capacity.

• Helical beam couplings are typically used for low to medium torque applications.

Step 2: Match Shaft Diameters

• Measure your shaft diameters.

• Select a model with a bore range that accommodates your shafts.

• H7 bore tolerance is recommended for precision fit.

Step 3: Consider Space Constraints

• Measure available space for the coupling (outer diameter and length).

• Helical beam couplings are available in compact sizes for space-constrained applications.

Step 4: Evaluate Misalignment

• Determine the expected angular, radial, and axial misalignment.

• Helical beam couplings can accommodate angular misalignment up to 1.5°, radial misalignment up to 0.25mm, and axial misalignment up to 0.5mm.

Step 5: Consider Environmental Factors

• Temperature: Aluminum couplings operate in a wide temperature range.

• Corrosion: Anodized aluminum offers good corrosion resistance.

• Chemical exposure: Consider material compatibility.

Step 6: Select Fastening Method

• Clamping screw: Provides even clamping force, no shaft damage.

• Set screw: Simple and cost-effective.

5. Material Selection – Why 7075 Aluminum?

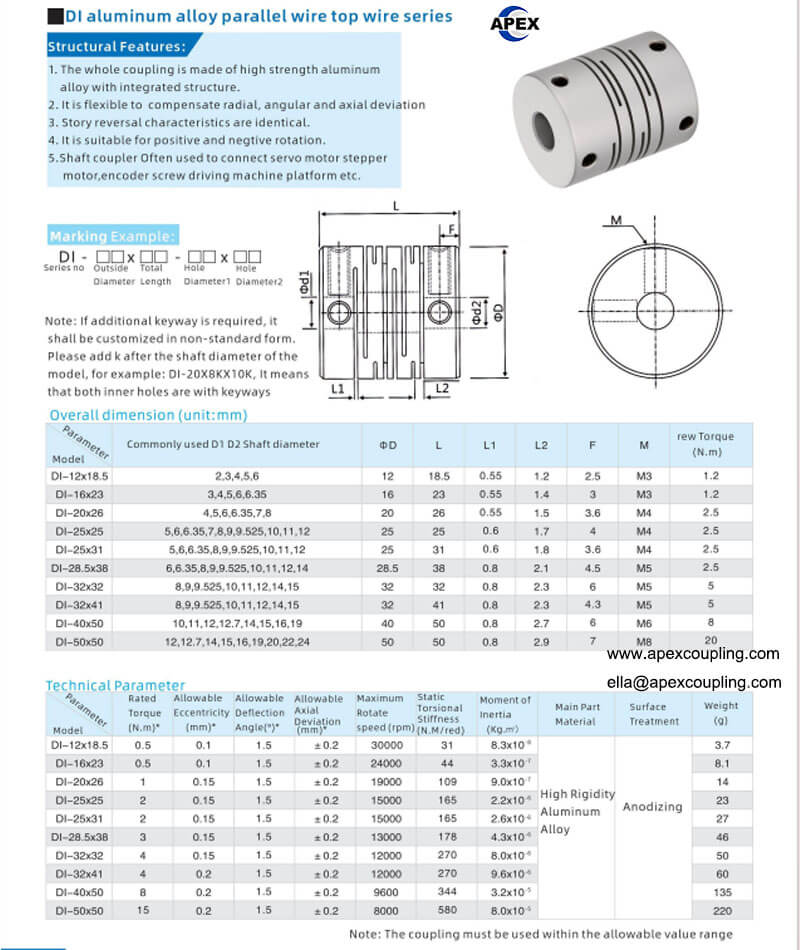

The DI series uses 7075-T6 high-strength aluminum alloy:

6. Installation & Maintenance Tips

1. Clean shafts – Remove oil, grease, and debris before installation.

2. Check alignment – Even with misalignment compensation, keep within recommended limits.

3. Tighten clamping screws evenly – Use a torque wrench in a star pattern.

4. No lubrication required – Coupling is maintenance-free.

5. Periodic inspection – Check for wear, cracks, or deformation in the helical cuts.

6. Keep clean – Remove dust and debris to prevent premature wear.

7. Real‑World Example – Encoder Upgrade

A machine builder was experiencing position errors on a servo-driven indexing table due to backlash in their existing coupling. The coupling also transmitted vibration to the encoder, causing signal noise.

They switched to Apex Coupling DI aluminum parallel line coupling (7075 aluminum, zero backlash, helical design). Results:

• Position errors eliminated – zero backlash

• Signal noise reduced – vibration damping

• Maintenance eliminated – no lubrication required

• Accuracy improved – H7 precision bore

8. Selection Checklist

• □

  Type: DI – aluminum parallel line (helical beam) coupling

• □

  Material: 7075 aluminum – lightweight, high strength

• □

  Backlash: Zero backlash – precision applications

• □

  Bore: H7 tolerance – match your shaft diameters

• □

  Fastening: Clamping screw – secure, even clamping force

• □

  Misalignment: Angular, radial, axial – verify capacity

• □

  Maintenance: Maintenance-free – no lubrication

• □

  Application: Encoders, 3D printers, servo motors, CNC machines

9. Conclusion

The DI aluminum parallel line coupling from Apex Coupling offers the perfect combination of zero backlash, low inertia, and excellent misalignment compensation for precision motion control applications. With 7075 aluminum construction, helical (parallel line) design, H7 bore precision, and maintenance-free operation, it is the ideal solution for encoders, resolvers, 3D printers, servo motors, and CNC machines.

👉 Need a helical beam coupling for your precision application? Contact us with your bore size and requirements.
