Universal joints (also called U-joints, cardan joints, or Hooke’s joints) are essential components in farm and construction machinery, transmitting power between shafts that are not perfectly aligned. Whether you are maintaining a tractor PTO shaft, repairing an excavator drive system, or specifying couplings for a new harvester, choosing the right universal joint – single or double, material, and configuration – can significantly impact machine reliability, uptime, and operating costs.

This guide explains the key differences between single and double universal joints, how to select the right one for your farm or construction application, and why 42CrMo steel is the preferred material for demanding environments.

1. Single Joint vs Double Joint – Which One Do You Need?

Universal joints are available in two primary configurations: single joint and double joint.

For farm and construction applications:

• Single joint is ideal for standard PTO shaft connections where shafts are on the same plane but angled.

• Double joint is recommended for applications where shafts are both angled and offset – common in harvesters, loaders, excavators, and off-road vehicles.

💡 Double joint configurations provide smoother power transmission and reduced vibration when both angular and parallel misalignment are present.

2. Why 42CrMo Alloy Steel?

42CrMo is a chromium-molybdenum alloy steel that, after quenching and tempering, offers:

• High tensile strength – Handles torque without deformation

• Excellent fatigue resistance – Withstands millions of cycles

• High impact toughness – Resists shock loads without cracking

• Good wear resistance – Long service life under friction

• Corrosion resistance – Suitable for outdoor farm and construction environments

✅ 42CrMo is the material of choice for heavy-duty universal joints used in agricultural and construction equipment.

3. Operating Angle – 45° Capacity

The universal joint is designed for smooth operation up to 45° per joint.

Practical tip: For most farm and construction applications, try to keep operating angles below 30° for continuous operation to maximize service life.

4. DIN 808 Standard – Quality Assurance

The coupling is manufactured to DIN 808 (German industrial standard), which ensures:

• Consistent quality – standardized dimensions and tolerances

• Interchangeability – compatible with other DIN 808 compliant products

• Reliable performance – tested and proven design

✅ DIN 808 is the recognized international standard for precision universal joints.

5. Custom Hole Options – Keyway, Hexagon, Square

Standard universal joints come with round bores. But many farm and construction applications require non-standard connections:

We machine custom bores to your exact specifications – just provide your drawing.

6. Applications Across Farm & Construction Industries

7. Real‑World Example – Farm Equipment Upgrade

A farm equipment manufacturer was experiencing premature wear on standard universal joints used in harvester drives. The joints failed due to high operating angles (up to 35°) and exposure to dirt and moisture.

They switched to Apex Coupling double universal joints (42CrMo, double joint, H7 bore). Results:

• Service life extended – 42CrMo withstood high angles and shock loads

• Smoother operation – double joint reduced vibration at 35° angles

• Corrosion resistance – 42CrMo outperformed standard steel in outdoor conditions

• Less downtime – fewer replacements during harvest season

8. Installation & Maintenance Tips

1. Lubricate regularly – Proper lubrication extends cross joint and bearing life

2. Check angle – Keep operating angles ≤30° for continuous operation

3. Clean after use – Remove dirt, debris, and chemicals to prevent corrosion

4. Inspect for wear – Check cross joint and bearings periodically

5. Replace worn components – Don’t wait for complete failure

6. Bore fit – Use H7 shaft tolerance for best concentricity

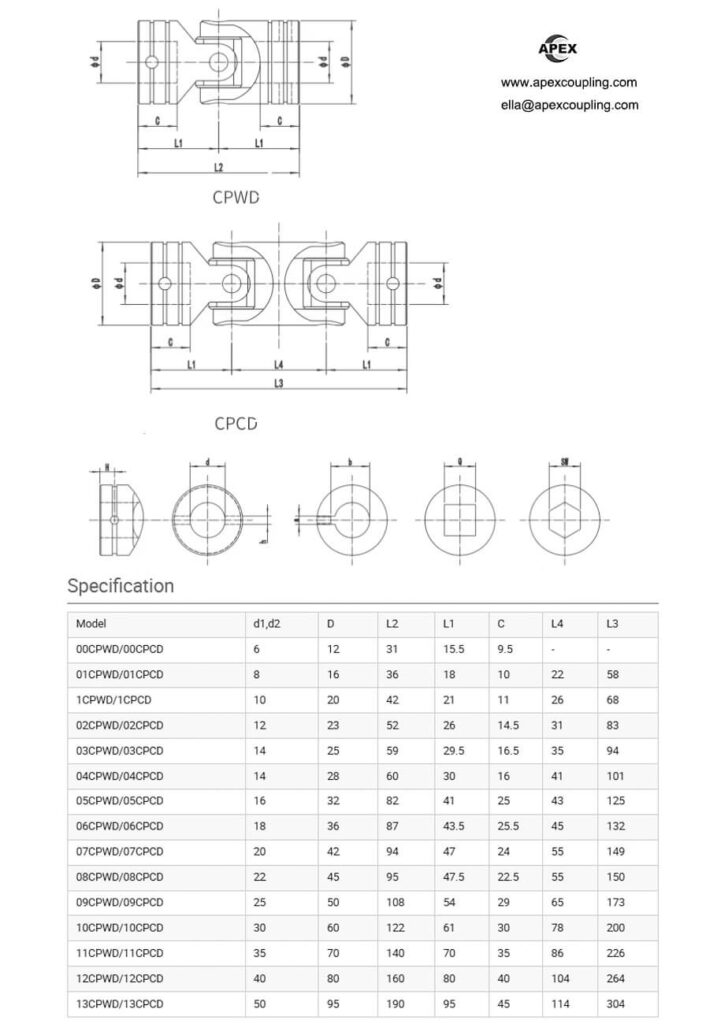

9. Selection Checklist

• Configuration: Single joint or double joint

• Material: 42CrMo alloy steel for strength and durability

• Bore size: 6–50 mm – match your shaft diameters

• Torque: 4.5–1500 N·m – select based on your requirement

• Angle: Up to 45° per joint – keep ≤30° for continuous use

• Bore type: Keyway, hexagon, square, or plain

• Standard: DIN 808 for quality assurance

• Certification: ISO9001 & BV certified

10. Conclusion

The high precision universal joint coupling from Apex Coupling offers the perfect combination of strength, flexibility, and durability for farm and construction applications. With 42CrMo steel construction, single or double joint configurations, 45° angular capacity, and DIN 808 standard compliance, it is the ideal solution for tractors, harvesters, excavators, loaders, and PTO drive systems.

👉 Need a universal joint for your farm or construction equipment? Contact us with your configuration, bore, and torque requirements.
