Universal joints (cardan joints) are essential for transmitting power between shafts that are not perfectly aligned. In factory automation, packaging machinery, woodworking equipment, and multi-spindle drills, the choice between a single joint (CPCA) and a double joint (CPCW) – as well as material and finish – can significantly impact performance, reliability, and maintenance costs.

This guide explains how to select the right FA automation standard universal joint for your application, using the CPCA/CPCW series as a practical example.

1. What Is an FA Automation Standard Universal Joint?

FA (Factory Automation) standard universal joints are manufactured to industry-standard dimensions with:

• Large conventional stock – ready for immediate shipment

• Rapid bidirectional response – identical clockwise and counterclockwise rotation

• High transmission efficiency – minimal power loss

• Built-in bearings and fixed pins – smooth operation up to 30°

• Low noise & low backlash – precision fit for quiet operation

✅ The CPCA/CPCW series meets all FA automation standards – making it the ideal choice for automation, packaging, and material handling applications.

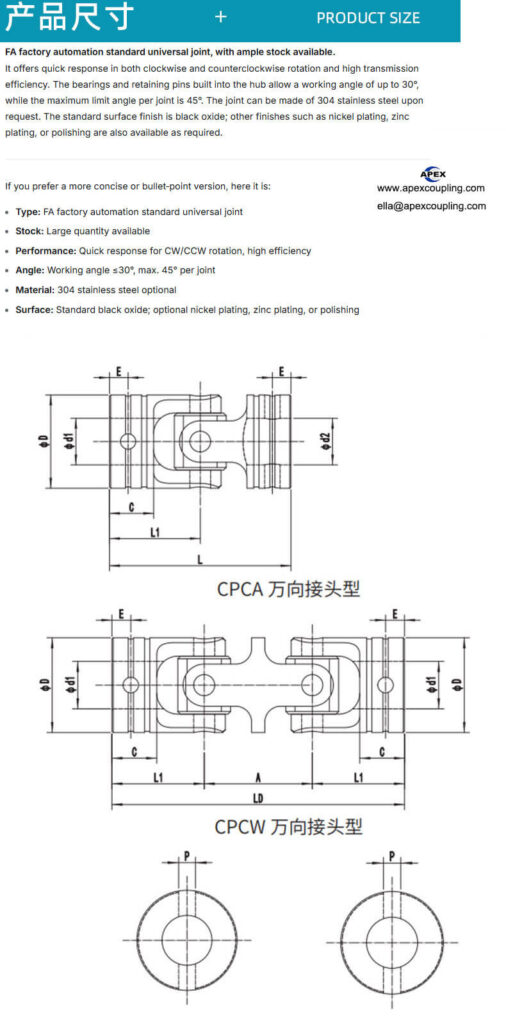

2. Single Joint (CPCA) vs Double Joint (CPCW) – Which One Do You Need?

Rule of thumb for FA automation:

• Use single joint (CPCA) for straight-line automation with slight angular misalignment.

• Use double joint (CPCW) for applications where shafts are both angled and offset – common in conveyors, packaging machinery, and multi-spindle drills.

💡 Double joint configurations provide smoother power transmission and reduced vibration when both angular and parallel misalignment are present.

3. Bearing Selection – Pin/Block vs Needle Roller

The CPCA/CPCW series offers two bearing options:

Recommendation:

• Choose pin/block bearing for heavy-duty, low-speed applications with shock loads.

• Choose needle roller bearing for high-speed applications (above 1000 RPM) where precision and low friction are priorities.

⚠️ Note: It is recommended to use the coupling at ≤50% of the maximum rated speed for optimal service life.

4. Material Selection – 42CrMo Alloy Steel vs 304 Stainless Steel

Our recommendation for FA automation:

• Choose 42CrMo with black oxide for most factory automation and industrial applications.

• Choose 304 stainless steel for food & beverage, chemical, or outdoor applications where corrosion resistance is critical.

5. Operating Angle – 30° Working vs 45° Limit

The CPCA/CPCW series is designed with built-in bearings and fixed pins for smooth operation up to 30° in continuous use. The absolute limit per joint is 45°.

Practical tip: For most FA automation applications, try to keep operating angles below 30° for continuous operation to maximize service life.

6. Surface Finish Options – Protection & Appearance

Recommendation:

• Black oxide is sufficient for most FA automation applications.

• Nickel or zinc plating for wet or humid conditions.

• Polished or chrome plated for applications where appearance or smoothness is important.

7. Applications Across Industries

8. Real‑World Example – Packaging Machinery Upgrade

A packaging machinery manufacturer was experiencing premature wear on standard universal joints used in their conveyor drives. The joints operated at 25° angles and 1500 RPM, causing frequent failures and downtime.

They switched to Apex Coupling CPCW double universal joints (42CrMo, needle roller bearing, H7 bore). Results:

• Service life extended – needle roller bearing handled 1500 RPM smoothly

• Angle capacity – 25° well within the 30° recommended range

• Vibration reduced – H7 bore improved concentricity

• Less downtime – fewer replacements during production

9. Installation & Maintenance Tips

1. Check alignment – Keep operating angles ≤30° for continuous operation

2. Lubricate pin/block bearings – Regular lubrication extends service life

3. Needle roller bearings – Sealed, low maintenance – inspect periodically

4. Check for wear – Inspect cross shaft and bearings periodically

5. Dynamic balancing – For speeds above 1000 RPM, ensure the joint is balanced

6. Bore fit – Use H7 shaft tolerance for best concentricity

7. Speed recommendation – Use at ≤50% of maximum rated speed for optimal life

10. Selection Checklist

• □

  Configuration: CPCA (single) or CPCW (double)

• □

  Bearing: Pin/block (1000 RPM) or Needle roller (4000 RPM)

• □

  Material: 42CrMo alloy steel (standard) or 304 stainless steel

• □

  Finish: Black oxide, polished, nickel, zinc, or chrome

• □

  Bore size: 10, 12, 14, 16, 18, 20, 22, 25 mm – match your shaft diameter

• □

  Bore type: Keyway, hexagon, square, or plain

• □

  Angle: ≤30° for continuous use (45° limit per joint)

• □

  Speed: ≤50% of max rated speed for optimal life

11. Conclusion

The CPCA/CPCW precision universal joint couplings from Apex Coupling offer the perfect combination of FA automation standard quality, 42CrMo strength, and configuration flexibility for packaging, woodworking, multi-spindle drill, and general automation applications. With single or double joint options, set screw/pin fastening, 304 stainless steel availability, and multiple surface finishes, it is the ideal solution for demanding industrial environments.

👉 Need an FA automation universal joint for your application? Contact us with your configuration, bore size, and material requirements.
