F Type Tyre Coupling Selection Guide – High Misalignment, Shock Absorption for Pumps & Motors

F Type tyre couplings are among the most versatile elastomeric couplings available. With their high-elastic rubber tyre element, they offer exceptional misalignment capacity, shock absorption, vibration damping, and maintenance-free operation – making them ideal for pumps, motors, compressors, conveyors, and heavy industrial drives.

This guide explains how F Type tyre couplings work, their key advantages, and how to select the right model for your application – including replacement options for Martin/Fenner/Fenaflex.

1. What Is an F Type Tyre Coupling?

An F Type tyre coupling consists of:

• Two hubs – 45# steel or cast iron (GG25)

• One high-elastic rubber tyre element – with fabric reinforcement

• Taper bush or pilot bore – for shaft mounting

The F Type designation means the bushing is installed from the inside of the hub. The tyre element transmits torque while absorbing shock, dampening vibration, and compensating for misalignment.

💡 Tyre couplings are often compared to jaw couplings – but tyre couplings offer significantly higher misalignment capacity and better shock absorption.

2. Key Advantages of F Type Tyre Couplings

3. Tyre Coupling vs Jaw Coupling – Key Differences

✅ Choose tyre coupling when: You need maximum misalignment capacity, shock absorption, and vibration damping – ideal for pumps, compressors, and engine-driven applications.

4. F Type vs H Type – Which One Do You Need?

💡 Both F and H type hubs can be combined with the same tyre element. F Type is the most common configuration for standard industrial applications.

5. Tyre Compound Selection – Standard vs FRAS

Recommendation:

• Choose Standard Rubber for most general industrial applications.

• Choose FRAS when fire safety and static electricity dissipation are critical – e.g., mining, chemical plants.

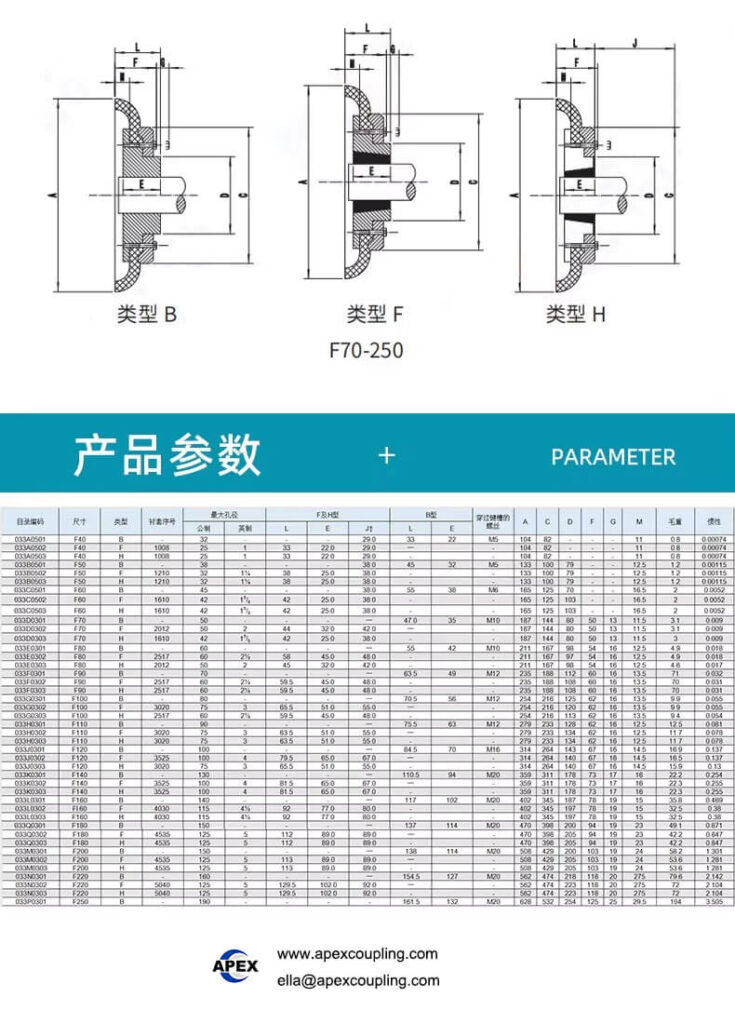

6. Replaces Martin / Fenner / Fenaflex

Our F Type tyre couplings are direct replacements for Martin, Fenner, and Fenaflex tyre couplings:

• Same dimensions – drop-in replacement

• Same performance – meets or exceeds OEM specifications

• Better value – factory-direct pricing

• F Type compatible – bushing from inside the hub

✅ Upgrade without design changes – direct replacement for Martin, Fenner, and Fenaflex tyre couplings.

7. Applications Where F Type Couplings Excel

8. Real‑World Example – Pump Drive Upgrade

A water treatment facility was experiencing frequent coupling failures on their pump drives due to misalignment and vibration. The existing jaw couplings could not accommodate the 2mm parallel misalignment, causing premature bearing failure.

They switched to Apex Coupling F Type tyre couplings (cast iron hubs, standard rubber tyre, F80 size). Results:

• Misalignment accommodated – 2mm parallel misalignment within tyre coupling capacity

• Vibration reduced – rubber tyre dampened pump vibrations

• Maintenance eliminated – no lubrication required

• Downtime reduced – easy tyre replacement without moving pump or motor

• Service life extended – bearings and seals lasted longer

9. Installation & Maintenance Tips

1. Check alignment – Even with high misalignment capacity, keep within recommended limits for optimal tyre life

2. Tyre selection – Choose the right compound for your environment (standard or FRAS)

3. Install tyre – Secure tyre to both hubs – follow torque specifications

4. Taper bush mounting – Use taper bush for easy installation and removal

5. No lubrication required – Tyre coupling is maintenance-free

6. Inspect tyre periodically – Check for cracks, wear, or oil damage

7. Replace tyre – Tyre can be replaced without moving connected shafts

10. Selection Checklist

• Type: F Type (bushing from inside) or H Type (bushing from outside)

• Size: F40 to F250 – select based on torque and shaft size

• Hub material: 45# steel or cast iron (GG25)

• Tyre compound: Standard rubber or FRAS (fire-resistant & anti-static)

• Mounting: Taper bush or pilot bore

• Misalignment: Up to 4° angular, 6mm parallel, 8mm axial

• Temperature: -20°C to +80°C

• Replacement: Direct replacement for Martin, Fenner, Fenaflex

11. Conclusion

The F Type flexible tyre coupling from Apex Coupling offers the perfect combination of high misalignment capacity, excellent shock absorption, and maintenance-free operation for pumps, motors, conveyors, and heavy industrial drives. With 45# steel or cast iron hubs, standard or FRAS tyre options, taper bush mounting, and direct replacement for Martin/Fenner/Fenaflex, it delivers reliable, long-lasting performance in demanding industrial environments.

👉 Need an F Type tyre coupling for your application? Contact us with your size, bore, and tyre compound requirements.
