Double-Taper Mechanics: Why Z2/A2 Expansion Sleeves Excel in High-Load Power Transmission
Introduction In high-precision, heavy-load drivetrain applications—such as CNC spindle drives, textile loom indexing feeds, printing press rollers, and high-speed packaging machinery—securing mounted hubs to rotating shafts without keys is essential for eliminating rotational backlash and fatigue failure. While standard single-taper locking assemblies are sufficient for basic loads, demanding environments require higher contact radial pressures and precise axial component positioning.
To meet these strict mechanical demands, machine designers specify Z2 / A2 Type Double-Taper Keyless Shaft Locking Assemblies (commonly cross-referenced as TLK200, KTR100, and AL-S). This article breaks down the wedge mechanics of double-taper architecture, details the anti-axial displacement feature, and explains why forged 45# steel construction provides superior operational reliability.

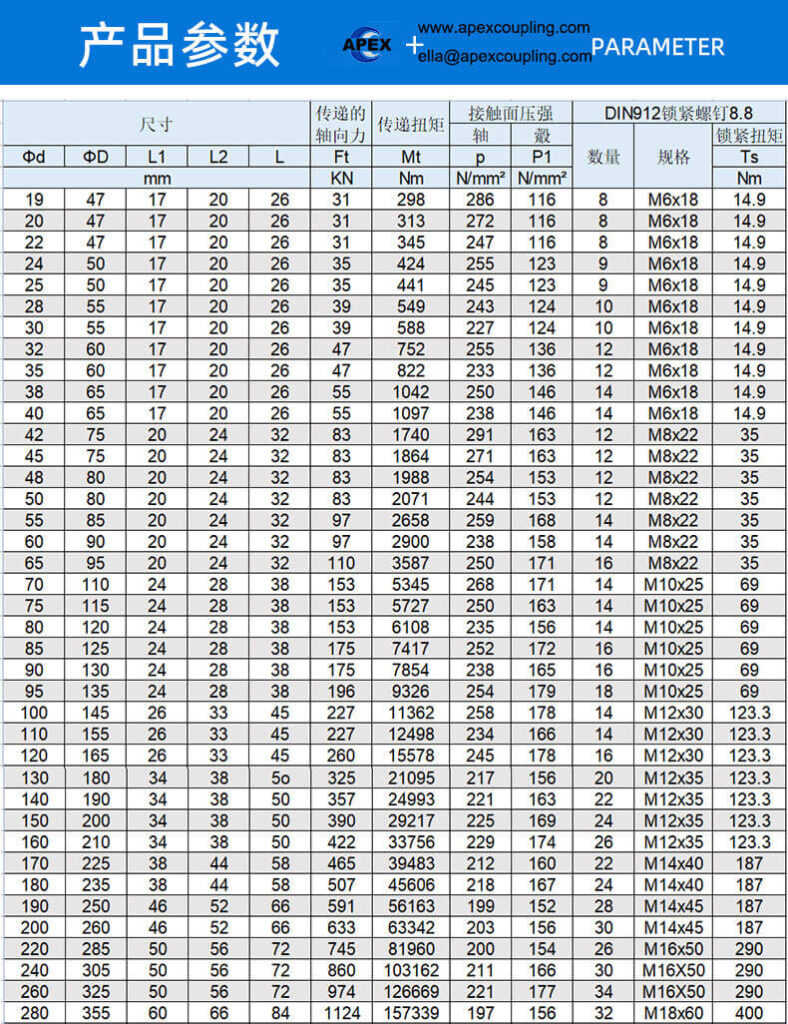

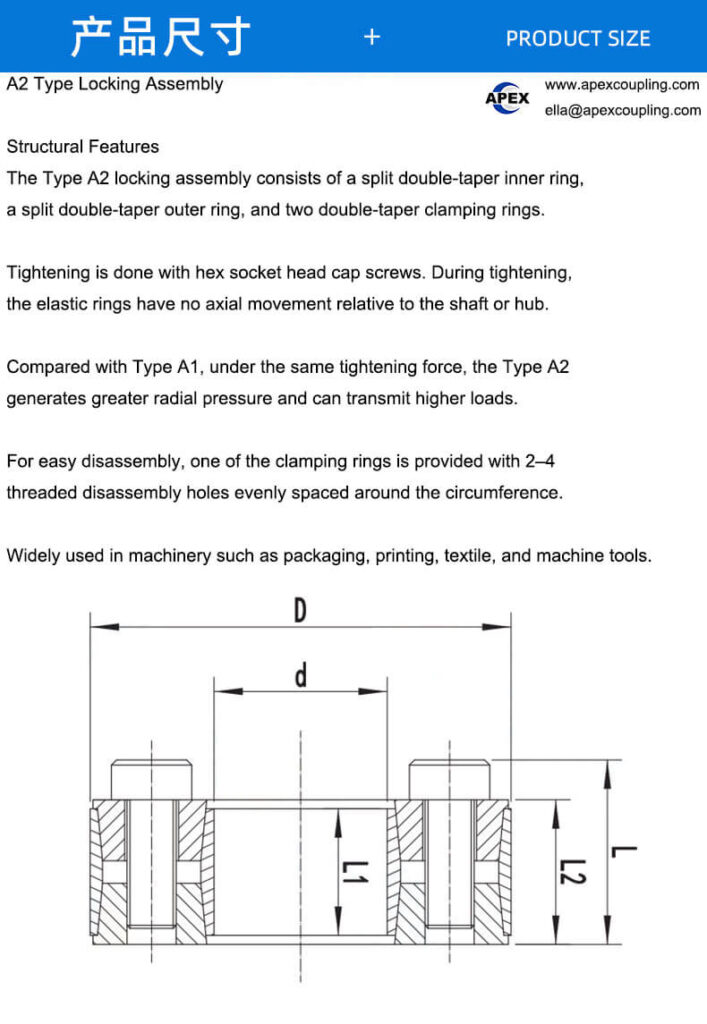

1. Dual-Taper Contact Mechanics: A1 vs. A2 Configurations The primary distinction between an A1 single-taper design and an A2 double-taper locking sleeve lies in internal pressure distribution and surface contact area.
Multi-Interface Compression: The A2 assembly utilizes a split double-taper inner ring, a split double-taper outer ring, and two matching pressure rings.
Greater Radial Output: When the inner hexagon bolts are torqued, force is applied simultaneously across two inclined taper planes. For the same bolt tightening torque, the double-taper geometry generates significantly higher radial pressure against both the shaft surface and the hub bore, allowing the assembly to transmit heavier torque and axial loads without slippage.
Â
2. Zero Axial Movement During Clamping A common challenge with certain expansion sleeves during bolt tightening is “axial shift,” where the hub or sleeve draws inward along the shaft axis as the tapers engage. In high-precision setups like synchronized timing sprockets or precision machine tool gears, even a fraction of a millimeter of axial drift can throw off alignment.
The structural geometry of the A2 / Z2 model solves this issue completely. As the socket screws compress the two outer pressure rings inward, the inner and outer taper rings compress radially in opposite directions without shifting axially relative to the shaft hub. This preserves exact component alignment during final torque-down.
3. Simple Installation and Integrated Disassembly Thread Holes Installing an A2 expansion sleeve requires no keys, no splines, and no thermal expansion heating. Technicians simply slide the lubricated assembly into position and tighten the bolts in a crosswise pattern to the specified torque.
When machinery maintenance or gear replacement is required, removing a rusted or tightly jammed keyless sleeve can often be difficult. To streamline maintenance, the A2 assembly features 2 to 4 integrated disassembly thread holes on the outer pressure ring. Technicians remove the main clamping bolts, thread them into the extraction holes, and torque them down. The bolts press directly against the adjacent ring, popping the taper interface apart instantly without requiring hammers, pullers, or heat.
4. Metallurgy and Custom Factory Engineering Support Heavy cyclic loading requires high yield strength and fatigue resistance. Apexcoupling Z2 / A2 locking assemblies are manufactured from forged, quenched, and tempered 45# carbon steel (or stainless steel for corrosive food/chemical environments). For extra-heavy drives where space is constrained, multiple A2 units can be installed in series along the shaft to scale overall load capacity.
Operating out of our advanced plant in Guangdong, China, Apexcoupling provides complete manufacturing support for standard and non-standard Z2 / A2 expansion sleeves. Whether you need standard replacements for TLK200 or KTR100 units or custom-machined dimensions, our engineering team supplies precision parts direct from the factory.
