Disc couplings (also known as diaphragm couplings) are essential for precision power transmission in servo motors, stepper motors, CNC machines, and high-speed automation equipment. With zero backlash, high torsional rigidity, and maintenance-free operation, they are the preferred choice for applications requiring accurate positioning and smooth operation.

This guide explains how to select the right double diaphragm disc coupling for your application, using the Dltb S45C steel double step double diaphragm series as a practical example.

1. What Is a Disc Coupling?

A disc coupling (diaphragm coupling) is a flexible coupling that uses one or more metal discs (diaphragms) to transmit torque while compensating for misalignment. Key characteristics include:

• Zero backlash – No rotational clearance

• High torsional rigidity – Precise torque transmission

• Maintenance-free – No lubrication required

• Long service life – No wear parts

• Misalignment compensation – Angular, radial, and axial

2. Single Diaphragm vs Double Diaphragm

✅ The double diaphragm design provides higher torque transmission capacity and better displacement compensation, making it ideal for demanding servo and stepper motor applications.

3. Why S45C Steel?

S45C is a medium-carbon structural steel widely used in mechanical engineering. For disc couplings, it offers:

• High strength – Handles torque without deformation

• Excellent wear resistance – Long service life

• Heat-treatable – Can be hardened for increased durability

• Good machinability – Precision machining for accurate bores

💡 S45C is the material of choice for high-performance disc couplings requiring strength and durability.

4. Why 8 Screws?

The 8-screw high-rigidity design offers significant advantages:

✅ The 8-screw design can transmit greater torque than 4 or 6-bolt designs, making it ideal for high-torque applications.

5. Double Step Design – Faster Assembly

The double step configuration achieves 20% faster assembly than traditional clamp couplings while ensuring precise clamping force. This is achieved through:

• Two-stage clamping – Progressive, even clamping force

• Precision machining – Accurate fit and alignment

• Easy installation – No special tools required

6. Zero Backlash – Why It Matters

Zero backlash is critical for:

• Servo motors – Precise positioning and speed control

• Stepper motors – No lost steps

• CNC machines – Surface finish accuracy

• Robotics – Repeatable motion

• High-speed applications – Smooth operation

💡 Disc couplings offer semi-permanent lifespan with zero backlash, making them ideal for high-precision applications.

7. Misalignment Compensation – Protecting Your Equipment

The double diaphragm design compensates for three types of misalignment:

By absorbing these deviations, the coupling reduces stress on bearings, seals, and other components – extending equipment life.

8. Keyway vs Clamping Fixation

💡 Keyway-connected double diaphragm couplings are the most conventional type, utilizing keys and keyways to transmit torque – offering a secure and stable connection suitable for heavy-load, low-to-medium speed applications.

9. Applications – Where Double Diaphragm Couplings Excel

10. Real‑World Example – Servo Motor Upgrade

A machine builder was experiencing positioning errors on a servo-driven indexing table due to backlash in their existing coupling. The errors caused misalignment during assembly, resulting in scrap and rework.

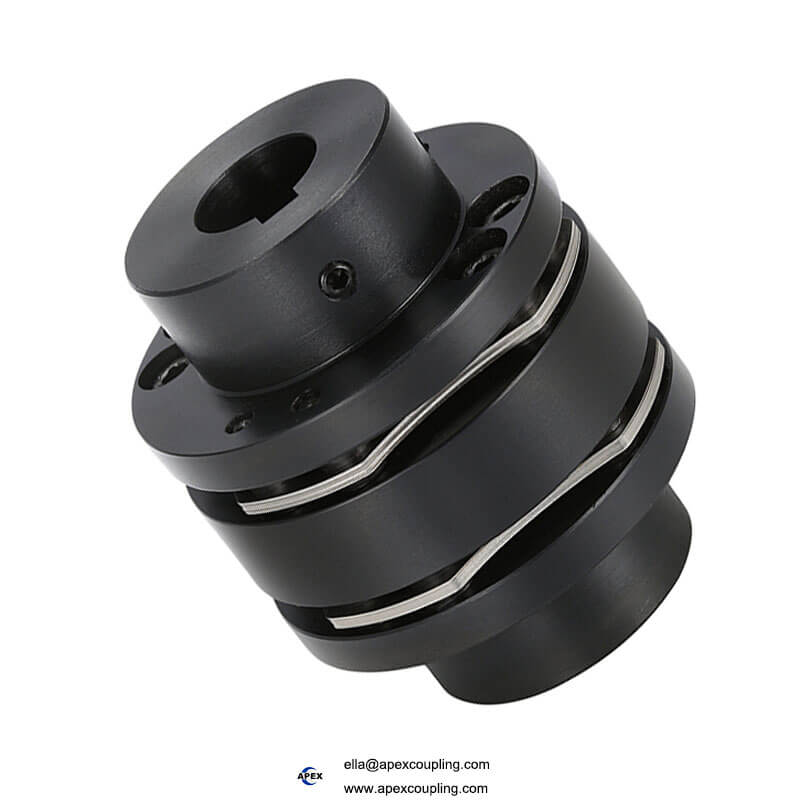

They switched to Apex Coupling Dltb double diaphragm disc coupling (S45C steel, 8-screw, zero backlash, keyway). Results:

• Positioning accuracy improved – backlash eliminated

• Cycle time reduced – no need for compensation moves

• Servo tuning simplified – consistent response

• Maintenance eliminated – no lubrication required

• Service life extended – stainless steel diaphragms with high fatigue resistance

11. Installation & Maintenance Tips

1. Clean shaft and bore – Remove oil, grease, and debris

2. Check alignment – Even with misalignment compensation, keep within recommended limits

3. Tighten screws evenly – Use a torque wrench in a star pattern (8-screw design)

4. No lubrication required – Disc coupling is maintenance-free

5. Inspect periodically – Check for wear or damage

6. Retighten after first operating hours – Normal bedding-in process

12. Selection Checklist

• Type: Double diaphragm for higher torque and better misalignment compensation

• Material: S45C steel for high strength and durability

• Screws: 8-screw design for maximum torque capacity

• Backlash: Zero backlash for servo and stepper motors

• Fixation: Keyway (high torque) or clamping (easy installation)

• Torque: 1–350 N·m – select based on your requirement

• Speed: Up to 10,000 RPM – match your motor speed

• Bore size: 3–55 mm – standard, custom available

13. Conclusion

The Dltb S45C steel double step double diaphragm disc coupling from Apex Coupling offers the perfect combination of high rigidity, zero backlash, and maintenance-free operation for precision servo and stepper motor applications. With S45C steel construction, stainless steel diaphragms, 8-screw high-rigidity design, and keyway or clamping fixation options, it delivers reliable, long-lasting performance in demanding industrial environments.

👉 Need a double diaphragm disc coupling for your application? Contact us with your torque, speed, bore, and fixation requirements.
