Tire couplings (also known as rubber element couplings or LLA type couplings) are among the most versatile and reliable flexible couplings for heavy-duty industrial applications. With a simple two-flange and rubber tire design, they offer high elasticity, excellent shock absorption, and maintenance-free operation. This guide explains how tire couplings work, their key advantages, and how to select the right LA Type model for your application.

1. What Is a Tire Coupling?

A tire coupling consists of:

• Two flanged hubs – precision-machined from 45# steel

• A high-elasticity rubber tire element – reinforced with embedded bolts

Torque is transmitted from the driving hub through the rubber tire to the driven hub. The tire element flexes to accommodate angular, parallel, and axial misalignment while absorbing shock and vibration.

💡 Tire couplings are designed for applications requiring high elasticity and excellent shock absorption in a maintenance-free package.

2. Key Advantages of Tire Couplings

3. LA Type vs Other Tire Coupling Types

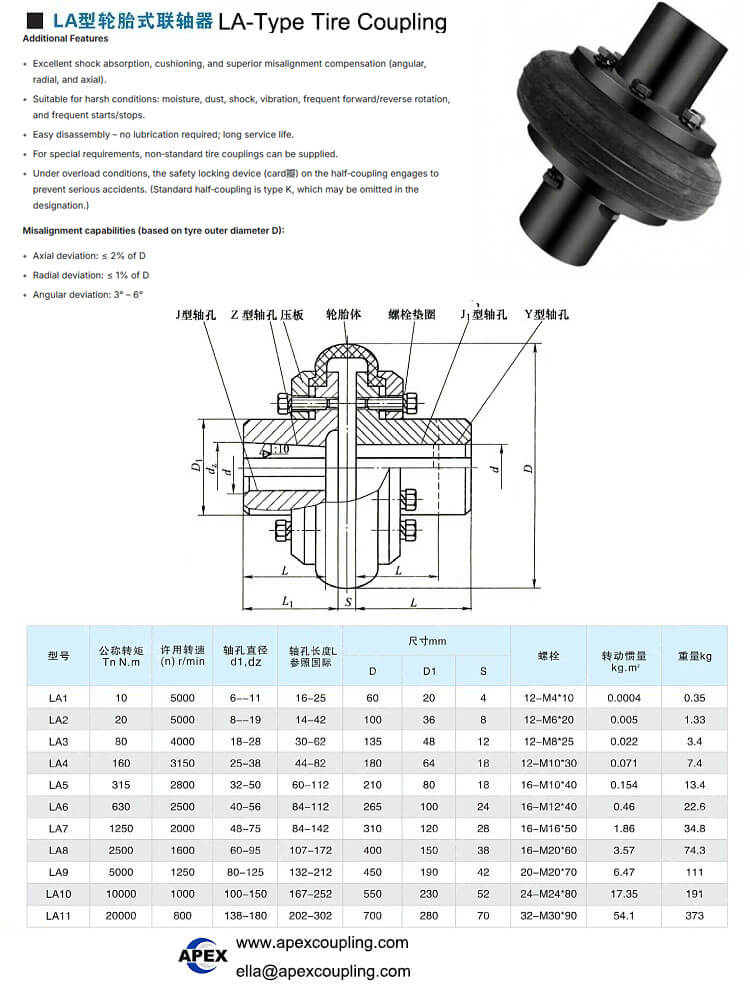

The LA Type tire coupling (LLA series) is specifically designed for metallurgical equipment and heavy industrial applications. Key characteristics include:

4. How to Select the Right LA Type Model

Step 1: Determine your torque requirement

• Calculate the torque your application requires

• Select a model with rated torque ≥ 1.5× your requirement

• LA Type series covers 10–20000 N·m

Step 2: Match shaft diameters

• Measure your shaft diameters

• Select a model with a bore range that accommodates your shafts (5–180 mm)

Step 3: Check speed requirements

• Verify the coupling’s maximum speed exceeds your operating speed

• LA Type series: 5000–800 RPM (varies by model)

Step 4: Consider environmental factors

• Temperature: LA Type operates -20°C to +80°C

• Dust/moisture: Suitable for dusty and wet environments

• Hazardous conditions: Anti-static and fire-resistant options available

Step 5: Evaluate misalignment

• The LA Type coupling compensates for angular (3°-6°), parallel (up to 6mm), and axial (up to 8mm) misalignment

• Higher misalignment capacity than many other coupling types

5. Applications Where Tire Couplings Excel

6. Installation & Maintenance Tips

1. Align shafts – Even with misalignment compensation, keep within recommended limits for optimal performance

2. Install hubs – Mount the flanged hubs on the driving and driven shafts

3. Install tire element – Bolt the rubber tire between the two hubs

4. Check bolt torque – Tighten bolts to the specified torque

5. No lubrication required – Tire coupling is maintenance-free

6. Visual inspection – Check tire condition periodically without disassembly

7. Replace tire – When worn, replace the tire element without axial movement of equipment

7. Real‑World Example – Steel Mill Upgrade

A steel mill was experiencing frequent coupling failures on their rolling mill drives. The existing couplings required regular lubrication and failed prematurely due to shock loads and misalignment.

They switched to Apex Coupling LA Type tire couplings (45# steel, high-elasticity rubber element, maintenance-free). Results:

• Service life extended – tire element withstood shock loads and misalignment

• Maintenance eliminated – no lubrication required

• Downtime reduced – tire replacement without moving equipment (1 hour vs. 4 hours)

• Shock absorption improved – rubber element protected connected equipment

8. Selection Checklist

• □

  Torque: 10–20000 N·m – select based on your requirement

• □

  Shaft diameter: 5–180 mm – match your shaft sizes (custom bores available)

• □

  Speed: Ensure model supports your operating speed

• □

  Temperature: -20°C to +80°C – verify operating range

• □

  Environment: Dusty, wet, or hazardous – consider anti-static/fire-resistant options

• □

  Misalignment: Angular (3°-6°), parallel (6mm), axial (8mm) – verify capacity

• □

  Maintenance: Maintenance-free – no lubrication

• □

  Application: Metallurgy, mining, conveyors, fans, pumps, compressors

9. Conclusion

The LA Type tire coupling from Apex Coupling offers the perfect combination of high elasticity, excellent shock absorption, and maintenance-free operation for demanding metallurgical and heavy industrial applications. With 45# steel hubs, high-elasticity rubber tire element, 10–20000 N·m torque capacity, and easy tire replacement, it delivers reliable, long-lasting performance in conveyors, fans, pumps, compressors, mining, and steel mills.

👉 Need a tire coupling for your application? Contact us with your model, bore, and torque requirements.
